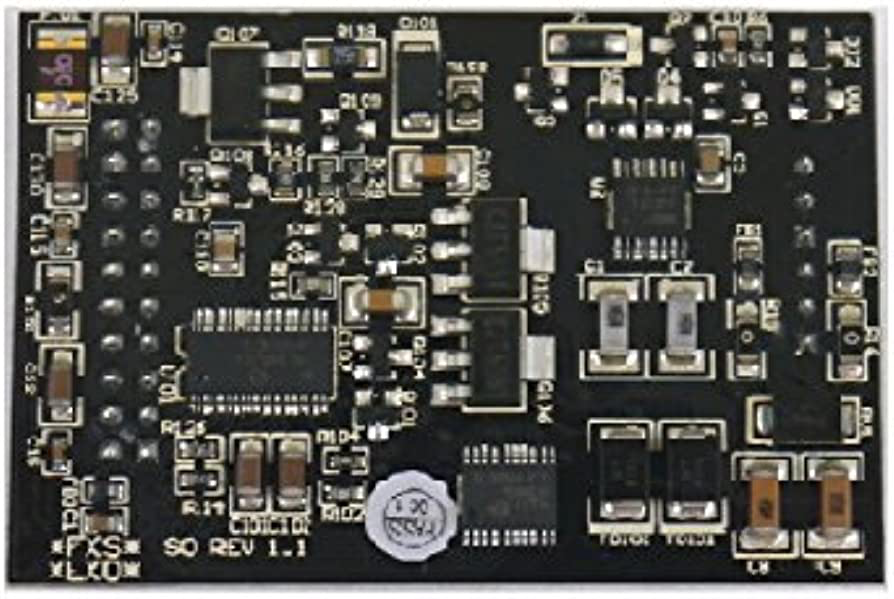

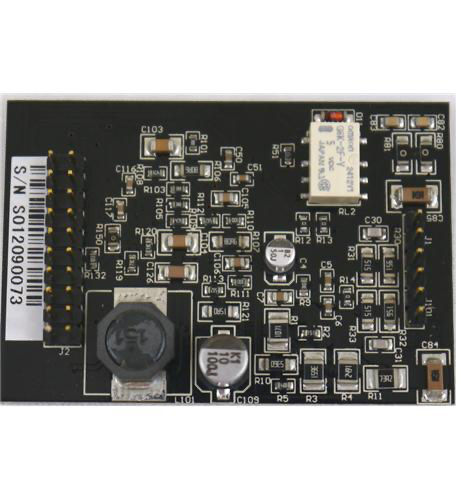

Yeastar SO Module, 1 FXS and 1 FXO Port with PSTN Fallback

Manufacturer part number
SO
EhubAmerica SKU
YST-SO
  • 1x FXS, 1x FXO RJ11

Works with: Yeastar S412, Yeastar S20, Yeastar S50, Yeastar P520, Yeastar P550, Yeastar P560 (with expansion board) and 3 more models Confirmed by the manufacturer


$127.78

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Yeastar SO is a telephony module with one FXS port and one FXO port for Yeastar PBXs. It connects one analog phone or fax and one PSTN line, and its PSTN fallback lets the analog phone make and receive calls over the PSTN line when the PBX is powered down.

The FXO port detects ringing from 15 to 50 Hz, and the FXS port rings at 25 Hz and 85 V. Echo cancellation is supported and a 600 ohm terminating impedance is available as an option.

Yeastar lists it for the S412, S20, S50, P520, P550, P560 and P570, and the module datasheet also lists the S100 and S300. The P560 and P570 need an expansion board such as the EX08.

  • Best for: keeping one analog phone working over a PSTN line during a PBX power outage.
  • System fit: Yeastar S412, S20, S50, S100, S300, P520, P550, P560 and P570 PBXs.
  • Important to know: the PSTN fallback works only between the module's own FXS and FXO ports and needs a live PSTN line.

Why teams choose it

Built for reliable networks

  • PSTN fallback

    calls continue over the PSTN line when the PBX is powered down.

  • Two port types

    one FXS for a phone or fax, one FXO for a PSTN line.

  • Line ready

    15 to 50 Hz ring detection on FXO, 85 V ringing on FXS.

  • Wide fit

    listed for S-Series and P-Series PBXs.

Specifications

Technical specifications

General
Brand Yeastar
Model SO
Device Type FXS and FXO telephony module
Interfaces
Ports 1x FXS, 1x FXO RJ11
Termination PSTN line; analog telephone or fax
Audio
FXO Ring Detection 15 to 50 Hz
FXS Ring Frequency 25 Hz
FXS Ring Voltage 85 V
Echo Cancellation Supported
Terminating Impedance 600 ohm, option
Performance
PSTN Fallback Calls over the FXO line when the system is powered down
Software and Management
Compatible PBXs S412, S20, S50, S100, S300, P520, P550, P560, P570
