Yeastar NeoGate TA100 1-Port FXS Analog Telephone Adapter, SIP, USB Powered

Manufacturer part number
TA100
EhubAmerica SKU
YST-TA100
  • 1x 10/100BASE-T
  • 1x FXS, 1x 10/100 LAN
  • 5 V DC via Micro USB

$73.20

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

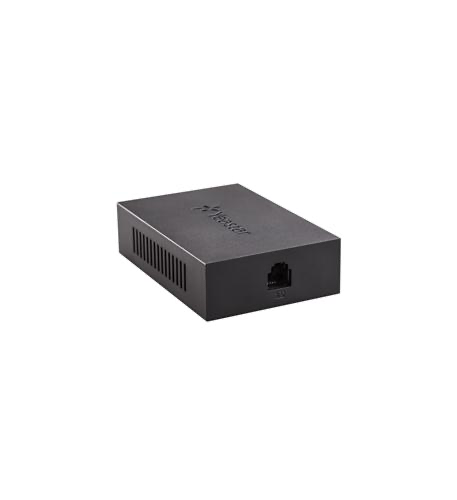

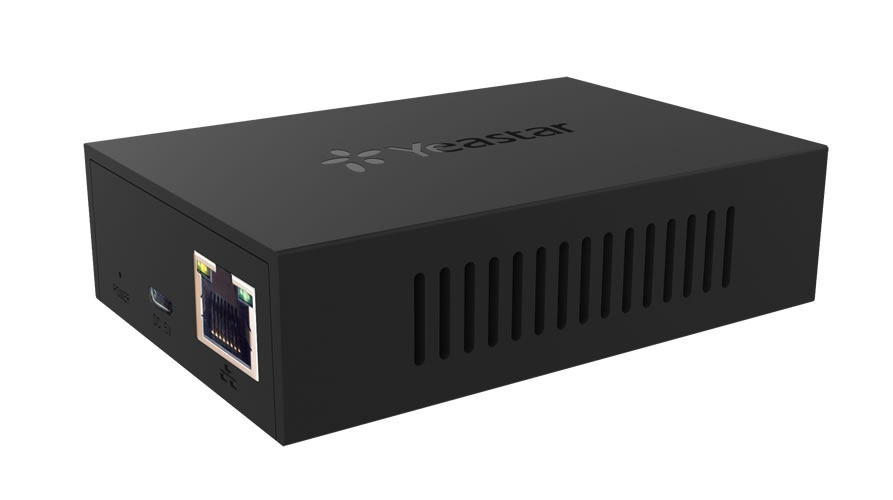

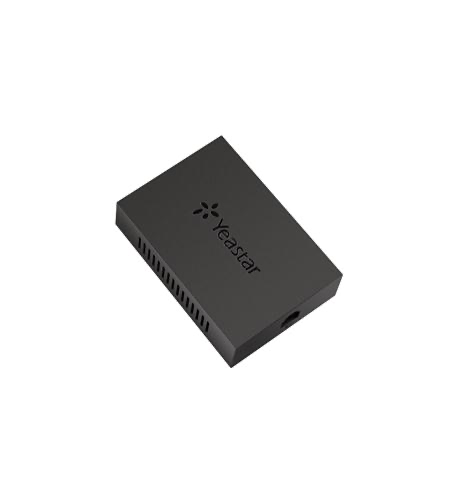

The Yeastar NeoGate TA100 is a compact analog telephone adapter (FXS gateway) that connects one analog phone or fax to a VoIP network over SIP. It has one FXS port, one 10/100BASE-T LAN port and a Micro USB port for power, in an 85 x 58 x 24 mm housing.

It supports SIP over UDP, TCP, TLS and SRTP with G.711 and G.729A/B codecs, ITU-T G.168 echo cancellation, caller ID (Bell 202, ETSI V23, NTT, DTMF) and call features such as 3-way conference, attended and blind transfer, hold, forward, call waiting, hotline and message waiting indicator. Setup is through a web interface or auto-provisioning over FTP, TFTP or HTTP, with DHCP, static IP, PPPoE, VLAN, OpenVPN and STUN on the network side. Power is 5 V DC, 1 A.

  • Best for: homes and small businesses moving an existing analog phone or fax onto a VoIP service or IP PBX.
  • System fit: SIP endpoint for IP PBXs and VoIP services, provisioned over FTP, TFTP or HTTP.
  • Important to know: the unit is powered by 5 V DC through its Micro USB port; it does not take PoE.

Why teams choose it

Built for reliable networks

  • Analog to VoIP

    one FXS port connects an existing analog phone or fax to SIP.

  • Call features

    3-way conference, transfer, hold, forward, call waiting and hotline.

  • Auto provisioning

    FTP, TFTP or HTTP, with web configuration.

  • Small footprint

    85 x 58 x 24 mm, powered over Micro USB.

Specifications

Technical specifications

General
Brand Yeastar
Model NeoGate TA100
Device Type Analog telephone adapter, FXS
Interfaces
Ports 1x FXS, 1x 10/100 LAN
FXS Ports 1x RJ11
Ethernet Ports 1x 10/100BASE-T
USB 1x Micro USB, power input
Signaling Loop Start, Kewl Start
Performance
Protocol SIP
Transport UDP, TCP, TLS, SRTP
Voice Codecs G.711 A/µ-law, G.729A/B
Echo Cancellation ITU-T G.168 LEC
DTMF RFC 2833, SIP INFO, in-band
Caller ID Bell 202, ETSI V23, NTT V23, DTMF-based
Call Features 3-way conference, transfer, hold, forward, call waiting, DND, hotline, MWI
Power
Power Method 5 V DC via Micro USB
DC Input 5 V, 1 A
Physical
Dimensions 85 x 58 x 24 mm
Environmental
Operating Temperature 0 to 40 °C (32 to 104 °F)
Storage Temperature -20 to 65 °C (-4 to 149 °F)
Operating Humidity 10 to 90%, non-condensing
Software and Management
Management Web (HTTP, HTTPS), SSH, voice menu, AMI
Provisioning FTP, TFTP, HTTP auto provision
Network Features DHCP, static IP, PPPoE, VLAN, OpenVPN
NAT Traversal Static NAT, STUN
Security Firewall, IP blacklist, attack alert
