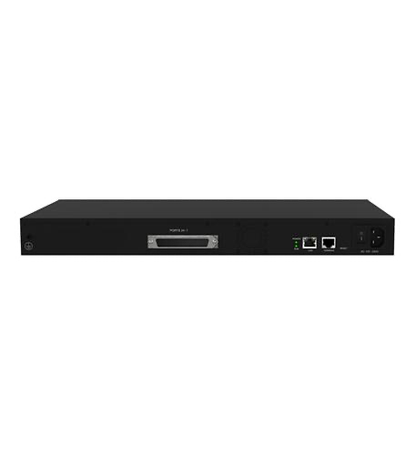

Yeastar NeoGate TA1610 16-Port FXO VoIP Gateway, SIP and IAX2, T.38 Fax

Manufacturer part number
TA1610
EhubAmerica SKU
YST-TA1610
  • 1x 10/100 Mbps RJ45
  • 16x FXO RJ11, 1x RJ21 50-pin

$1,074.36

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Yeastar NeoGate TA1610 is a 16-port FXO VoIP gateway that connects analog PSTN lines or PABX extension ports to SIP or IAX2 IP PBXs. It lets an IP phone system place and receive calls over existing analog trunks, and suits larger deployments that need many lines in one chassis.

The 16 FXO ports are on RJ11 jacks plus an RJ21 50-pin telco connector, with one 10/100 Mbps Ethernet port. FXO line handling includes programmable AC impedance, answer and hangup detection, caller ID detection and disconnect by busy tone or polarity reversal. Voice codecs include G.711, G.722, G.723, G.726, G.729A, GSM and ADPCM with ITU-T G.168 echo cancellation at 8 to 128 ms, and faxes pass by T.38 or T.30 pass-through.

The 440 x 250 x 44 mm unit sits on a desk or in a rack and is managed through a web interface, with auto provisioning from Yeastar MyPBX.

  • Best for: bringing up to 16 analog PSTN lines or PABX extensions into an IP PBX.
  • System fit: SIP RFC3261 and IAX2 IP PBXs; Yeastar MyPBX auto provisioning; analog PSTN lines and PABX extension ports.
  • Important to know: it provides FXO ports for incoming analog lines; analog phones need an FXS gateway such as the TA1600.

Why teams choose it

Built for reliable networks

  • 16 PSTN lines on IP

    connects analog trunks to a SIP or IAX2 PBX.

  • Line handling

    programmable impedance, answer, hangup and caller ID detection.

  • Fax support

    T.38 and T.30 pass-through.

  • Structured cabling

    RJ21 50-pin telco connector alongside RJ11 jacks.

Specifications

Technical specifications

General
Brand Yeastar
Model TA1610
Series NeoGate TA analog VoIP gateways
Device Type 16-port FXO analog VoIP gateway
Mounting Desktop or rack
Interfaces
Ports 16x FXO RJ11, 1x RJ21 50-pin
Ethernet Ports 1x 10/100 Mbps RJ45
Audio
Voice Codecs G.711 A-law and µ-law, G.722, G.723, G.726, G.729A, GSM, ADPCM
Echo Cancellation ITU-T G.168, 8, 16, 32, 64 or 128 ms
Fax T.38 and T.30 pass-through
Caller ID BELL202, ETSI V23, NTT V23-Japan, DTMF-based
FXO Features Programmable AC impedance, answer detection, hangup detection, caller ID detection
Disconnect Methods Busy tone, polarity reversal
Physical
Dimensions 440 x 250 x 44 mm
Environmental
Operating Temperature 0 to 40 °C (32 to 104 °F)
Humidity 10 to 90% non-condensing
Software and Management
Protocols SIP, IAX2
Security Firewall, IP blacklist, attack alert, HTTPS, SSH, OpenVPN, VLAN, RADIUS
Management Web GUI, auto provisioning with MyPBX, backup and restore, firmware upgrade by HTTP or TFTP
