Zyxel · Wireless Access Points

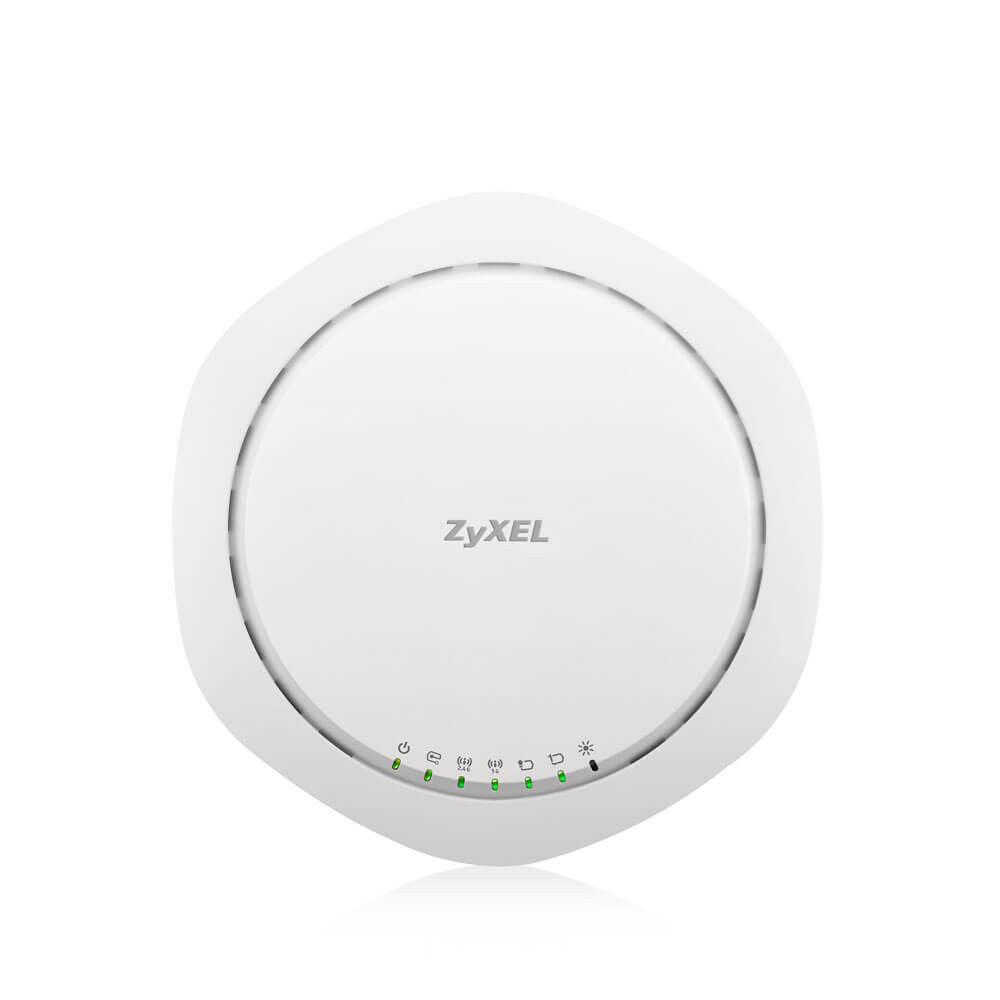

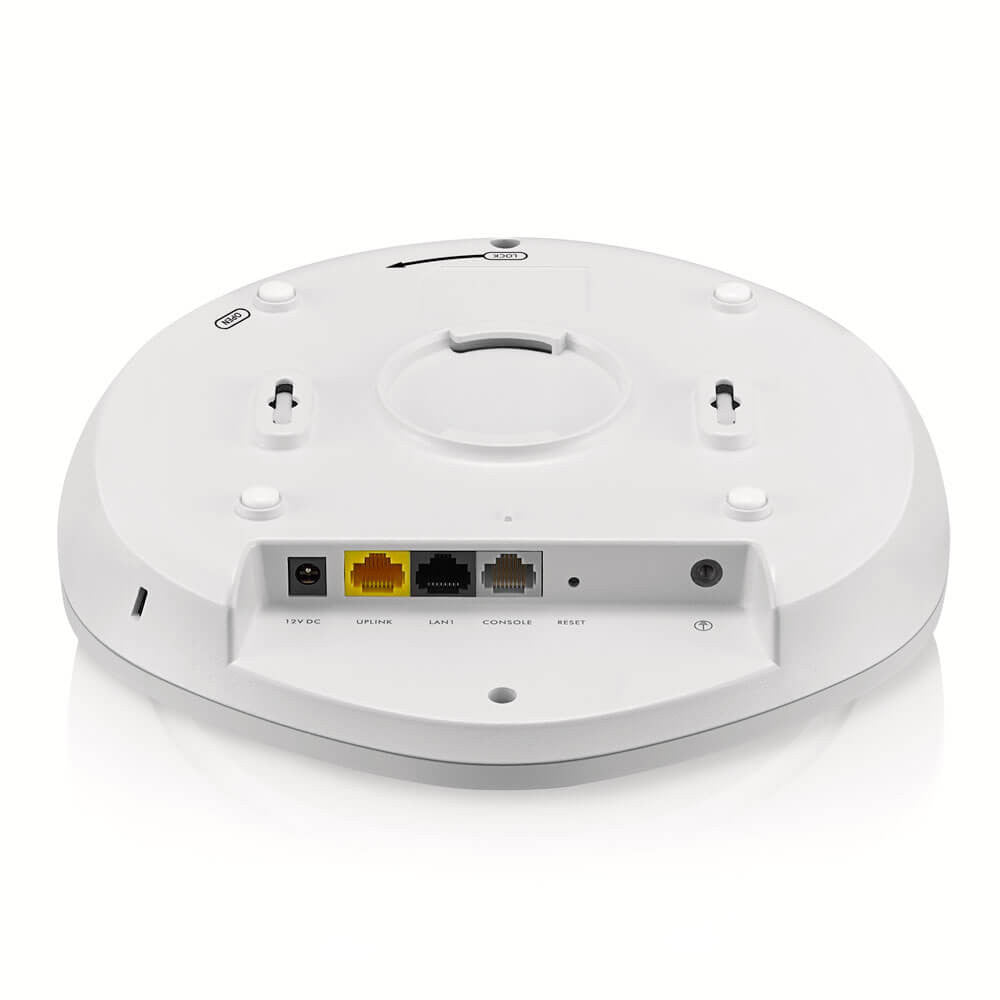

Zyxel WAC6502D-S Dual Radio 2x2 MIMO Wireless Access Point 802.11ac
- EhubAmerica SKU
- WAC6502D-S
$441.80
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Zyxel WAC6502D-S Dual Radio Smart Antenna 2x2 Access Point
PRODUCT TYPE
Wireless Access Points
KEY FEATURES
- Wireless frequency: 2.4 and 5 GHz
- Radio: 2
- Frequency band: 2.4 GHz (IEEE 802.11 b/g/n)
- USA (FCC): 2.412 to 2.462 GHz
- Europe (ETSI): 2.412 to 2.472 GHz
- Taiwan (TW): 2.412 to 2.462 GHz
- 802.11n/ac premium features: 2x2 Multiple-Input Multiple-Output (MIMO) with three spatial streams
- Maximal Ratio Combining(MRC)
- 20-, 40- and 80-MHz channels
- Packet aggregation:A-MPDU (Tx/Rx), A-MSDU(Tx/Rx)
- Cyclic Delay Diversity (CSD)support
- Maximum Likelihood Demodulation (MLD) support
- Low Density Parity Check(LDPC) support
- Conducted typical transmit output power: FCC 11b/g: 28
- FCC 11g/n: 28
- FCC 11a: 28
- FCC 11n/a (ac): 28
- EU 11b/g: 14
TECHNICAL SPECIFICATIONS
- Brand: Zyxel
- Model: WAC6502D-S
- Product Type: Wireless Access Points
- Wireless frequency: 2.4 and 5 GHz
- Radio: 2
- Frequency band: 2.4 GHz (IEEE 802.11 b/g/n)
- USA (FCC): 2.412 to 2.462 GHz
- Europe (ETSI): 2.412 to 2.472 GHz
- Taiwan (TW): 2.412 to 2.462 GHz
- 802.11n/ac premium features: 2x2 Multiple-Input Multiple-Output (MIMO) with three spatial streams
- Maximal Ratio Combining(MRC)
- 20-, 40- and 80-MHz channels
- Packet aggregation:A-MPDU (Tx/Rx), A-MSDU(Tx/Rx)
- Cyclic Delay Diversity (CSD)support
- Maximum Likelihood Demodulation (MLD) support
- Low Density Parity Check(LDPC) support
- Conducted typical transmit output power: FCC 11b/g: 28
- FCC 11g/n: 28
- FCC 11a: 28
- FCC 11n/a (ac): 28
- EU 11b/g: 14
- EU 11g/n: 14
- EU 11a: 22
- EU 11n/a (ac) : 22
- Number of antenna: 4 embedded smart antenna
- Antenna gain: 4 dBi @2.4 GHz
- 6 dBi @5 GHz
- Support data rate: 802.11a/g: 6, 9, 12, 18, 24, 36,48, and 54 Mbps
- 802.11b: 1, 2, 5.5 and 11 Mbps
- 802.11n: up to 300 Mbps in MCS23 (40 MHz)
- 802.11ac: up to 866 Mbps in MCS9 (80 MHz)
- Receive sensitivity: Min. Rx sensitivity up to -100 dBm
INTENDED USE / APPLICATIONS
- Outdoor or indoor wireless networking, as specified
- Point-to-point or point-to-multipoint deployments where compatible
- Professional network installations
Specifications
Technical specifications
| Wireless / RF | |
|---|---|
| Wireless Frequency | 2.4 GHz and 5 GHz |
| Radio Configuration | 2 (Dual Radio) |
| MIMO | 2x2 with three spatial streams |
| Frequency Band (2.4 GHz) | IEEE 802.11 b/g/n |
| Frequency Band (FCC - 2.4 GHz) | 2.412 to 2.462 GHz |
| Frequency Band (ETSI - 2.4 GHz) | 2.412 to 2.472 GHz |
| Frequency Band (Taiwan - 2.4 GHz) | 2.412 to 2.462 GHz |
| Antenna Configuration | 4 embedded smart antenna |
| Antenna Gain (2.4 GHz) | 4 dBi |
| Antenna Gain (5 GHz) | 6 dBi |
| 802.11a/g Data Rate | 6, 9, 12, 18, 24, 36, 48, and 54 Mbps |
| 802.11b Data Rate | 1, 2, 5.5 and 11 Mbps |
| 802.11n Data Rate | Up to 300 Mbps (MCS23, 40 MHz) |
| 802.11ac Data Rate | Up to 866 Mbps (MCS9, 80 MHz) |
| Channel Bandwidth Support | 20, 40, and 80 MHz |
| Receive Sensitivity | Min. -100 dBm |
| Transmit Output Power (FCC 11b/g) | 28 dBm |
| Transmit Output Power (FCC 11g/n) | 28 dBm |
| Transmit Output Power (FCC 11a) | 28 dBm |
| Transmit Output Power (FCC 11n/a/ac) | 28 dBm |
| Transmit Output Power (EU 11b/g) | 14 dBm |
| Transmit Output Power (EU 11g/n) | 14 dBm |
| Transmit Output Power (EU 11a) | 22 dBm |
| Transmit Output Power (EU 11n/a/ac) | 22 dBm |
| 802.11n/ac Features | Packet aggregation (A-MPDU Tx/Rx, A-MSDU Tx/Rx), Maximal Ratio Combining (MRC), Cyclic Delay Diversity (CDD) support, Maximum Likelihood Demodulation (MLD) support, Low Density Parity Check (LDPC) support |
| Networking & Connectivity | |
| Gigabit LAN Ports | 2 (10/100/1000M) |
