Bea 10LZR-H100KIT-19327 Laser Sensor Access Control Kit 9.6m Range NEMA 4
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
- Laser Technology.
- Detection mode: Movement and presence.
- Detection range: 9.6 x 9.6 m.
- Operating voltage: 12 to 24 VDC.
- Maximum consumption 5 W.
- Maximum current 1.8 A.
- Time of Flight technology.
- NEMA 4 protection rating.
- Activation and safety signals.
Applications - Vehicle barriers, swing or sliding gates and rolling shutters

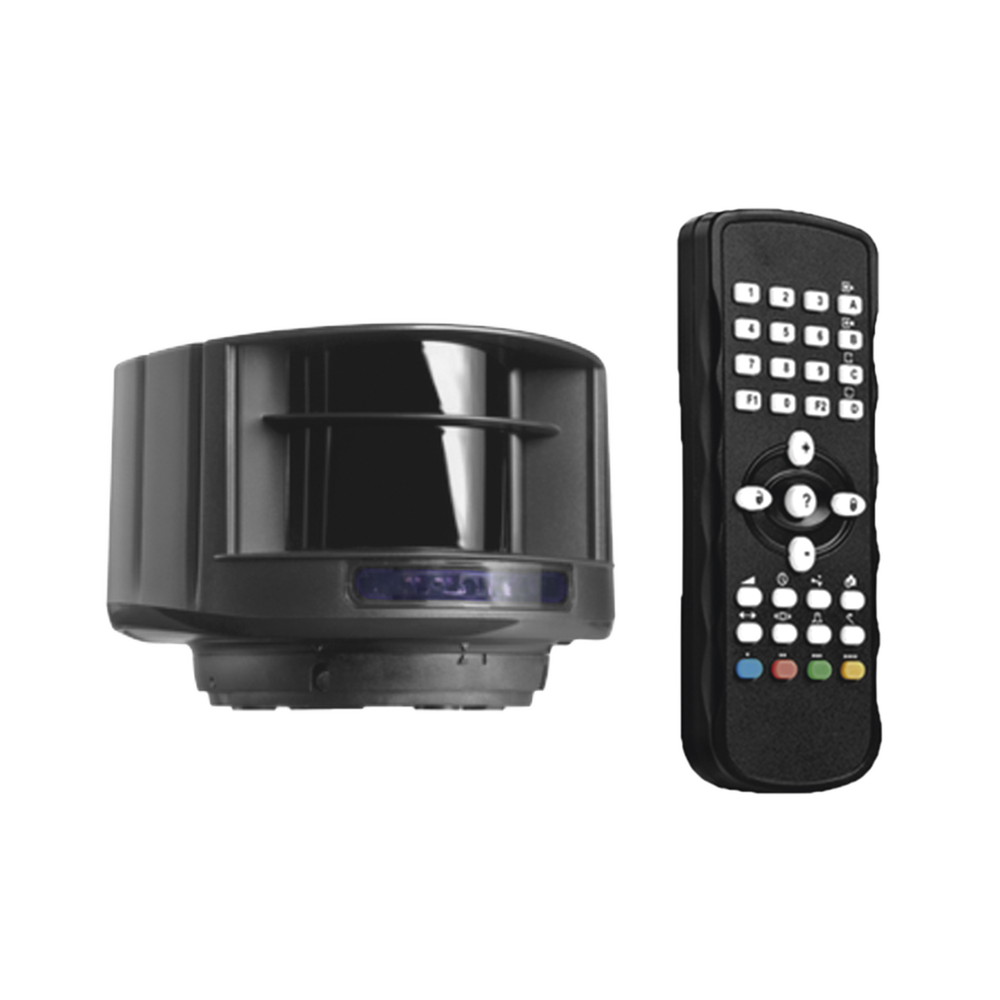

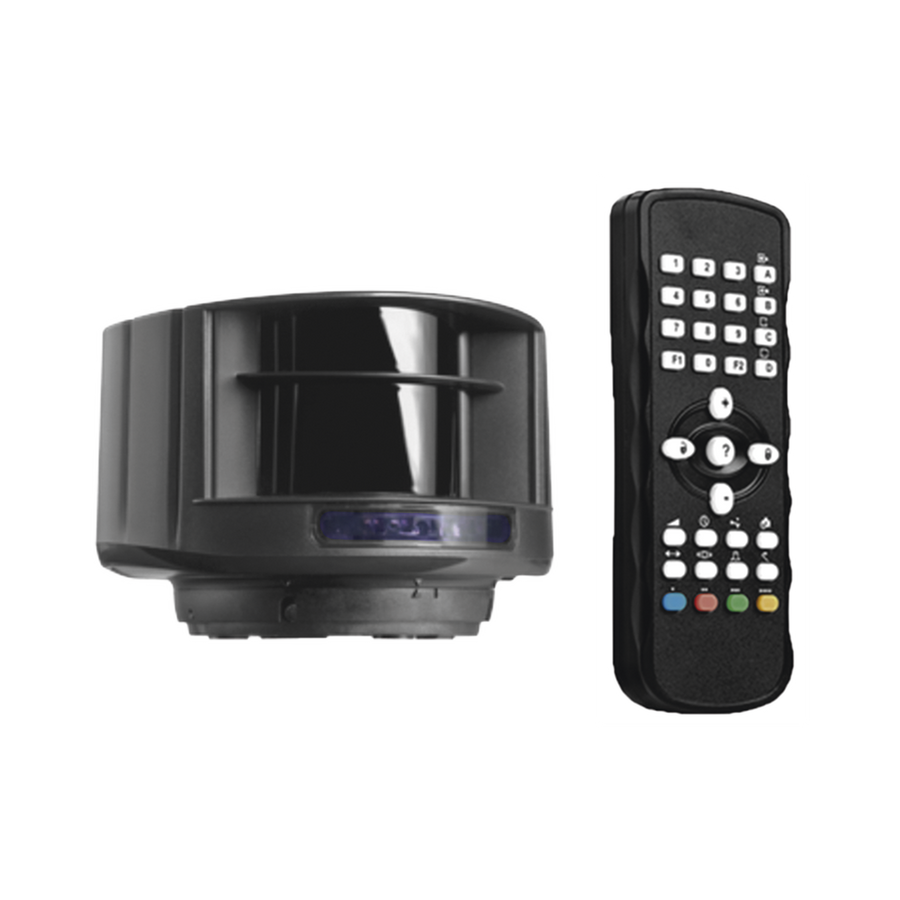

What does the kit contain?
- Sensor 10-LZR-H100, laser sensor.
- Remote control for configuration model 10-REMOTE
What do I need to quote?
- Mounting bracket for barrier or pedestal (Not included). Facilitates installation. Model 10-LBA
- 12 VDC, 1 A regulated power supply for equipment power (Not included). Recommended model: PL-DC-1000 or equivalent.
Optional accessory to quote
- Pedestal-type bollard to mount the 10-LZRH100 sensor (Not included). Model
The BEA 10-LZR-H100 sensor is a sensor based on laser Time of Flight technology. It is designed for applications in doors, gates and vehicle barriers.
This solution provides 4 laser curtains, which offer a three-dimensional detection zone for precise object detection. These laser curtains are highly configurable and can be adjusted for opening, safety and presence detection functions in vehicle sensing applications.
The 10-LZR-H100 is a safe and highly competitive alternative for places where it is not possible to install magnetic loops, due to restrictions applied by the end user or inconveniences that limit the installation area.
The sensor is encapsulated in a NEMA 4 cabinet, ensuring excellent performance in outdoor applications.
Key Features
- Time of Flight Laser Technology for Precise 3D Object Detection
- Four Configurable Laser Curtains for Safety and Presence Sensing
- 12-24 VDC Operation With Maximum 5 W Power Consumption
- NEMA 4 Weatherproof Enclosure for Harsh Outdoor Environments
- Magnetic Loop Alternative for Restricted Installation Applications
- Remote Configuration Capability for Easy Setup and Adjustment
