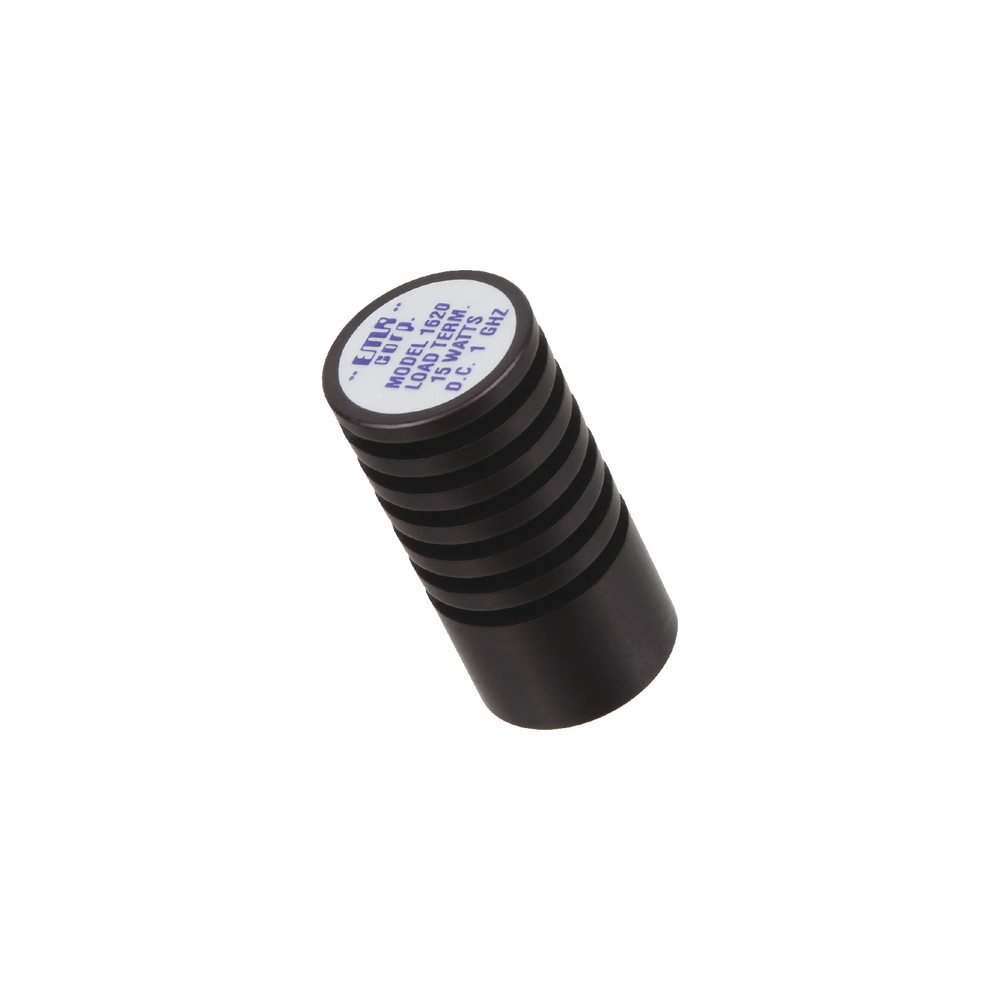

Emr Corporation 1620 Dummy Load of 50 Ohm, 15 Watt, with N Male connector.
Product identifier
SKU
1620
$78.25
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Dummy Load of 50 Ohm, 15 Watt, with N Male connector.
- Frequency Band: 0 – 1000 MHz.
- Input Power (Max.): 15 W.
- Return Loss (Min.): 26 dB
- Impedance (Nom.): 50 Ohm.
- RF Connector Type: N Male.
- Finish: Black Anodized.
- Heat Sink: Aluminum.
- Overall Size (H x W): 1.25" x 0.75".
- Net Weight: 0.05 lbs.
- Ship Weight: 0.5 lbs.
- Operating Temp. Range: -30ºC to +60ºC.
- Operating Humidity Range: 90% Non-condensing.
*Ask for Delivery Time.
Key Features
- Stable 50 Ohm Impedance for All RF Applications
- Maximum 15 Watt Power Handling Capability
- Excellent 26 dB Minimum Return Loss Performance
- Broad Frequency Range From DC to 1 GHz
- N Male RF Connector With Nickel-Plated Brass
- Efficient Aluminum Heat Sink for Thermal Dissipation
