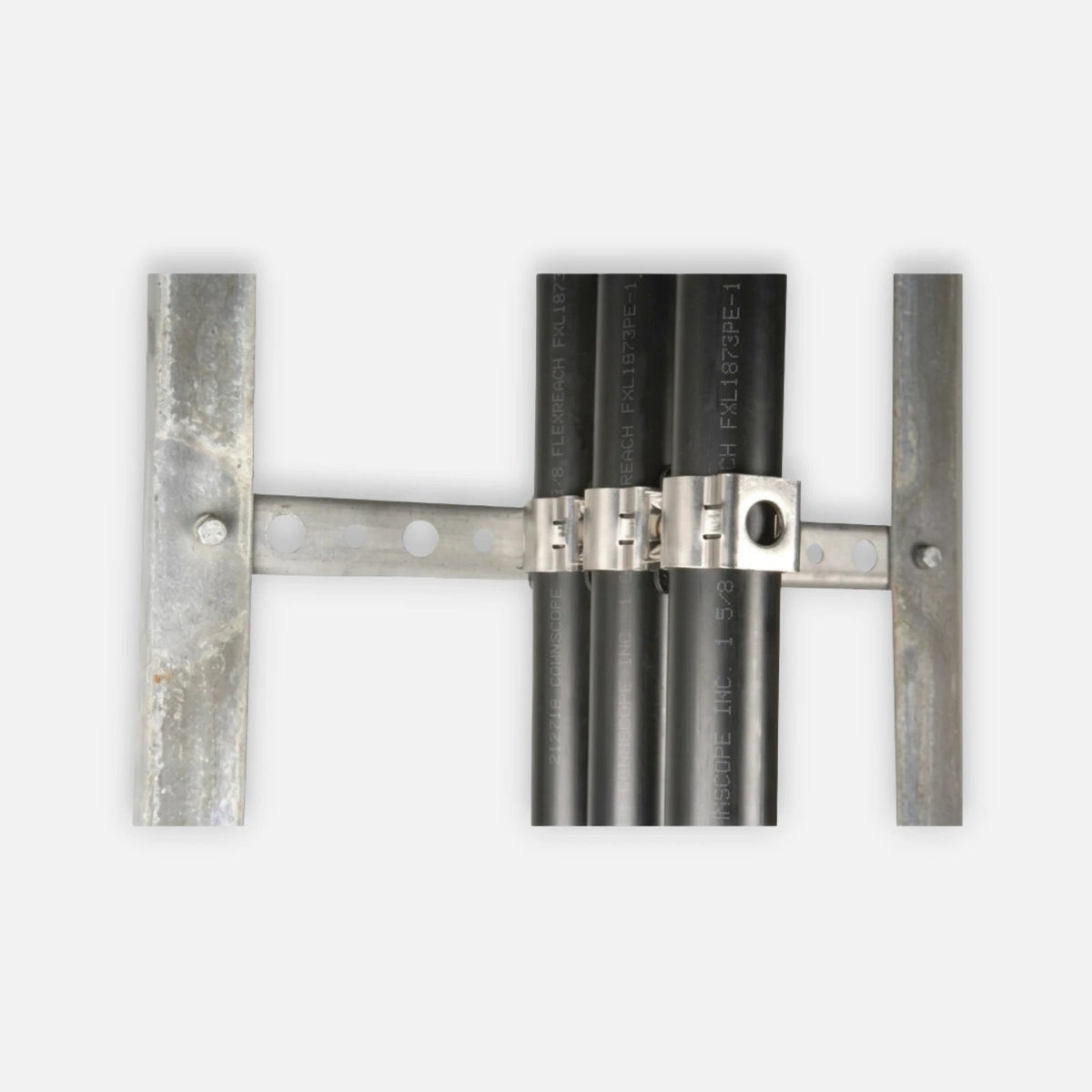

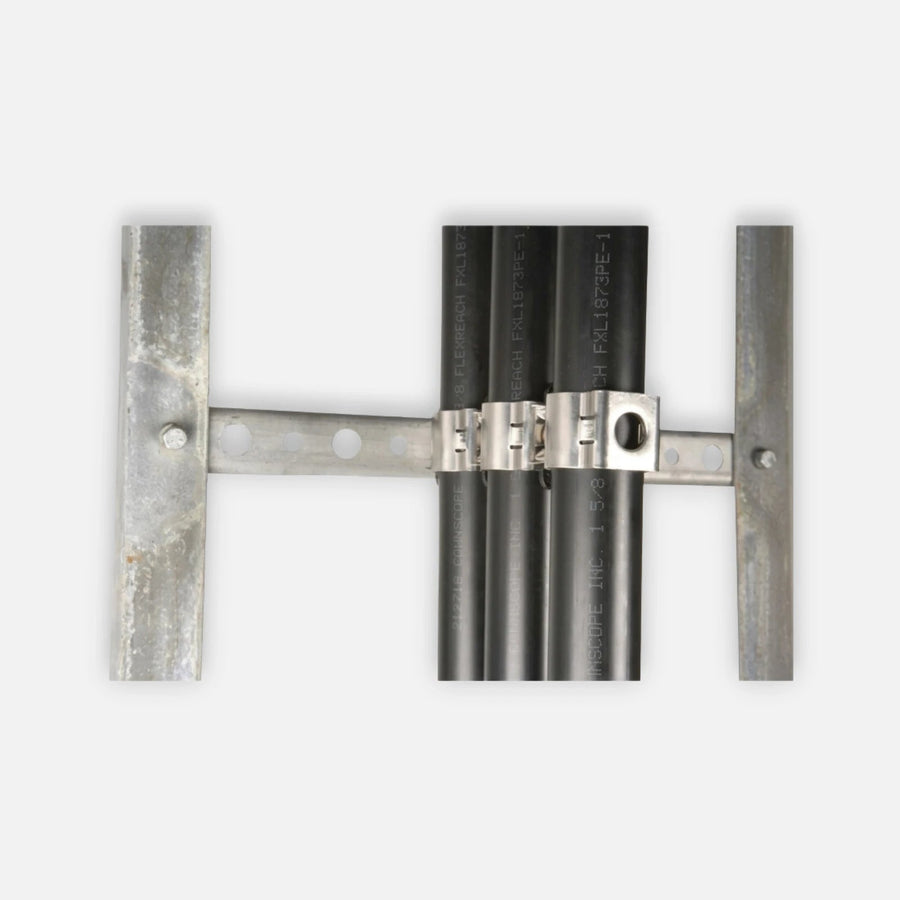

Andrew 206706-1 SnapStak Hanger Kit for 1/2" Coaxial Cable PKG QTY 10

The CommScope Andrew 206706-1 SnapStak Hanger Kit provides a purpose-built mounting solution for 1/2-inch coaxial cable on 3/4-inch drilled cable ladders. Fabricated from stainless steel with a corrosion resistance rating of 500 or more hours of salt spray chamber exposure, these snap-in hangers are engineered for the demanding environmental conditions common in wireless tower, rooftop, and telecommunications infrastructure installations. Each hanger supports a single cable within a compatible outside diameter range of 0.540 to 0.640 inches, and hangers can be stacked up to three units high on the same ladder rung to accommodate multi-cable runs without additional hardware. The snap-in retention mechanism simplifies field installation, reducing labor time during initial deployment and future cable additions. This kit contains 10 hangers.

Key features & benefits

• Snap-In Retention Design — The tool-free snap-in mechanism allows technicians to secure coaxial cable to the ladder rung quickly and consistently, reducing installation time during both initial build-outs and incremental cable additions.
• Stainless Steel Construction — Full stainless steel fabrication delivers structural integrity and long-term durability in outdoor, rooftop, and other corrosive environments where galvanic degradation is a concern.
• Verified Corrosion Resistance — Rated for 500 or more hours of salt spray chamber exposure, making these hangers suitable for coastal, industrial, and high-humidity deployment scenarios.
• Vibration Survival Rated — Tested to survive 4 or more hours at resonant frequency, supporting reliable cable retention in sites subject to mechanical vibration such as tower structures or rooftop mechanical rooms.
• SnapStak Stacking Capability — A maximum stack height of 3 allows multiple hangers to be layered on a single ladder position, enabling organized multi-cable routing without increasing ladder rung consumption.
• Defined Cable Size Compatibility — Designed for a nominal 1/2-inch cable with a compatible outside diameter range of 0.540 to 0.640 inches, ensuring a secure, consistent fit across standard 1/2-inch coaxial cable types used in telecom infrastructure.
• Wide Operating Temperature Range — Rated from -40 °C to +85 °C (-40 °F to +185 °F), supporting reliable performance across extreme cold and heat environments without material compromise.
• Environmental Load Rating — Engineered to support double the cable weight, providing a safety margin for ice loading, incidental mechanical contact, and other real-world cable stress conditions.
• 10-Piece Kit Packaging — Packaged in quantities of 10 per kit, providing a practical unit of measure for project estimating, inventory management, and site stocking.
