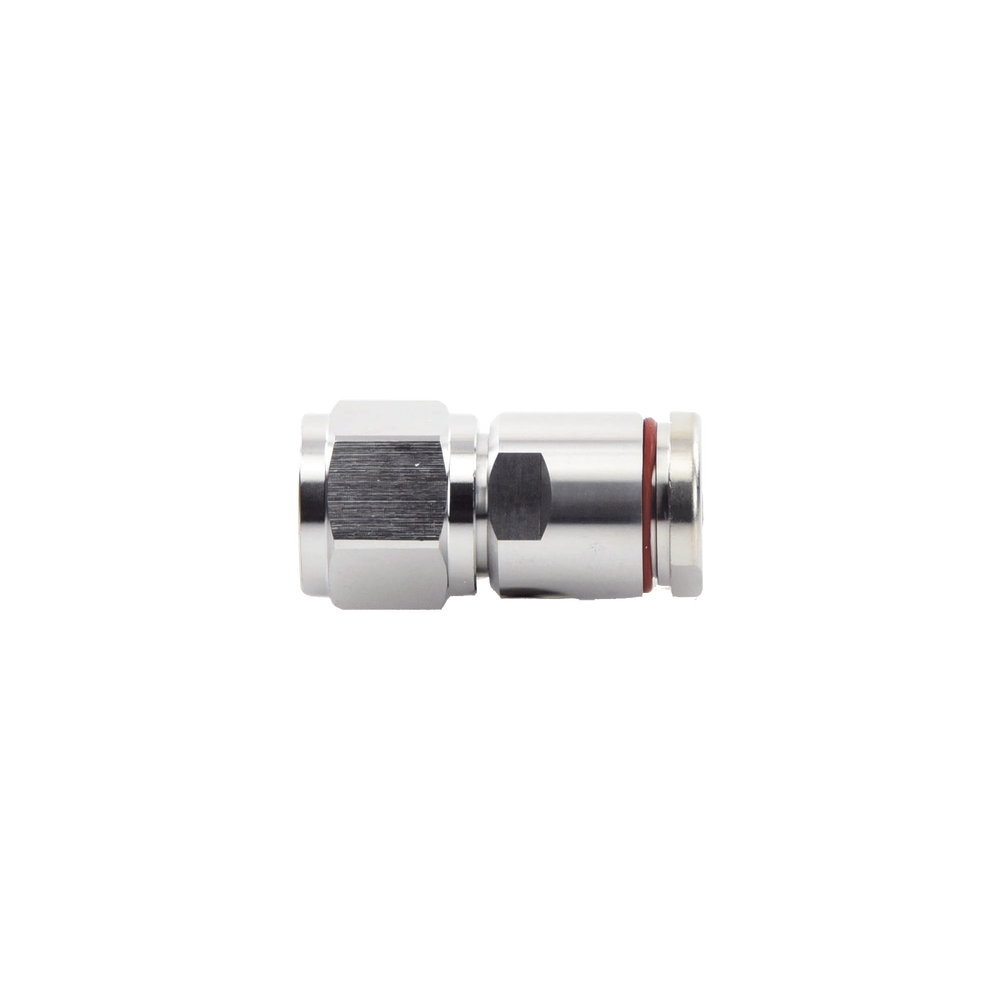

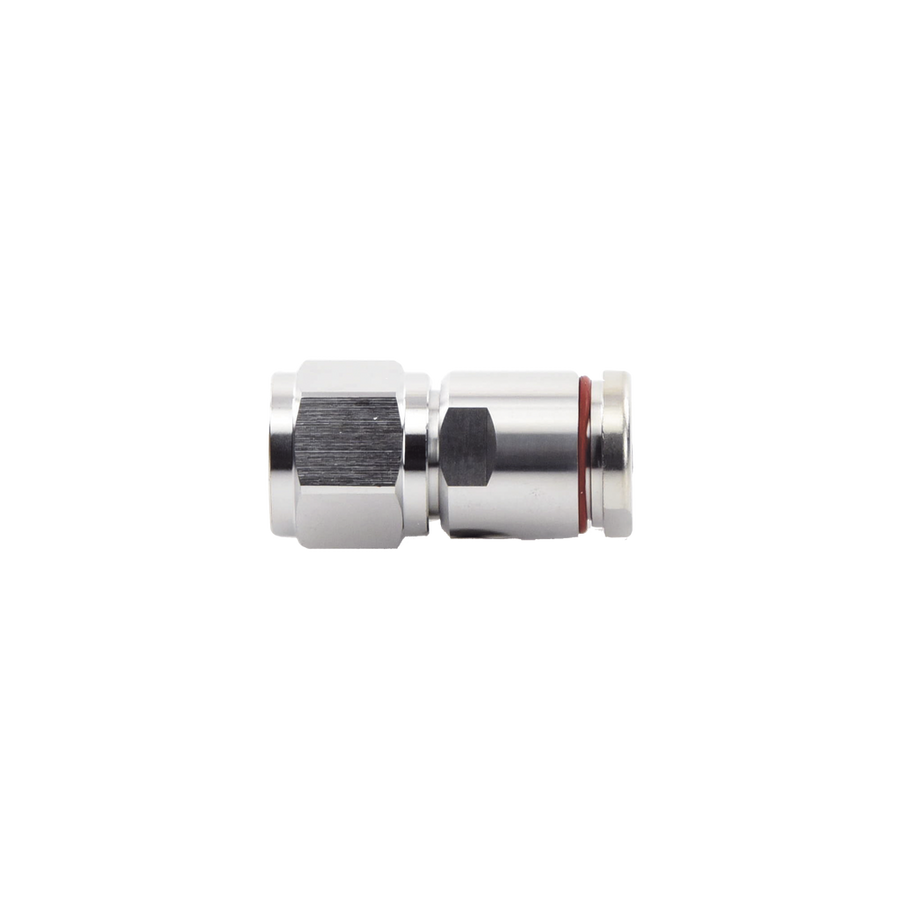

CommScope 400-BPNM-C Type N Male Coaxial RF Connector 6GHz IP68
Product identifier
SKU
400-BPNM-C
$21.57
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
| General Specifications | |
| Interface | N Male |
| Body Style | Straight |
| Brand | CNT® |
| Electrical Specifications | |
| Operating Frequency Band | 0 – 6000 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| RF Operating Voltage, maximum (vrms) | 707.00 V |
| dc Test Voltage | 2500 V |
| Outer Contact Resistance, maximum | 0.25 mOhm |
| Inner Contact Resistance, maximum | 1.00 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Peak Power, maximum | 10.00 kW |
| Insertion Loss, typical | 0.05 dB |
Key Features
- Designed Specifically for CNT-400, 9913, and RG8/U Coaxial Cables
- Trimetal Bronze Body With Silver-Plated Center Contact
- IP68 Waterproof Rating for Harsh Outdoor Environments
- Low Insertion Loss of Only 0.05 dB Typical
- Operating Temperature Range From -40°F to 185°F
- 500 Mating Cycles Durability for Long-Term Reliability
