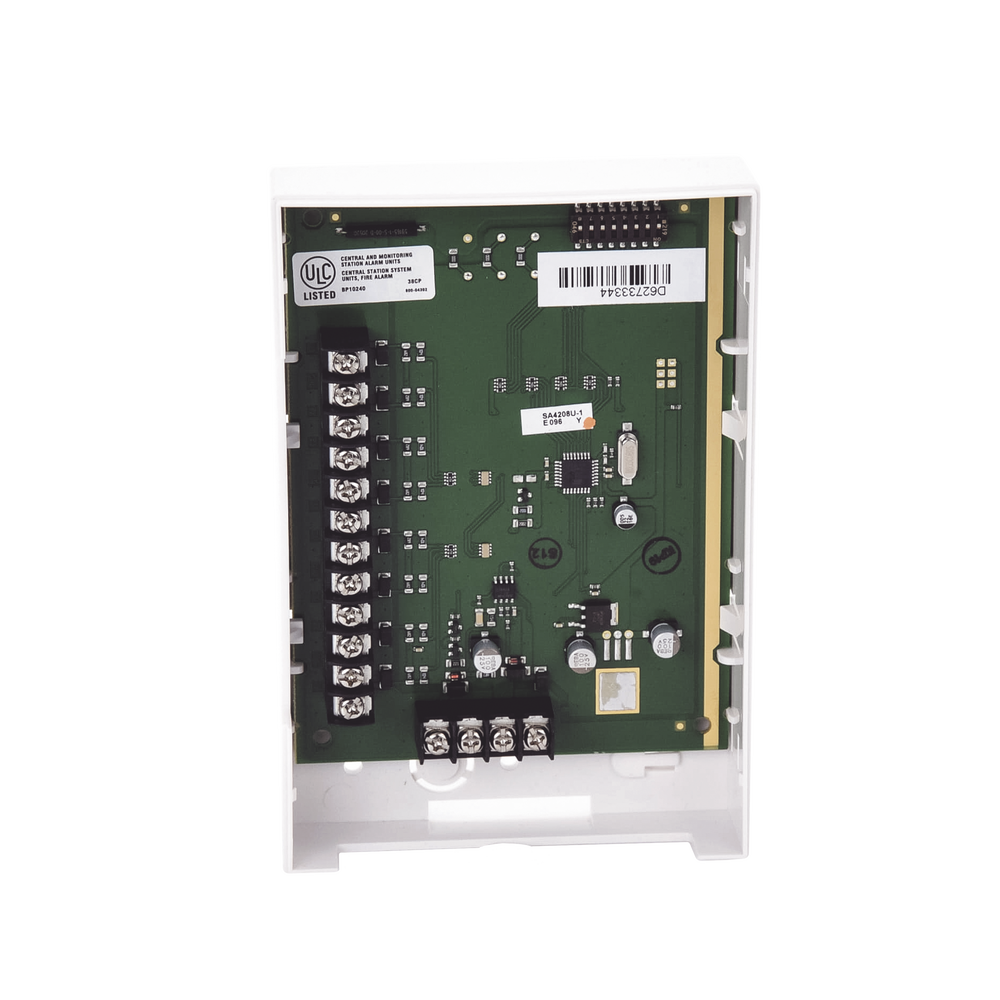

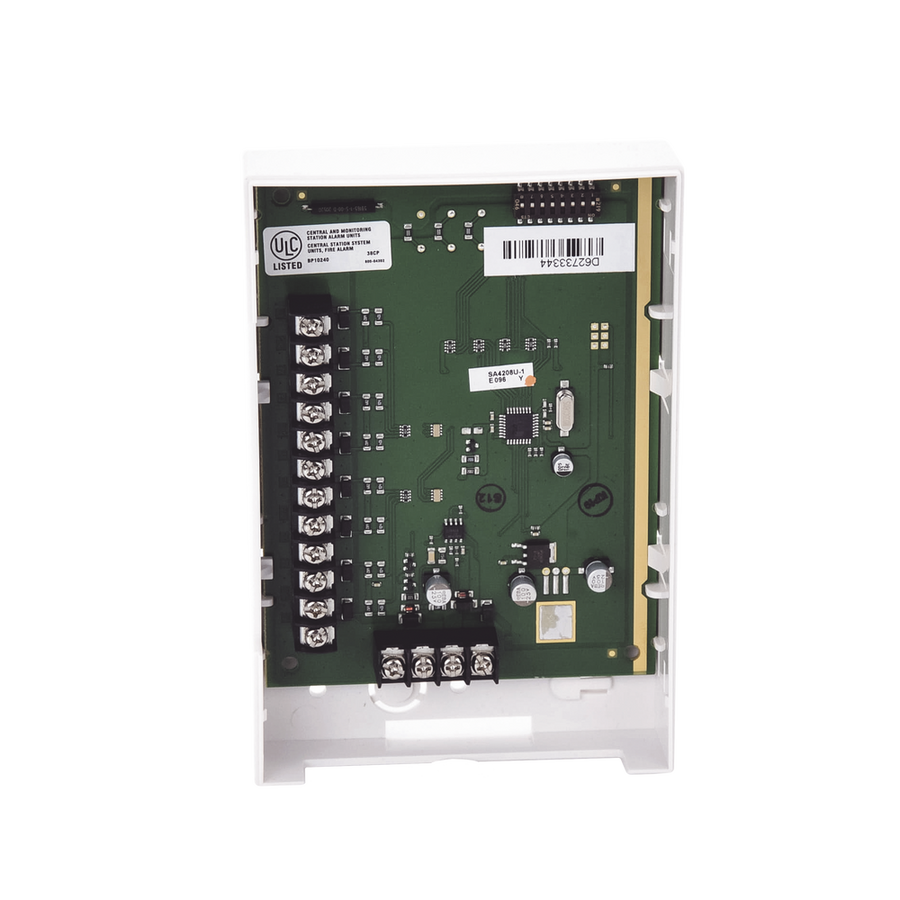

Honeywell Home Resideo 4208U Universal V-Plex Eight Zone Expander

DESCRIPTION
Universal Eight Zone Remote Point Module
The 4208U Remote Point Module (RPM) is an eight-zone expander that allows the use of available expansion zones on ADEMCO controls that support V-Plex polling loop devices.

FEATURES
The ADEMCO 4208U is a V-Plex® eight-zone expander for use with ADEMCO controls that support V-Plex (polling loop) devices.

Characteristics of this device include:
• Can be optionally powered from the control panel aux. power supply to reduce the amount of current draw from the polling loop. NOTE: The 4208U cannot be used with an external power supply for commercial fire applications.
• Uniquely identifies 8 EOLR supervised zones (all zones use 10k resistors, supplied). • DIP Switches can be used to set zone numbers or serial numbers.
• When used in the serial number mode, each serial number in the selected group can be assigned to any zone number.
• Loops A & B can be programmed for fast (10msec) response.
• Tamper protected.

-Adds a max of 8 zones with resistance of end of line supervision.
-It connects with a pair of cables at the smart output (Vplex).
-Addressing technology by dip switch or by serial number.
-Compatible only with the panels that use Vplex technology.

Key Features

• Converts up to 8 conventional zones to V-PLEX technology
• End of line resistor supervision for advanced monitoring
• DIP switch or serial number addressing options
• Compatible exclusively with V-PLEX panel systems
• Connects via V-PLEX intelligent output pair
• Professional integration solution for fire detection systems
