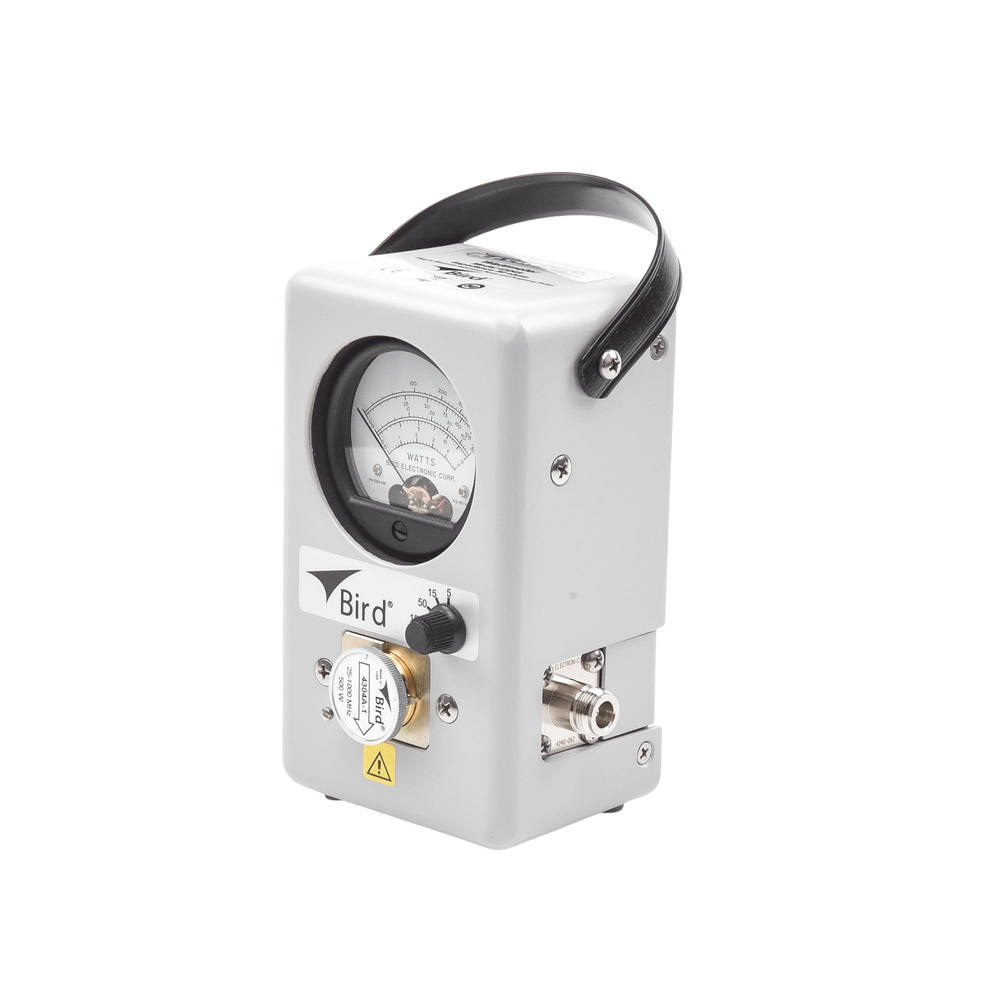

Bird 4304A Fixed 25-1000 MHz 5-500W RF Wattmeter
Product identifier
SKU
4304A
$2,050.50
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Wide Bandwith Directional Thrueline Wattmeter​.
The 4304A is an insertion-type RF wattmeter, designed to measure RF power levels and load match in 50-ohm coaxial transmission lines (VSWR) using just one element, already included.
4304A, Fixed 25-1000 MHz 5-500 Watt Element, Wattmeter uses the basic construction of the Model 43 and modifies it with a special broadband element and range switch for general purpose RF power measurement without the hassle of carrying a set of individual elements.
- Fixed 25-1000 MHz, 5-500W, Portable Wattmeter
- Uses a Single Broadband Element with a 5-position Range Switch
- Same rugged metal housing as the Model 43
- Quick Change (QC) connectors to minimize the need for adaptors when making critical measurement
PRODUCT SPECIFICATIONS:
| Item No | 4304A |
| Item Name | Fixed 25-1000 MHz 5-500 Watt Element, Wattmeter |
| Power Range | 5, 15, 50, 150, 500 W, with no scale limitations except power limited to 150 W from 800-1000 MHz |
| Frequency Range | 25 MHz - 1.0 GHz |
| Insertion VSWR | 25-521 MHz, 1.05 max. (with UHF female conn.) 512-1000 MHz, 1.07 max. |
| Accuracy | 25-100 MHz, ± 7% of full scale, using correction charts. 100-512 MHz, ± 6 of full scale, no correction needed. 512-1000 MHz, ± 7% of full scale, no correction needed. |
| Insertion Loss | 25-512 MHz, 0.10 dB max. (with UHF female conn._ 512-1000 MHz range, 0.13 dB max. |
| Connectors | QC Type (Female N normally supplied) |
| Finish | Light Gray Powder Coat |
| Dimensions | (H x W x D) 6-7/8" x 5-1/8" x 3-5/8", including connectors 175 x 130 x 92 mm |
| Weight | 3 lbs. (1.4 kg) |
| Note | (1) 4304A-1 Element supplied with the unit |
Key Features
- Broadband Operation From 25 MHz to 1000 MHz Frequency Range
- Five Selectable Power Ranges: 5W, 15W, 50W, 150W, and 500W
- High Accuracy of 6% Full Scale Across 100-512 MHz Range
- Low Insertion Loss of 0.10 dB Maximum for Minimal Signal Impact
- Excellent VSWR Performance of 1.05 Maximum at 25-512 MHz
- Compact Design With Standard UHF Female Connectors Included
