GENESIS

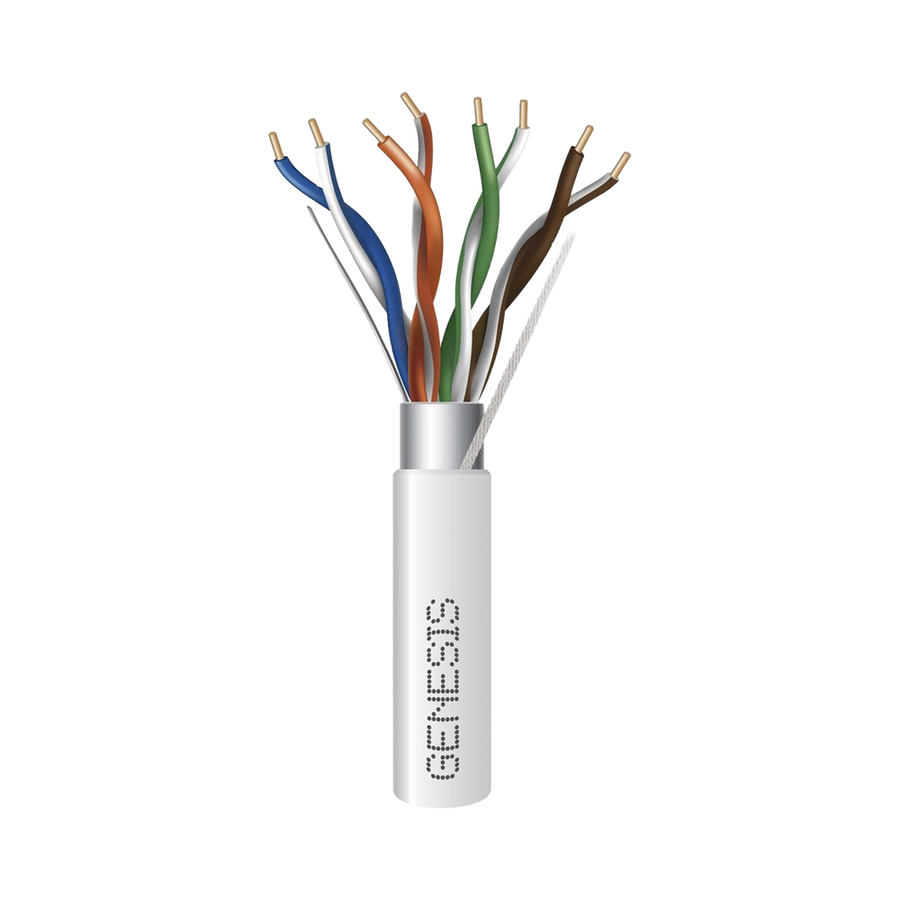

Genesis 5388-1001 Cat5e Plenum Shielded Ethernet Cable 1000ft CMP Rated
Product identifier
SKU
5388-1001
$292.49
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
UL LISTED • PLENUM RATED (CMP) • CAT5E VERIFIED
SHIELDED GENESIS® PREMIUM CABLE
This Genesis cable features 4 solid copper 24 AWG conductor pairs and an overall foil shield with a drain wire, offering verified Category 5e performance and Plenum rating. The best choice for reliable voice and data wiring.
Key Characteristics
- Plenum Rated: Engineered with low-smoke materials for secure deployment in commercial air handling plenum spaces.
- Shielded Design: Features an overall foil shield with an integrated drain wire to effectively block outdoor electromagnetic interference.
- Reliable Infrastructure: The ultimate high-performance solution for demanding enterprise or residential voice and data installations.
Genesis Premium Plenum Reel
Physical & Electrical Specs
| Type / Structure: | Cable (4 Pairs) / Shielded / Plenum |
| Conductor Gauge: | 24 AWG (Solid Copper) |
| Insulation Material: | FEP |
| Exterior Color: | White |
| Outer Diameter: | 0.23" (5.84 mm) |
| Operating Temp: | -4°F to +167°F (-20°C to 75°C) |
| Color Code: | Blue / Wh-Blue, Orange / Wh-Orange, Green / Wh-Green, Brown / Wh-Brown |
| Application: | Indoor Use |
Standards & Certifications
- Plenum Rating: CMP
- Flame Rating: FT6
- Laboratory Marks: UL Listed
- Category Verification: UL Verified Cat5e
Product Support & Installation
* Price per reel of 1000 ft (305 m).
Key Features
- Shielded Foil Construction with Drain Wire for EMI Protection
- 4 Solid Copper 24 AWG Conductors for Reliable Performance
- Plenum CMP Rated for Safe Air Handling Spaces Installation
- Extended Temperature Range from -4°F to 167°F Operation
- UL Listed and FT6 Flame Test Standards Compliance
- 0.23 Inch Outer Diameter for Easy Conduit Pulling
