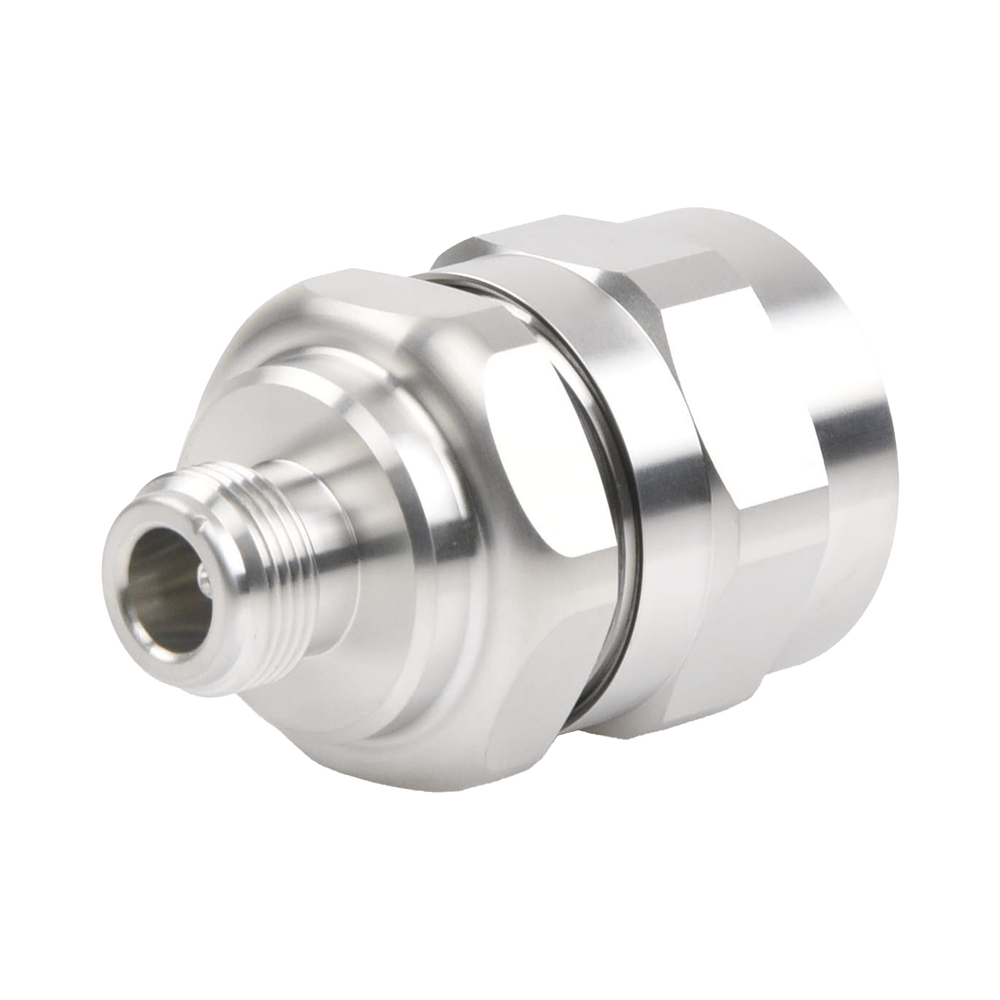

CommScope 78-EZNF 50 Ohm RF Coaxial Cable Connector 5000 MHz
Product identifier
SKU
78-EZNF
$51.69
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 5000 MHz |
| Cable Impedance | 50 ohm |
| 3rd Order IMD, typical | -116 dBm @ 1800 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| RF Operating Voltage, maximum (vrms) | 707.00 V |
| dc Test Voltage | 2000 V |
| Outer Contact Resistance, maximum | 0.30 mOhm |
| Inner Contact Resistance, maximum | 2.00 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Peak Power, maximum | 10.00 kW |
| Insertion Loss, typical | 0.05 dB |
Key Features
- Operates from 0 to 5000 MHz for Broadband RF Applications
- 50 Ohm Impedance Ensures Optimal Signal Transmission
- Third-Order IMD of -116 dBm at 1800 MHz for Clean Signals
- Maximum RF Operating Voltage of 707 V for High-Power Systems
- Minimum Insulation Resistance of 5000 MOhm for Reliable Performance
- IP68 Waterproof Rating for Harsh Environmental Conditions
