BELDEN

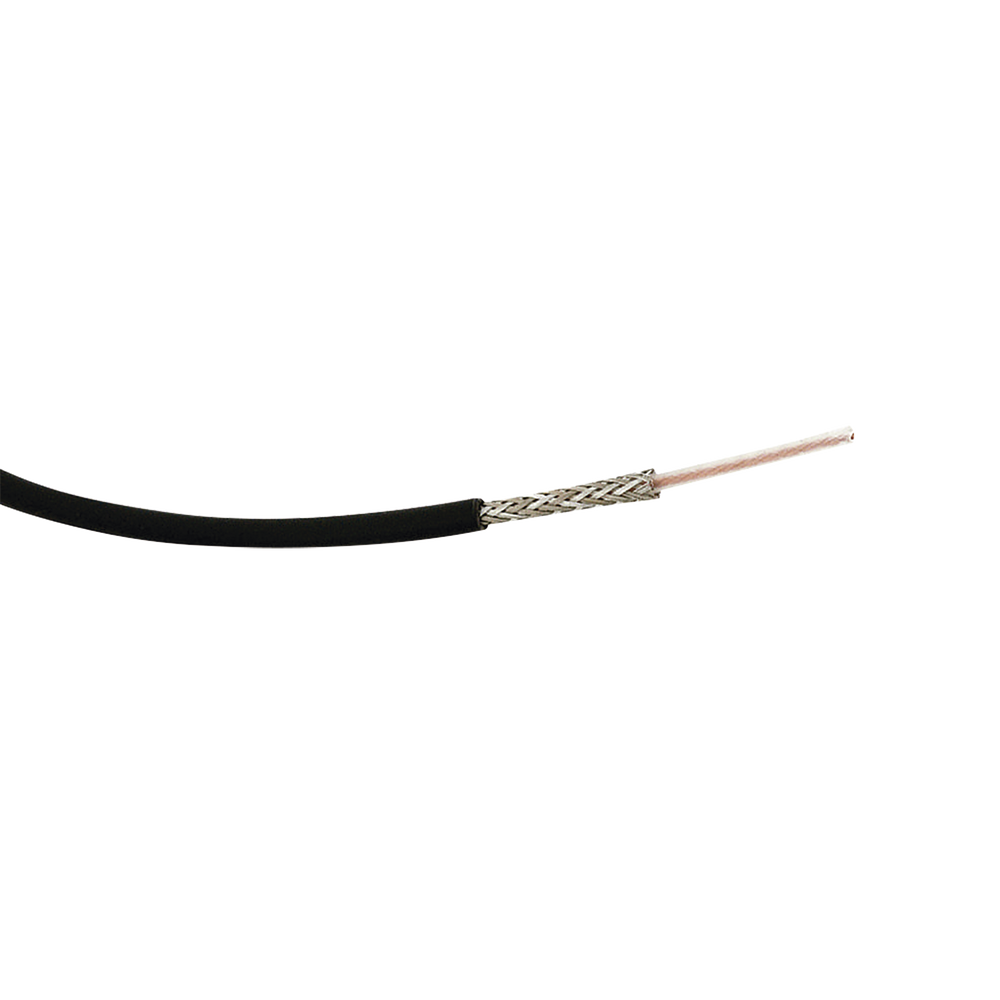

Belden 8240FT RG-58A/U Coaxial RF Cable 52 Ohm 95% Shield
Product identifier
SKU
8240FT
$11.99
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Type RG-58A / U, 20 AWG solid .033 "bare copper conductor, polyethylene insulation, tinned copper braid shield (95% coverage), PVC jacket.
- Impedance: 52 Ohms.
- External Diameter: 4.90 mm.
- Speed Factor: 66%.
- Attenuation in 30 mts. UHF 450 MHz: 8.4 dB.
- Internal Conductor AWG Gauge: 20 Solid copper.
- Insulation: Polyethylene.
- UL flame test: VW-1
- Inductance: 0.26248 (pF/m)
- Indoor applications
- Shielding: Copper braided mesh 95%.
- Weight per meter. 0.052.
* Price per meter.
Key Features
- Solid 20 AWG Bare Copper Conductor for Superior Signal Transmission
- 95% Braided Copper Shield Provides Excellent EMI/RFI Protection
- Polyethylene Insulation Ensures Stable 52 Ohm Impedance
- Low Attenuation of 8.4 dB at 450 MHz per 98 ft Length
- VW-1 Flame Resistant PVC Jacket for Indoor Safety Compliance
- 66% Velocity Factor and 0.193 in Diameter for Easy Installation
