Belden 9913/1000 RG8 Coaxial RF Cable 50 Ohm Low Loss Duobond II

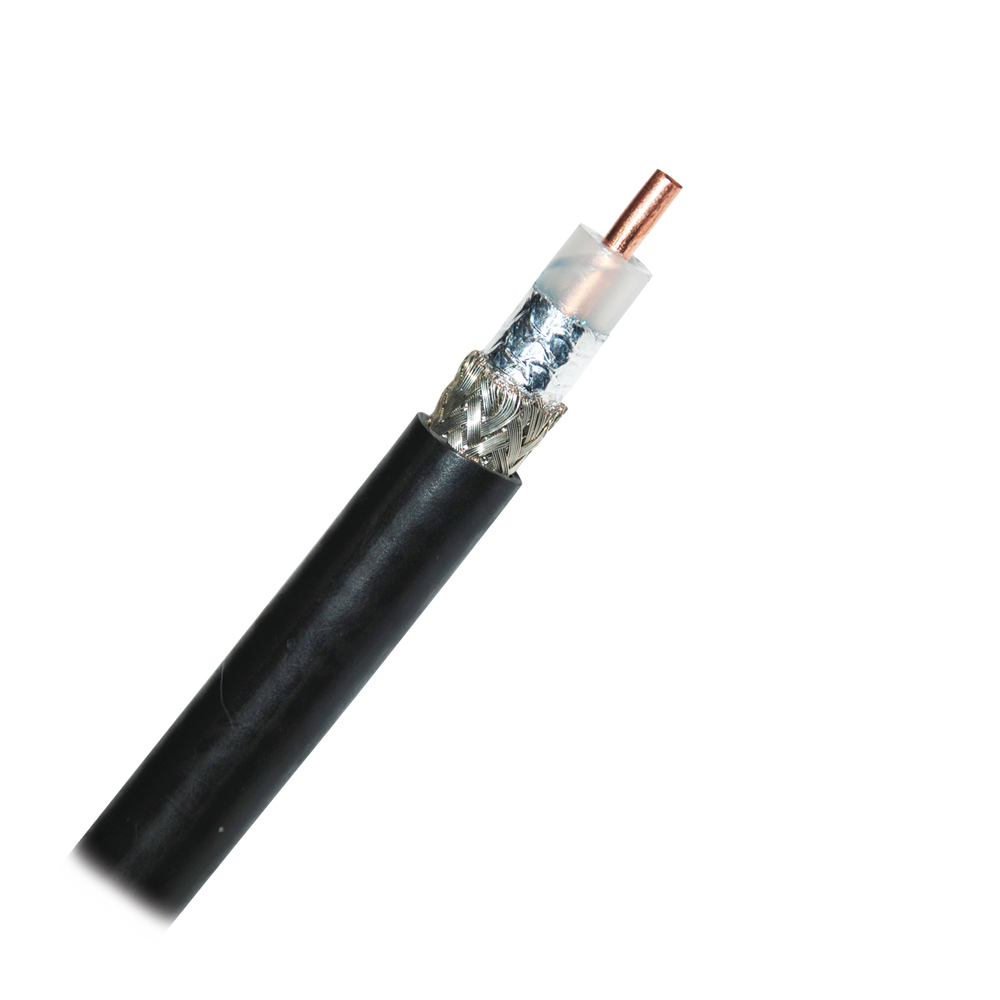

Bare copper conductor 10 AWG .108 ", semi-solid polyethylene insulation, Duobond® II, tinned copper braid shielding (90% coverage), PVC cover.

Advantage :

• Coaxial that complies with the RG8 / U standard
• Pure copper conductor, and solid type for less attenuation (multi-filar version: 9913F)
• Polyethylene insulation for better propagation speed (84%)
• Double shielding:
• Aluminum sheet attached to the insulation to prevent wrinkles in the connectorization ("bonded duo foil", Belden patent)
• 90% dense mesh to avoid interference noise, copper (maximum conductivity) with tin bath (to prevent moisture from entering).
• Low loss (series "low loss" of Belden): at 30 meters, only 2.6dB @ 400Mhz
• High power: 619 Watts @ 400 Mhz
• High voltage supported 600V RMS
• Minimum capacitance (electrostatic charge): 24.6 picofarads per foot
• Wide temperature range: from -40 ℃ to + 80 ℃
• Supports maximum pulling force: 300 pounds

Features :

• Impedance: 50 Ohms.
• Outside Diameter; .405 in. 10.29mm
• Speed ​​Factor: 84%.
• Attenuation in 30 meters. UHF 450 MHz.2.7 dB.
• Internal conductor AWG gauge: 10 (.108) Solid copper.
• Insulation: Semi-solid polyethylene.
• Shielding: Duobond II + 90% tinned copper braided mesh.

* Price per reel of 1000 ft.

Key Features

• Solid 10 AWG Copper Conductor for Minimal Signal Attenuation
• Duobond II Shield Plus 90% Braided Tin-Coated Copper Mesh
• Semi-Solid Polyethylene Insulation With 84% Propagation Speed
• Low Loss: Only 2.6 dB @ 400 MHz per 98 ft Length
• High Power Handling: 619 Watts @ 400 MHz Operation
• Withstands 600V RMS Voltage and 300 lb Pull Strength
