SIEMON

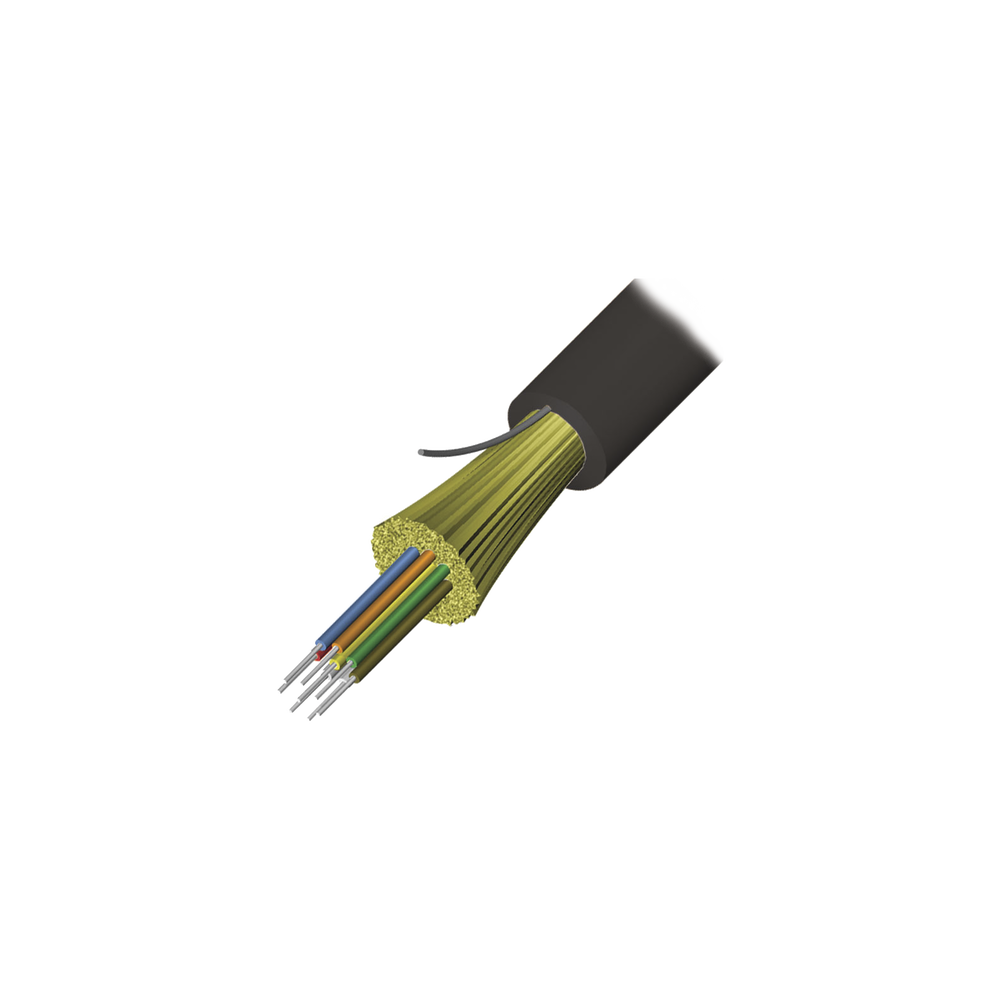

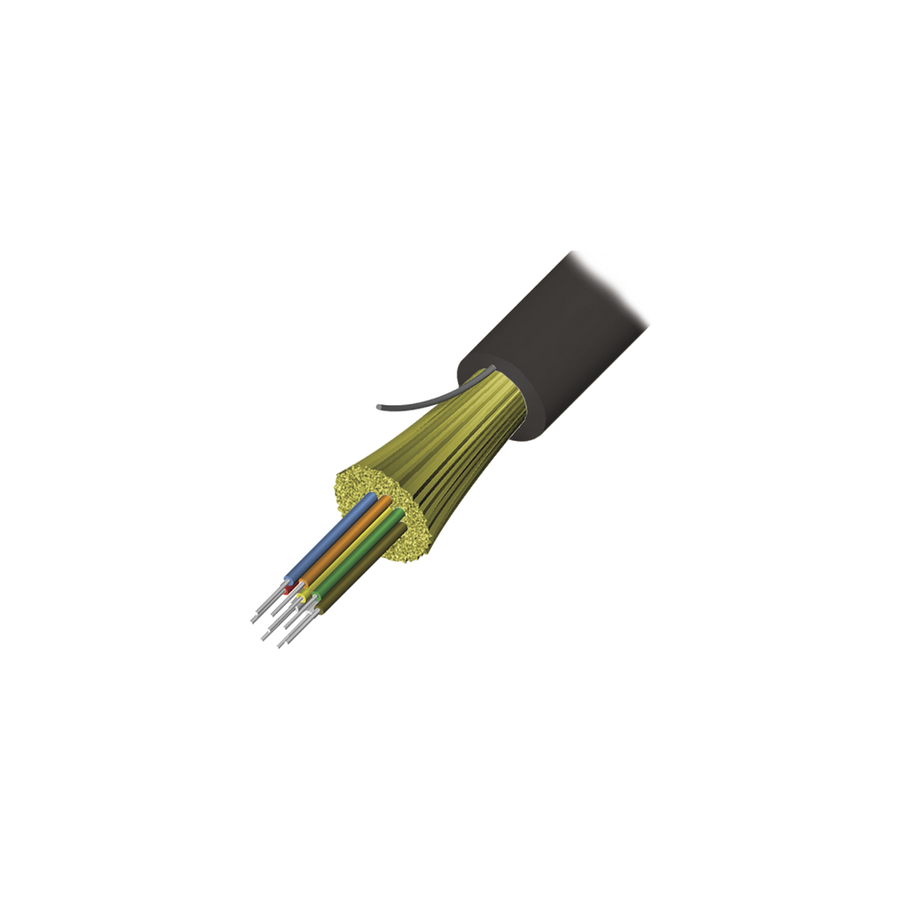

Siemon 9GD8P006D-E201A 6-Strand Singlemode Fiber Optic Cable 10G OFNP
Product identifier
SKU
9GD8P006D-E201A
$12.95
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Siemon indoor/outdoor tight buffer fiber cables are ideal for data centers, campus, and building backbones. Siemon fiber optic cables are offered in XGLO and LightSystem configurations supporting high-speed, applications such as Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit ATM, and Fiber Channel. Siemon indoor/outdoor cable water blocking is primarily for dry duct applications for moisture and temporary water migration protection.
Technical Specifications:
- Tight Buffer: 900μm
- Coated optical fiber: 125μm
- Length markings in 2 ft increments
- Color code: TIA-598-C
- Optic fiber non-conductive (Dielectric)
- Plenum Type (OFNP)
Standards Compliance:
- ISO/IEC 11801:Ed 2.0 Amendment:1:2008
- ANSI/TIA/EIA-568-C.3
- ANSI/TIA-598-C
- Telcordia GR-409-CORE
- ITU-T G.652 C/D
- OFNR: Communications Type OFNR (UL) and CSA FT4 c(UL
- OFNP: Communications Type OFNP (UL) and CSA FT6 c(UL)
Key Features
- Tight Buffer Construction for Indoor/Outdoor Data Center Applications
- Supports High-Speed 10 Gigabit Ethernet Applications
- 900μm Tight Buffer With 125μm Fiber Cladding
- Length Markings Every 2 Feet for Easy Installation
- Complies With ISO/IEC, ANSI, Telcordia, and ITU-T Standards
- Dielectric Non-Conductive Plenum OFNP Rated Construction
