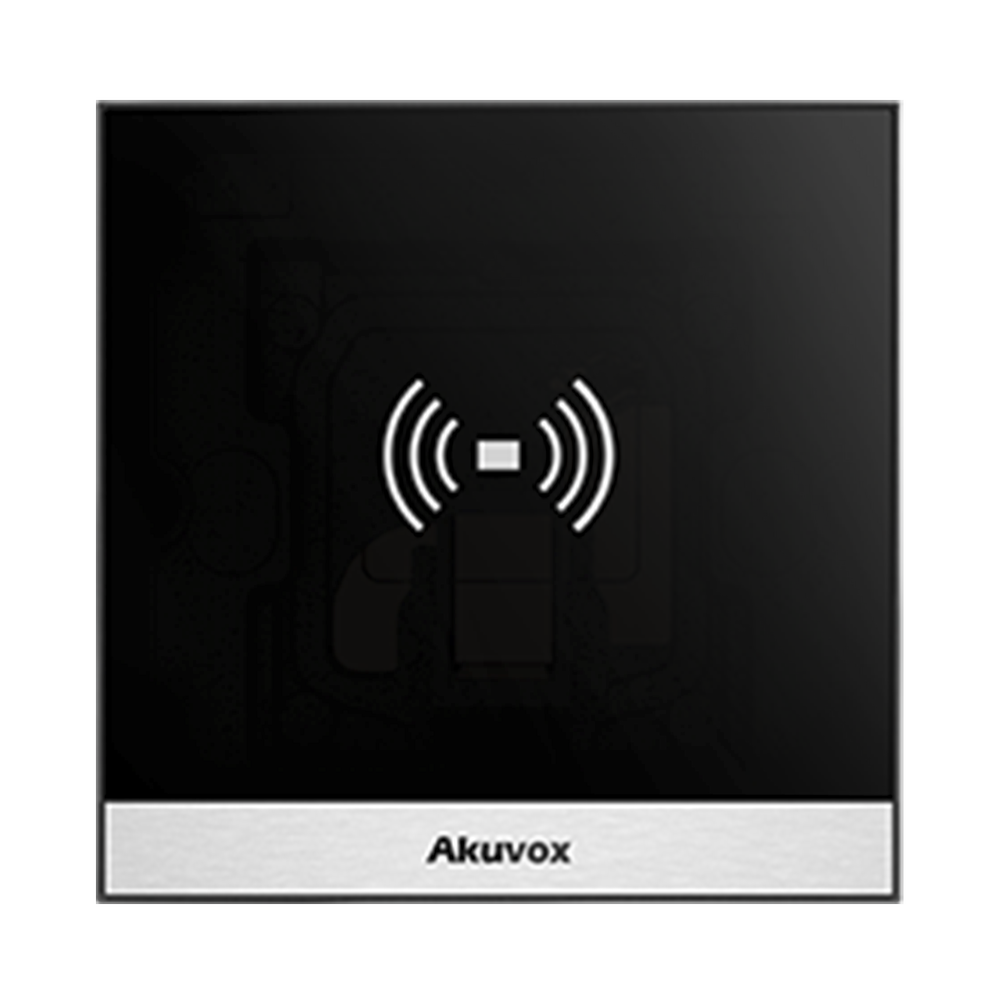

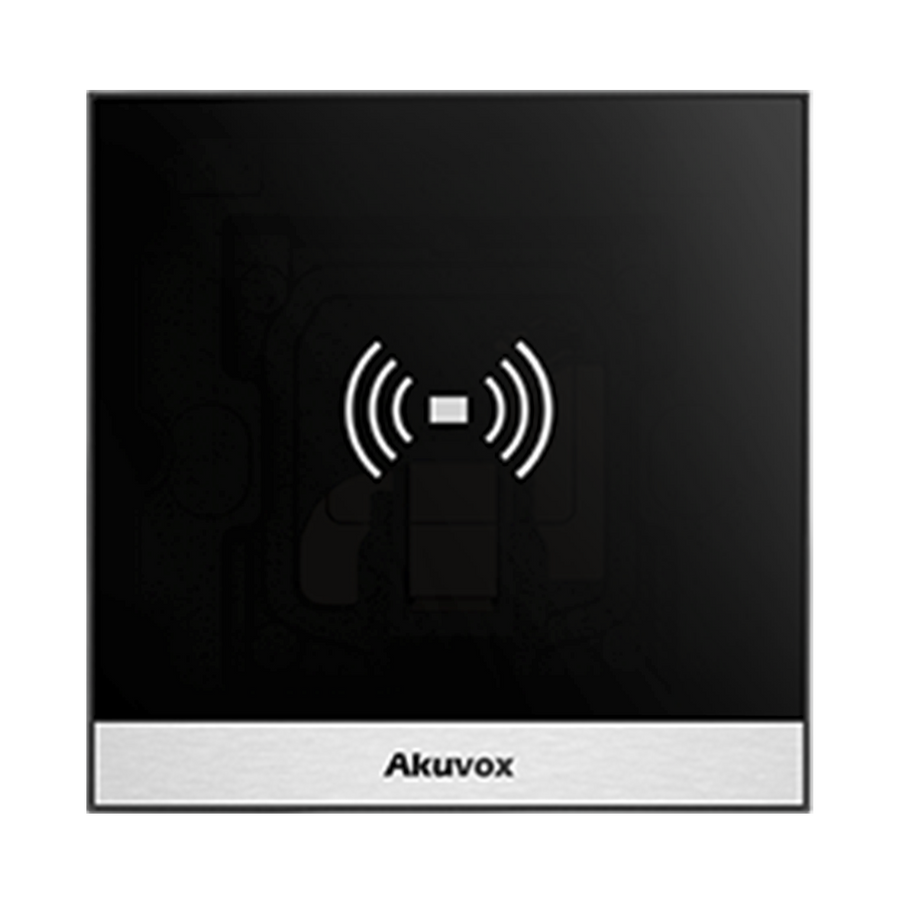

Akuvox A03 Smart, Compact, and Stylish Access Control Terminal / Prox 125 kHz / MIFARE 13.56MHz / Web Management

AKUVOX

Akuvox A03 IP-Based Access Control Terminal RFID NFC PoE

Product identifier
SKU A03
$247.49
Available to order

Lead time confirmed after order.

Request a quote Need help confirming fit? Talk to a specialist →
  • Product availability confirmed before fulfillment.
  • Support in English, Spanish and Portuguese.
  • 30-day returns and RMA support.

Product details

Smart, Compact, and Stylish Access Control Terminal

A03 is an IP-based access control terminal combining a door controller and card reader in one device. It supports RFID cards, mobile access via NFC, offering users flexibility in credentials options and wave-to-unlock via Bluetooth.

  • Stylish appearance design.
  • 20,000 card capacity & 100,000 Event Log.
  • Multi-frequency RFID card reader.
  • Support NFC.
  • Support Wiegand.
  • Configuration via web browser.
  • Management access authority via ACMS(Access Control Management System).
Physical & Power:
  • Front panel: Tiughened glass.
  • Frame: Aluminum Alloy
  • RFID card reader: 13.56MHz & 125kHz
  • Relay out: 1
  • Inputs: 2
  • Wiegand: Support
  • Speaker: 8Ω / 0.5W
  • Tamper proof alarm: Support
  • Ethernet port: RJ45, 10/100Mbps adaptive
  • 802.3af Power-over-Ethernet
  • 12V DC connector (if not using PoE)
  • Power output: 12V 500mA
  • IP Level: IP65
  • Installation: Flush-mounted or Wall-mounted
  • Dimension: 3.38 x 3.38 x 1.29 in
Capacity
  • User Capacity: 20,000
  • Card Capacity: 20,000
  • Event Log: 100,000

Deployment & Maintenance

  • Auto-Provisioning
  • Web management portal
  • Web-based packet dump
  • Configuration backup / restore
  • Firmware upgrade
  • System logs
Networking
  • Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Door Entry Feature

  • Access schedule export/import
  • Access level management
  • Support switch to reader mode
  • Door access logs query and export
  • Flexible shift scheduling and attendance management

Key Features

  • Dual Technology Bluetooth and RFID Reader for Flexible Access
  • IP Network Connectivity for Centralized Management Systems
  • Mobile App Integration for Smartphone-Based Access Control
  • Multi-Technology Support for Various Credential Types
  • Standalone Operation With Local Database Storage
  • Weatherproof Design for Indoor and Outdoor Installation
