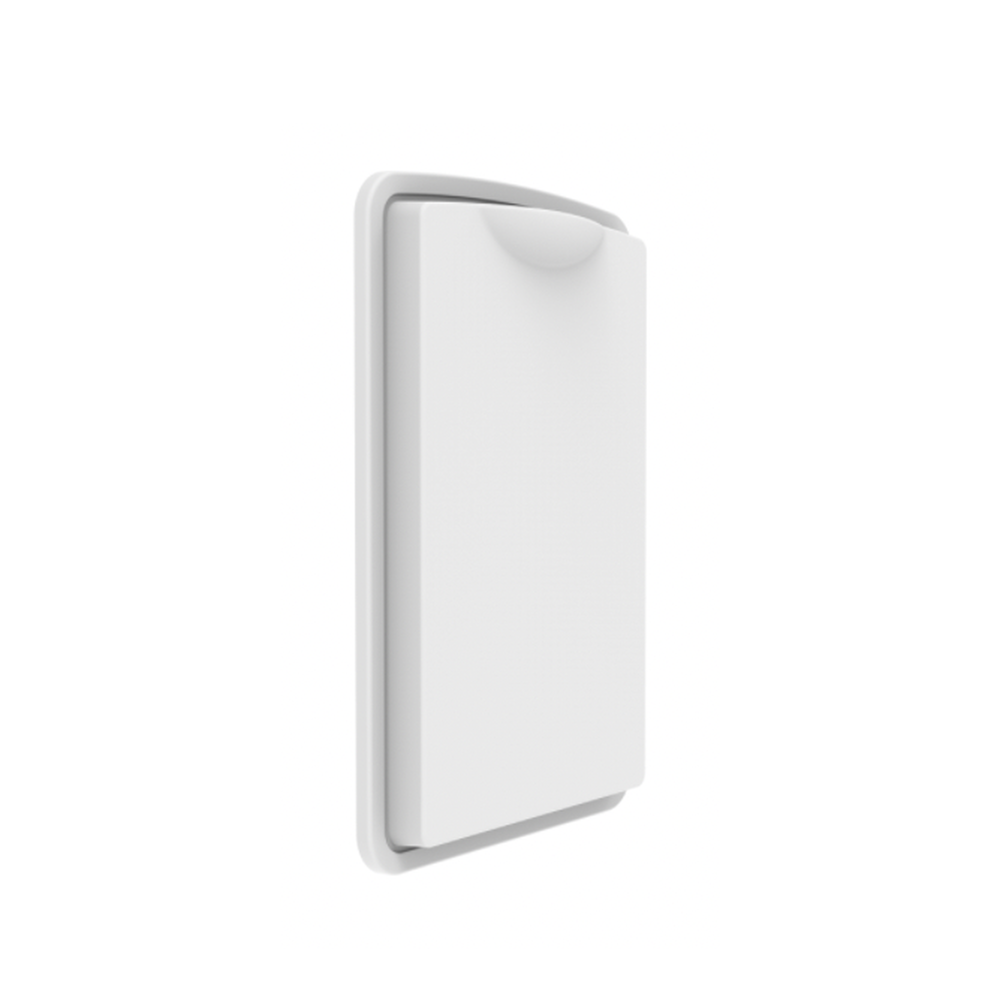

Mimosa A6X-AP 7 Gbps Point-to-Multipoint Access Point 8x8 MU-MIMO IP67

Distances vary depending on site-specific conditions such as spectrum availability, noise levels, clear line-of-sight, and desired bandwidth.

Key Features of the A6

• Integrated GPS + GLONASS system for effective data packet synchronization between Tx and Rx.

• 1 Gbps Ethernet port

• 2 SFP+ ports

• Advanced security protocols: WPA3, AES, RADIUS, 802.1X

• Supports up to 1 million packets per second

• Maximum performance: Up to 7 Gbps aggregate speed (DL/UL)

Operating Modes

• PTMP

  • Access point with C6X radios in PTMP mode only.

• PTMP

  • Works as an AP in WiFi Interop mode, providing WiFi 802.11ax connectivity to end devices (smartphones, PCs, etc.).

Radio Specifications

• MIMO and Modulation: 8x8 MU-MIMO OFDM, BPSK to QAM

• Channel Widths: 20/40/80/160 MHz

• Maximum Transmission Power: 24 dBm

• Low latency: < 1 ms

• Weatherproof Rating: IP67

• Operating Temperature Range: -40 to 55 °C (-40 to 131 °F)

• Frequency Range: 4.9 – 6.4 GHz

• Compatible with C6x radios

Physical & Electrical Specifications

• Maximum Power Consumption: 40 W

• Passive PoE Input: 48–56 VDC

• Passive PoE Injector: POE50V (not included)

Dimensions:

• Depth: 75 mm

• Width: 295 mm

• Height: 490 mm

• Weight: 3.95 kg (8.7 lbs)

Note: The device includes an internal surge protector. It is recommended to connect it to a physical ground.

Important: This device functions only as an Access Point and does not support PTP (Point-to-Point) operation.

Key Features

• WiFi 8x8 MU-MIMO With Advanced OFDM Modulation Technology
• Integrated GPS and GLONASS for Precise Data Synchronization
• 1 Gbps Ethernet Port and 2 SFP+ Fiber Optic Ports
• Advanced WPA3 Security With AES, RADIUS, and 802.1X
• IP67 Weatherproof Rating for Harsh Outdoor Environments
• Operates in Extreme Temperatures From -40°F to 131°F
