Rosslare AC-825IP-U(US) 56-Door Networked Access Controller 60000 Users

The AC-825IP is the most widely used access controller in the industry, suitable for small, medium, and large systems.

• Up to 56 doors, 60,000 users, and 500,000 history log entries (FIFO) per ACU.
• Onboard TCP/IP networking with AES 128-bit data encryption to an AxTraxNG server, bidirectional push communication for enhanced data transmission speed and reliability.
• Supports up to 6 doors (Wiegand format/OSDP readers), each with 2 inputs and 1 output.
• 4 auxiliary inputs and 2 auxiliary outputs
• Supports 2 OSDP readers
• One onboard expansion slot and an additional
• 12 expansion boards via OSDP (R/S/D/P-805)*
  • R-805 – 16 outputs
  • S-805 – 16 inputs
  • D-805 – 4-door expansion
  • P-805 – 16 inputs and 8 outputs
• An additional ME-1505 metal enclosure holds 2 expansion boards and includes all the innovative features of the AC-825I enclosure
• Real-time clock keeps time for up to 2 weeks without power (no batteries to replace)

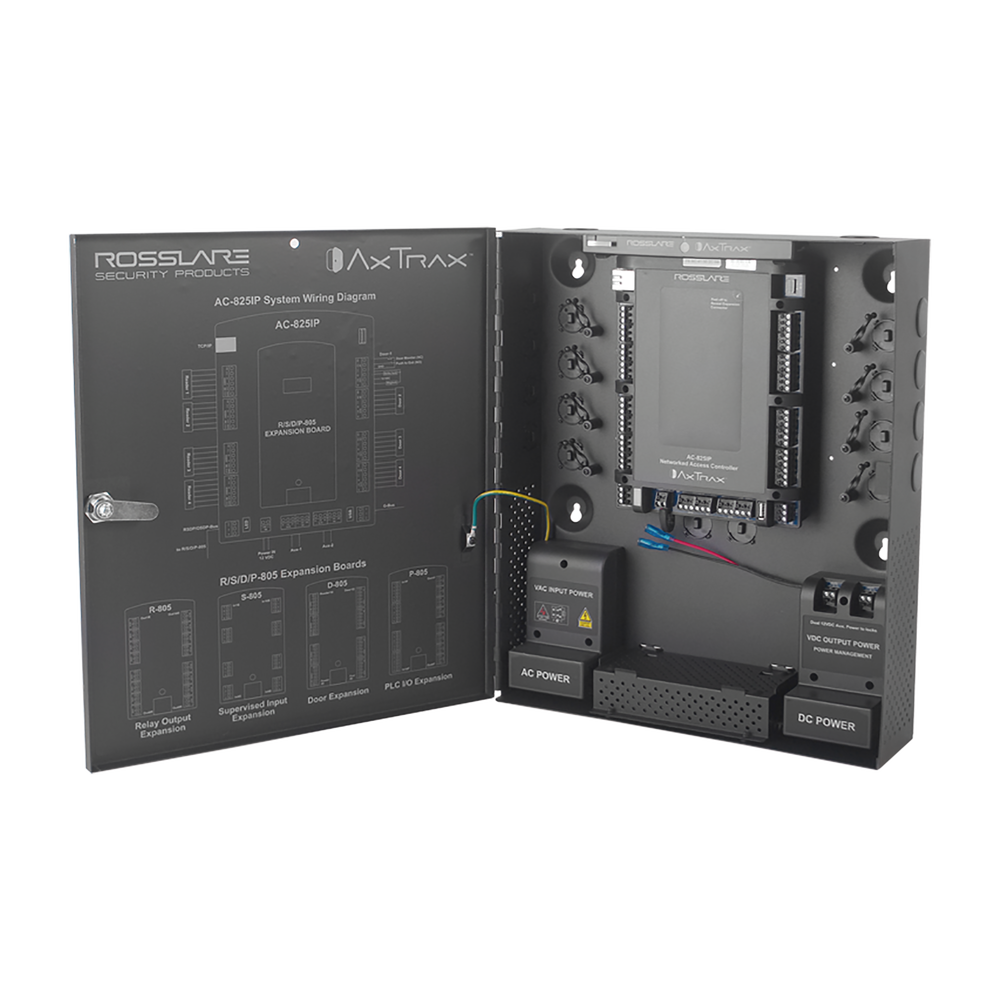

• Spacious and lockable metal enclosure features cable twist locks and zip-tie anchors for better cable management
• Power management board indicates the battery and power status
• Revolutionary enclosure with illumination bar that lights up when the enclosure is opened; tamper sensing and power status LED

*For AXTRAXNG 26 and 27 Version we recommend using Windows 8 Pro, for earlier Versions of AXTRAXNG 26, we recommend using Windows 7 Pro.

Key Features

• Expandable System Supports up to 56 Readers With Expansion Cards
• Elevator Control by Floor, Time Zone, and User Classification
• 128-Bit AES Encryption for Maximum Security Protection
• 500,000 Event Memory With Cyclical Storage Capability
• 4 Auxiliary Inputs and 2 Outputs for Flexible Integration
• LED Illuminated Cabinet With Spacious Cable Management
