MIKROTIK

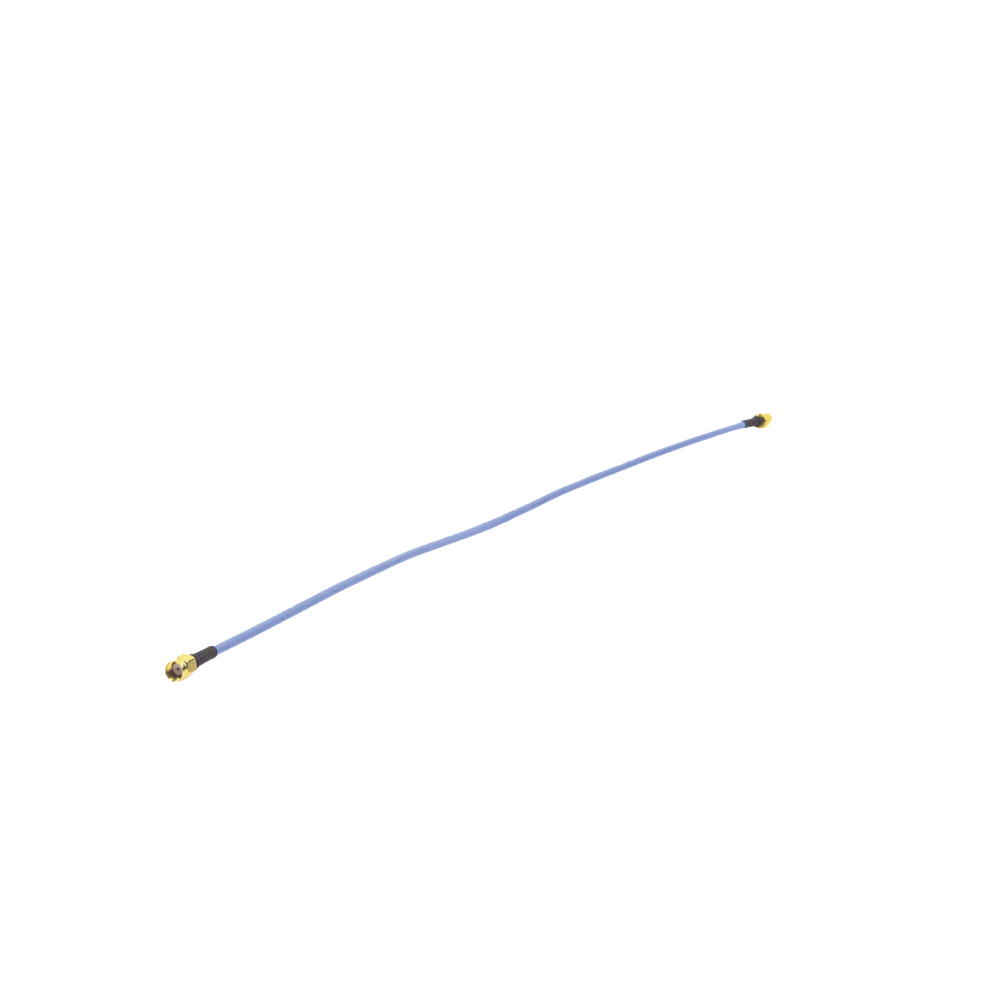

MikroTik ACRPSMA RP-SMA Cable 50cm Low Loss 6GHz Silver-Plated
Product identifier
SKU
ACRPSMA
$22.67
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Super low loss 50cm long RPSMA cable for superior connection quality, suited for indoor and outdoor use, this cable provides superior matching and loss values.
The name of this cable comes from combining the words “flexible” and “waveguide”, to denote the high-end features of this product.
The inner conductor is silver-plated copper, and both connectors are soldered, not crimped, for the best possible signal quality. Ideally suited for our BaseBox and other products with RPSMA connectors, and works with most antennas.
Product specifications
| Details | |
|---|---|
| Product code | ACRPSMA |
| Frequency | up to 6GHz |
| MTBF | Approximately 100'000 hours at 25C |
| Matching | above -20dB |
| Signal loss | below 0.65dB |
| Tested ambient temperature | -55C to 125C |
Key Features
- Super Low Loss Cable With Less Than 0.65 dB Signal Loss
- Silver-Plated Copper Conductor for Superior Signal Quality
- Frequency Range up to 6 GHz for Optimal RF Performance
- Extended Temperature Range From -67°F to 257°F
- 100,000 Hour MTBF at 77°F for Long-Term Reliability
- Soldered Connectors (Not Crimped) for Maximum Signal Integrity
