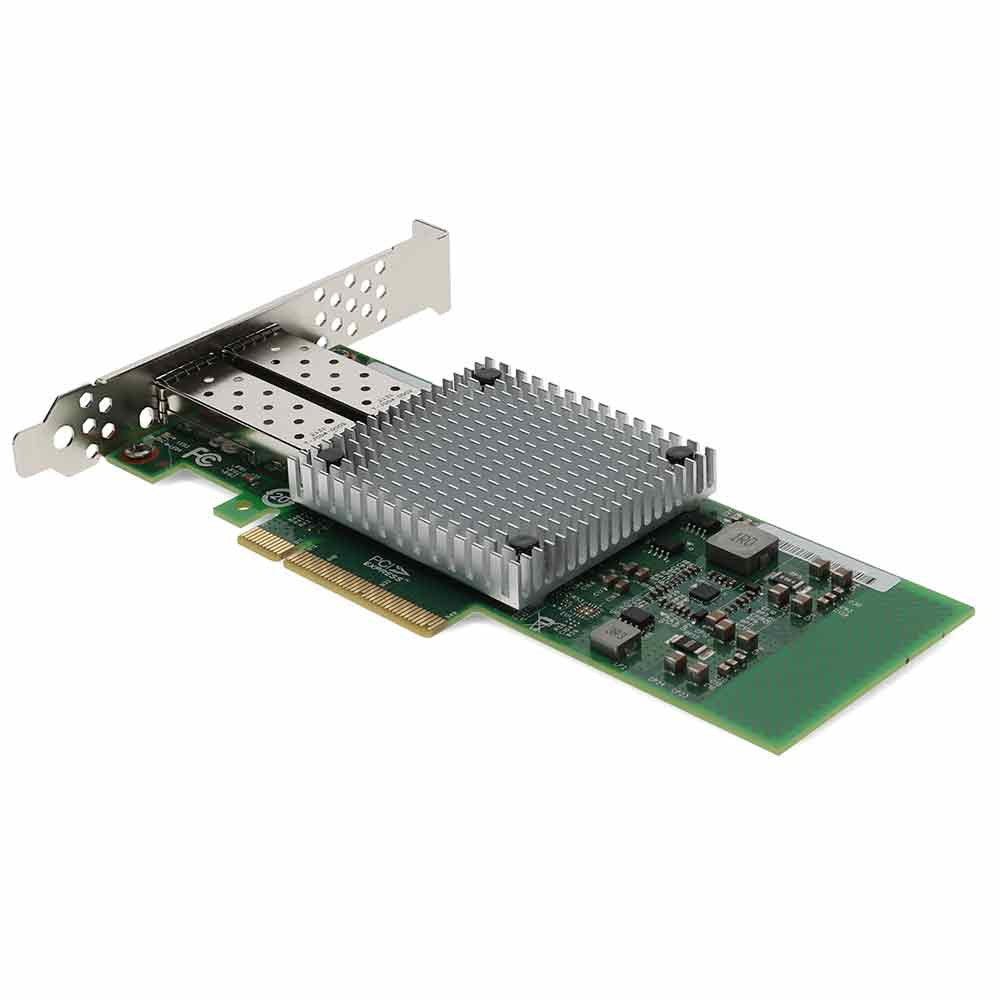

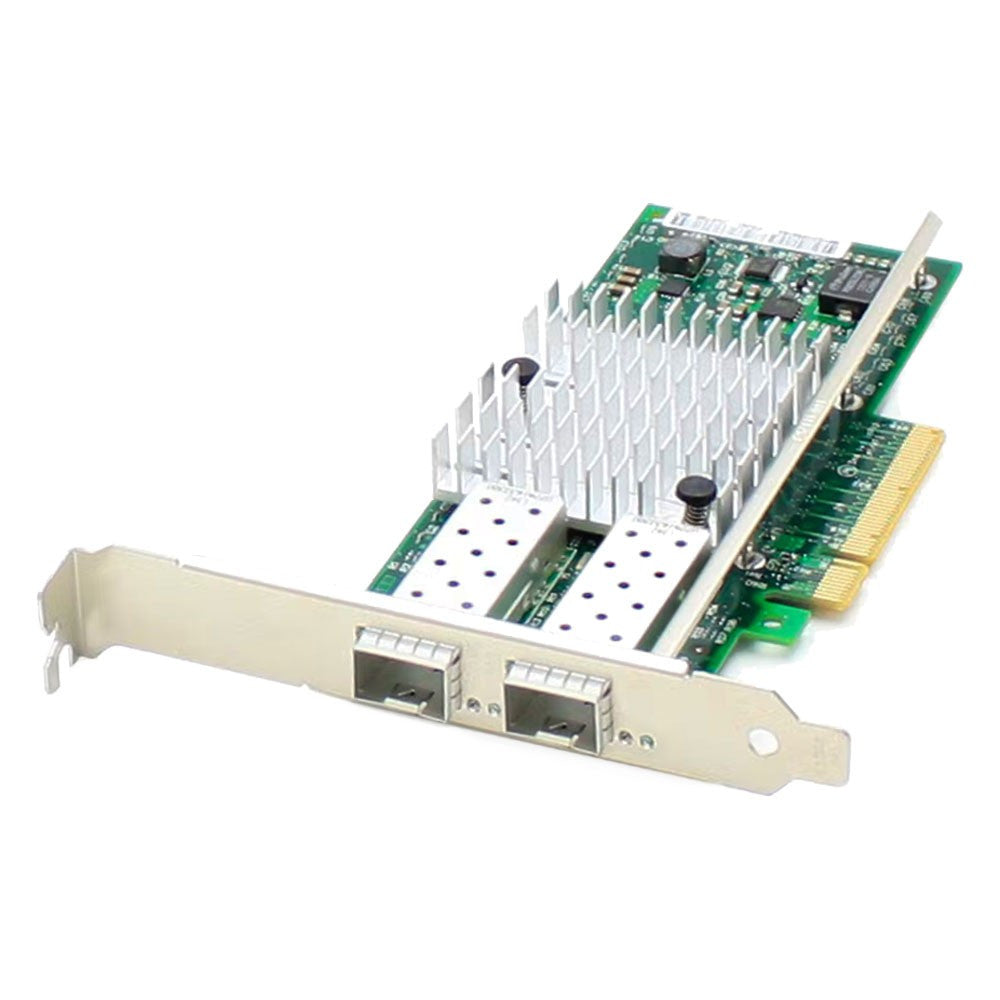

AddOn MHQH29C-XTR-AO 10Gbps Dual Open SFP+ PCIe 2.0 x8 Network Interface Card, Intel 82599

Part number / SKU
MHQH29C-XTR-AO
  • 10 Gbps
  • 2x 10G SFP+, open

$383.59

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The AddOn MHQH29C-XTR-AO is a dual-port 10 Gigabit Ethernet network interface card for PCI Express 2.0 x8 slots, offered by AddOn as comparable to the Mellanox part MHQH29C-XTR. It is built on the Intel 82599 controller and adds two 10G network ports to a server, workstation or client through one expansion slot.

Both ports are open SFP+ cages that comply with IEEE 802.3, so you choose SFP+ transceivers for multimode or single-mode fiber to suit the reach you need. The card supports VLAN filtering and PXE boot, and comes with both half-height and full-height brackets for low-profile and standard chassis.

Listed operating system support covers Windows Server 2003, 2008, 2008 R2, 2012 and 2012 R2, Windows Vista, 7, 8 and 8.1 in 32 and 64 bit, Linux kernels 2.4.x, 2.6.x and 3.x, and FreeBSD 7.2 or later.

  • Best for: adding two 10G fiber ports to servers and workstations with a free PCIe x8 slot.
  • System fit: PCIe 2.0 x8 host slot; Intel 82599 controller; open SFP+ ports that take multimode or single-mode SFP+ optics.
  • Important to know: the SFP+ ports are open, so optics are chosen and installed separately; AddOn lists this card as comparable to the Mellanox MHQH29C-XTR, not as a Mellanox product.

Why teams choose it

Built for reliable networks

  • Two 10G ports

    dual SFP+ ports in a single PCIe 2.0 x8 slot.

  • Choice of fiber

    open SFP+ cages accept multimode or single-mode transceivers.

  • Network boot

    PXE boot support for booting the host from the network.

  • Fits more chassis

    half-height and full-height brackets included.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUMHQH29C-XTR-AO
General
Brand AddOn
Model MHQH29C-XTR-AO
Device Type Network interface card
Comparable OEM Part Mellanox MHQH29C-XTR
Chipset Intel 82599
Interfaces
Ports 2x 10G SFP+, open
Data Rate 10 Gbps
Data Protocol Ethernet, IEEE 802.3
Media Type Multimode or single-mode fiber, via SFP+ optic
Bus Type PCIe 2.0
Bus Width x8
Host Bandwidth 4000 MB/s
Physical
Brackets Half-height and full-height included
Software and Management
PXE Boot Supported
VLAN Filtering Supported
Supported Operating Systems Windows Server 2003, 2008, 2008 R2, 2012, 2012 R2; Windows Vista, 7, 8, 8.1 (32 and 64 bit); Linux kernel 2.4.x, 2.6.x, 3.x; FreeBSD 7.2 or later
