Airlive · Point-to-Multipoint

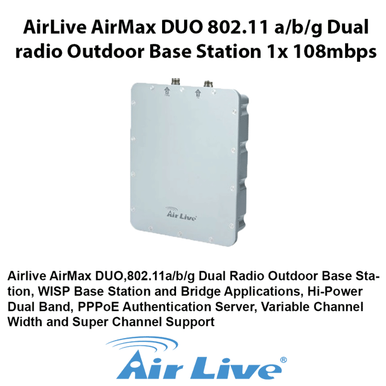

AirLive AirMax DUO/P 802.11a/b/g Dual-Radio Outdoor Base Station, IP67, 2x N-Type

Manufacturer part number
AirMax DUO
EhubAmerica SKU
AirMax DUO/P
  • 802.11a/b/g
  • 2.4 GHz and 5 GHz
  • 802.3af PoE
  • Connectorized, 2x N-type

$335.76

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The AirLive AirMax DUO is an outdoor 802.11a/b/g base station with two radios that run at the same time: Radio 1 works in 802.11a (5 GHz) and Radio 2 in 802.11a/b/g. AirLive designed it for WISP base station and bridge use, combining authentication, backbone and base station roles in one unit, with a built-in PPPoE authentication server that uses local accounts or a remote RADIUS server.

Dual Band is the default mode, and a 2.4 GHz only mode turns it into a 2.4 GHz outdoor AP. Channel width adjusts across 5, 10, 20 and 40 MHz, and Super Channels give licensed 4.9 GHz or 6 GHz operators more than 140 channels without an extra software license fee. In bridge mode the two radios can be bound in duplex mode for short links, or a single radio can serve long-distance links up to 25 km.

The unit uses a 220 MHz Atheros CPU with 8 MB flash and 32 MB SDRAM, has two N-type antenna connectors, and takes IEEE 802.3af PoE on one LAN port. It sits in an IP67 waterproof metal housing with waterproof connectors for normal Ethernet cable and RSSI LEDs visible from a distance, and operates from -20 to 60 °C.

  • Best for: WISP base stations and outdoor bridge links that need two simultaneous radios and subscriber PPPoE authentication at the tower.
  • System fit: AirLive AirLogic management interface; PPPoE authentication with local accounts or a remote RADIUS server; external antennas on two N-type connectors.
  • Important to know: this is a connectorized unit, so antennas are chosen separately; it uses legacy 802.11a/b/g radios, and Super Channels are for licensed 4.9 GHz or 6 GHz operators.

Why teams choose it

Built for reliable networks

  • Two radios at once

    an 802.11a radio and an 802.11a/b/g radio operate simultaneously.

  • Built-in subscriber authentication

    PPPoE server with local accounts or remote RADIUS.

  • Flexible channels

    5, 10, 20 or 40 MHz widths, plus Super Channels for licensed 4.9 GHz or 6 GHz bands.

  • Outdoor housing

    IP67 waterproof metal enclosure rated for -20 to 60 °C.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUAirMax DUO/P
General
Brand AirLive
Model AirMax DUO/P
Device Type Outdoor dual-radio base station
CPU Atheros, 220 MHz
Flash 8 MB
RAM 32 MB SDRAM
Wireless
Wireless Standard 802.11a/b/g
Radio Configuration Radio 1 802.11a; Radio 2 802.11a/b/g, simultaneous
Frequency Band 2.4 GHz and 5 GHz
Frequency Range Radio 1 5.15 to 5.825 GHz
Channel Width 5, 10, 20, 40 MHz
Super Channels More than 140 channels for licensed 4.9 GHz or 6 GHz operators
Antenna Type Connectorized, 2x N-type
Wireless Modes WISP access point, bridge, WDS Pure MAC
Turbo Modes Super-A/Turbo-A (5 GHz), Super-G/Turbo-G (2.4 GHz)
Performance
Max Range Up to 25 km, single-radio bridge
Interfaces
Antenna Connectors 2x N-type
Power
Power Method 802.3af PoE
PoE Input One LAN port
Physical
Enclosure IP67 waterproof metal housing
Indicators Waterproof RSSI signal LEDs
Environmental
IP Rating IP67
Operating Temperature -20 to 60 °C
Software and Management
Management AirLogic interface
Authentication Built-in PPPoE server, local accounts or remote RADIUS
Listings and Approvals
RoHS Compliant
