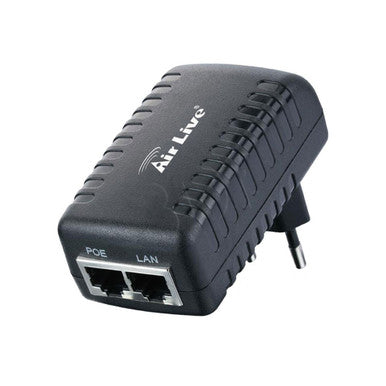

AirLive POE-48PB v2 48V 0.4A PoE Injector

Part number / SKU
POE-48PB v2
  • AC in, 100 to 240 VAC

$27.38

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The AirLive POE-48PB v2 is a 48 VDC PoE injector that adds power to a UTP or STP Ethernet cable up to 100 m. It powers a 48 V device, such as an access point or camera, from a standard outlet.

It takes 100 to 240 VAC at 50 to 60 Hz and outputs 48 VDC at 0.4 A on pins 4, 5 (+) and 7, 8 (-), with at least 85% efficiency at full load, 150 mVp-p ripple and short circuit protection. It weighs 95 g, measures 8.5 x 4.5 x 7 cm and operates from 0 to 40 °C.

  • Best for: powering a 48 V spare pair PoE access point or camera from a standard outlet.
  • System fit: Devices that take 48 VDC on pins 4, 5 (+) and 7, 8 (-).
  • Important to know: output is 48 VDC on the spare pairs at up to 0.4 A; check the device's pinout and draw first.

Why teams choose it

Built for reliable networks

  • 48 VDC at 0.4 A

    for 48 V PoE devices.

  • Universal input

    100 to 240 VAC, 50 to 60 Hz.

  • Efficient

    at least 85% at full load, low ripple.

  • Protected

    short circuit protection on the output.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUPOE-48PB v2
General
Brand AirLive
Model POE-48PB v2
Device Type PoE injector
Interfaces
Cable UTP or STP
Max Cable Length 100 m
Power
Power Method AC in, 100 to 240 VAC
Input Frequency 50 to 60 Hz
Output Voltage 48 VDC
Output Current 0.4 A
PoE Pinout Pins 4, 5 (+) and 7, 8 (-)
Efficiency 85% min at full load
Ripple and Noise 150 mVp-p max
Protection Short circuit
Physical
Dimensions 8.5 x 4.5 x 7 cm
Weight 95 g
Environmental
Operating Temperature 0 to 40 °C
Storage Temperature -10 to 80 °C
Operating Humidity 10 to 95%
Listings and Approvals
Certifications CE, FCC
