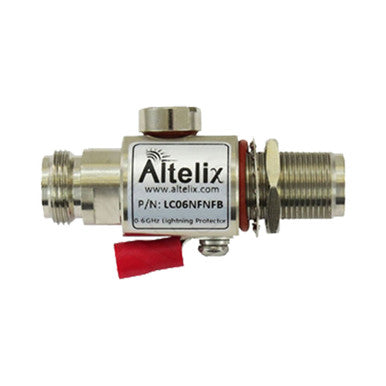

Altelix LC06NFNFB N-Female Coaxial Surge Protector 6GHz 50Ohm

PRODUCT OVERVIEW

The Altelix LC06 Series are high-performance coaxial Lightning Protectors that operate over the frequency range of DC-6.4 GHz. They use a gas discharge tube to shunt electrical surges and transients to ground thus protecting sensitive communications equipment from surge and lightning events.

PRODUCT TYPE

Networking Accessories

KEY FEATURES

• Broad Bandwidth DC-6 GHz
• Replaceable Gas Tube Element
• DC Pass for Remote Powering
• High Surge Power Capability
• Low Loss and VSWR
• 802.11a/b/g/n WiFi Access Points, MIMO
• VHF, UHF, LMR, GPS
• 3G/4G LTE, PCS, Cellular Repeater
• Wireless Video Systems
• Amateur Radio
• Outdoor Antenna Feedlines and Tower Installs
• Model LC06NFNFB
• Frequency Range DC-6.4 GHz
• VSWR 1:1.2 typ.
• Insertion Loss 0.4 dB typ.
• Impedance 50 Ohm
• Gas Tube DC Breakdown Voltage* 230V+/-20%
• Gas Tube Impulse Breakdown Voltage 1000V 20%

TECHNICAL SPECIFICATIONS

• Brand: Altelix
• Model: LC06NFNFB
• Product Type: Networking Accessories
• Broad Bandwidth DC-6 GHz
• Replaceable Gas Tube Element
• DC Pass for Remote Powering
• High Surge Power Capability
• Low Loss and VSWR
• 802.11a/b/g/n WiFi Access Points, MIMO
• VHF, UHF, LMR, GPS
• 3G/4G LTE, PCS, Cellular Repeater
• Wireless Video Systems
• Amateur Radio
• Outdoor Antenna Feedlines and Tower Installs
• Model LC06NFNFB
• Frequency Range DC-6.4 GHz
• VSWR 1:1.2 typ.
• Insertion Loss 0.4 dB typ.
• Impedance 50 Ohm
• Gas Tube DC Breakdown Voltage* 230V+/-20%
• Gas Tube Impulse Breakdown Voltage 1000V 20%
• Gas Tube Insulation Resistance 2000 MegOhm min.
• Rated Surge Current 20 KA Max.
• Connectors N-Female to N-Female Bulkhead Ground Lug 10 AWG Max.
• Max. Panel Thickness (Bulkhead Connector) 0.31 In. (7.93 mm)

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
