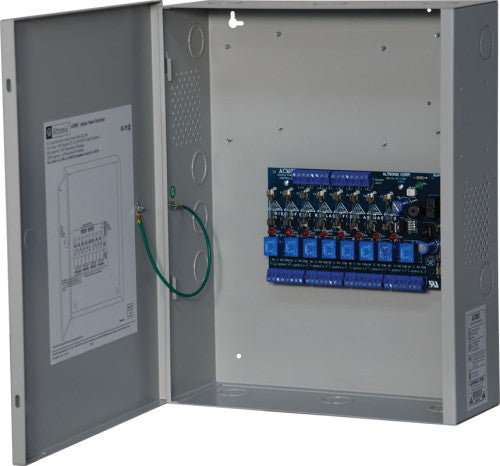

Altronix ACM8E 8-Output Fused Access Power Controller, 12 to 24V AC/DC

Part number / SKU
ACM8E
  • One common input

Works with: UL Listed 12 to 24V AC/DC access control power supplies, Mag locks, Electric strikes, Magnetic door holders, FACP signaling circuit or dry contact (fire alarm disconnect) Confirmed by the manufacturer


$240.21

Special order· Lead time confirmed by our team after you order.

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Altronix ACM8E is an access power controller that converts one 12 to 24V AC or DC input into eight independently controlled, fuse-protected outputs. Outputs are triggered by normally open dry contacts or open collector sink inputs from an access control system, card reader, keypad, push button or PIR, and they power mag locks, electric strikes and magnetic door holders in fail-safe or fail-secure mode.

Each output can be switched power, a 5 A dry Form C relay contact (with its fuse removed) or a combination, and eight unswitched auxiliary outputs are also provided. Output fuses are 3.5 A with a 10 A main fuse, and total output is limited by the power supply to 10 A maximum. The board can run from one common supply or from two isolated supplies, one for the board and one for lock power, and it draws 0.6 A at 12V or 0.3 A at 24V with all relays energized.

A fire alarm interface accepts a normally open or normally closed dry contact or polarity reversal from an FACP signaling circuit, and fire alarm disconnect is selectable per output, latching or non-latching. The ACM8E is UL Listed for access control system units (UL 294, file BP6714), cUL Listed to CSA C22.2 No. 205-M1983, CSFM Approved and MEA Approved.

  • Best for: distributing and switching lock power for up to eight doors from an access control system.
  • System fit: access control panels, card readers, keypads, push buttons and PIRs as triggers; FACP interface for emergency egress; any UL Listed 12 to 24V access control power supply.
  • Important to know: use a UL Listed access control power supply for UL compliance; installation must follow the Altronix instructions, the NEC and local code.

Why teams choose it

Built for secure sites

  • Eight controlled outputs

    each one selectable as fail-safe or fail-secure power or a 5 A Form C contact.

  • Per-output fire alarm disconnect

    choose which outputs release on FACP alarm, latching or non-latching.

  • Isolated power option

    separate board and lock power inputs by cutting jumpers J1 and J2.

  • Status at a glance

    red LEDs show each energized output and a green LED shows FACP trigger.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUACM8E
General
Brand Altronix
Model ACM8E
Device Type Access power controller, 8 fused outputs
Trigger Inputs 8; normally open dry contact, open collector sink, or any combination
Switched Outputs 8; fail-safe and/or fail-secure
Form C Outputs 8 dry Form C relays, 5 A (with output fuse removed)
Auxiliary Outputs 8 unswitched
FACP Input Normally open or normally closed dry contact, or polarity reversal from FACP signaling circuit
Fire Alarm Disconnect Selectable per output; latching or non-latching
FACP Output Relay Form C, 1 A at 28 VDC (not UL evaluated)
Indicators Red LEDs per output relay energized; green LED FACP triggered
Terminals Removable terminal blocks
Electrical
Operating Voltage 12 to 24V AC or DC, no setting required (AC use not UL evaluated)
Power Supply One common input
Power Supply Detail Or two isolated inputs (board and lock power)
Current Draw 0.6 A at 12V, 0.3 A at 24V, all relays energized
Output Fuses 3.5 A per output, 250V
Main Fuse 10 A
Total Output Current Set by the power supply, 10 A maximum
Power Limited Class 2 when used with a Class 2 power supply
Physical
Weight Approx. 9.8 lb (4.45 kg)
Environmental
Operating Temperature 0 to 49 C ambient
Heat Output 3.68 BTU/hr at 12V or 24V
Listings and Approvals
Agency Approvals UL Listed for Access Control System Units (UL 294), UL file BP6714; cUL Listed to CSA C22.2 No. 205-M1983; CSFM Approved; MEA Approved
UL 294 Performance Levels Destructive Attack I, Endurance IV, Line Security I, Stand-by Power I
