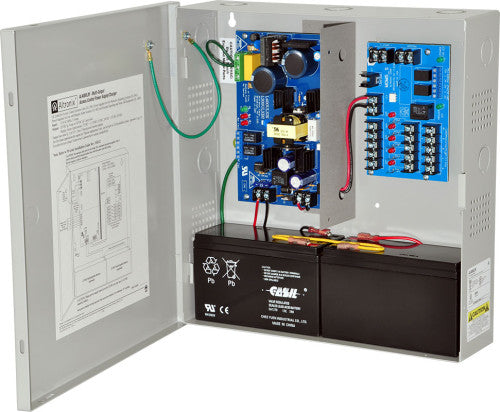

Altronix AL400ULM 12/24VDC 4A Power Supply/Charger with 5-Output Access Power Distribution, BC300 Enclosure

Part number / SKU
AL400ULM

Works with: BC300 enclosure (included), 12VDC/7AH sealed lead acid or gel batteries (up to two), Fail-safe and fail-secure locking devices, FACP trigger (dry contact or polarity reversal) Confirmed by the manufacturer


$350.93

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Altronix AL400ULM is an access power distribution module with a power supply/charger in a BC300 enclosure. It converts 115VAC, 60 Hz input into five individually PTC protected, Class 2 power-limited outputs at a selectable 12VDC or 24VDC, with 4 A supply current at 12VDC or 3 A at 24VDC.

Each output is rated 2 A, auto-resettable, and the outputs support fail-safe and fail-secure locking devices. The unit accepts a normally open or normally closed supervised trigger input or a polarity reversal input from an FACP, and a Form C relay rated 1 A at 28 VDC energizes when triggered for HVAC shutdown, elevator recall or auxiliary devices. A built-in charger supports sealed lead acid or gel batteries, with Form C supervision of AC fail, low battery and battery presence plus a power fail supervision relay.

The BC300 enclosure measures 12.5 x 13 x 3.25 in, holds up to two 12VDC/7AH batteries and is for indoor wall mounting. Altronix lists the AL400ULM to UL 294, UL 603, UL 1481 and UL 1069, cUL, CSFM and MEA.

  • Best for: powering and releasing access control locks with fire alarm interface from one enclosure.
  • System fit: 12 or 24VDC fail-safe or fail-secure locking devices; FACP trigger by dry contact or polarity reversal; up to two 12VDC/7AH batteries.
  • Important to know: batteries are sold separately; installation must follow the Altronix instructions, the NEC and local code.

Why teams choose it

Built for reliable networks

  • Five protected outputs

    each PTC protected at 2 A, auto-resettable, Class 2 power-limited.

  • Fire alarm interface

    supervised trigger or polarity reversal input with a 1 A Form C relay.

  • Selectable voltage

    12VDC at 4 A or 24VDC at 3 A.

  • Battery backup

    built-in charger with AC fail, low battery and battery presence supervision.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUAL400ULM
General
Brand Altronix
Model AL400ULM
Device Type Access power distribution module with power supply/charger
Outputs 5 PTC protected, Class 2 power-limited, 2 A each, auto-resettable
Lock Modes Fail-safe and fail-secure
Trigger Inputs Normally open or normally closed supervised input; polarity reversal input from FACP
Output Relay Form C, 1 A at 28 VDC, energizes when triggered
Battery Charger Sealed lead acid or gel; automatic switchover on AC failure
Supervision AC fail, low battery and battery presence (Form C); power fail supervision relay
AC Fail Report Delay 30 seconds (factory) or 6 hours, selectable
Indicators AC input and DC output LEDs; red output status LEDs; power and trigger LEDs
Electrical
Input 115VAC, 60 Hz, 3.5 A
Input Fuse 5 A / 250V
System AC Input Requirement 402.5 VA
Operating Voltage 12VDC or 24VDC, selectable
Output Current 4 A at 12VDC; 3 A at 24VDC
Burglar Alarm Voltage Range 10 to 13.2 VDC (12V); 20 to 26.4 VDC (24V)
Protection Short circuit and thermal overload
Physical
Enclosure BC300, wall mount, indoor
Dimensions 12.5 W x 13 H x 3.25 D in (317.5 x 330.2 x 82.6 mm)
Knockouts 1/2 in and 3/4 in combination
Battery Space Up to two 12VDC/7AH batteries
Weight Approx. 7.6 lb (3.45 kg)
Environmental
Operating Temperature 32 to 120 F (0 to 49 C)
Storage Temperature -4 to 158 F (-20 to 70 C)
Relative Humidity 85 percent +/- 5 percent
Heat Output Approx. 25 BTU/hr at 12VDC; 37 BTU/hr at 24VDC
Listings and Approvals
Agency Approvals UL 294 (Access Control System Units); UL 603 (Power Supplies for Burglar Alarm Systems); UL 1481 (Power Supplies for Fire Protective Signaling Systems); UL 1069 (Hospital Signaling and Nurse Call Equipment); cUL to CSA C22.2 No. 205-M1983; CSFM Approved (file 1335-0100); MEA Approved
UL File S4707
