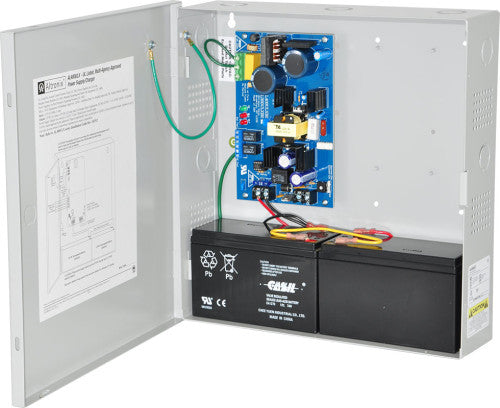

Altronix AL400ULX 12/24VDC 4A Power Supply/Charger, BC300 Enclosure

Part number / SKU
AL400ULX

Works with: BC300 enclosure (included), Sealed lead acid or gel standby batteries Confirmed by the manufacturer


$290.41

Special order· Lead time confirmed by our team after you order.

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Altronix AL400ULX is a power supply/charger in a BC300 enclosure that converts 115VAC, 60 Hz input into a Class 2 rated, power-limited 12VDC or 24VDC output, selectable, at 4 A (12VDC) or 3 A (24VDC). The output is filtered and electronically regulated with short circuit and thermal overload protection.

A built-in charger supports sealed lead acid or gel batteries at up to 0.7 A and switches to standby battery automatically on AC failure with zero voltage drop. Form C contacts supervise AC fail (30 second factory or 6 hour delay), low battery and battery presence. Altronix lists the AL400ULX to UL 294, UL 603, UL 1481 and UL 1069, cUL and ULC-S318-96, CSFM, MEA and FM, and states it is NFPA 72 compliant. The indoor BC300 enclosure measures 12.5 x 13 x 3.25 in.

  • Best for: 12 or 24VDC power with battery backup for access control, burglar alarm and fire protective signaling loads.
  • System fit: access control, burglar alarm, fire protective signaling and nurse call equipment needing 12 or 24VDC; sealed lead acid or gel batteries.
  • Important to know: batteries are sold separately; installation must follow the Altronix instructions, the NEC and local code.

Why teams choose it

Built for reliable networks

  • Selectable output

    12VDC at 4 A or 24VDC at 3 A, Class 2 power-limited.

  • Battery backup

    0.7 A charger with zero-drop switchover on AC failure.

  • Broad listings

    UL 294, UL 603, UL 1481 and UL 1069, plus CSFM, MEA and FM.

  • Supervised

    Form C contacts for AC fail, low battery and battery presence.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUAL400ULX
General
Brand Altronix
Model AL400ULX
Device Type Power supply/charger in enclosure
Output 1 output, Class 2 rated, power-limited; filtered and electronically regulated
Protection Short circuit and thermal overload
Battery Charger Sealed lead acid or gel; automatic switchover on AC failure, zero voltage drop
Supervision AC fail, low battery and battery presence (Form C contacts)
AC Fail Report Delay 30 seconds (factory) or 6 hours, selectable
Indicators AC input, DC output and battery LEDs
Electrical
Input 115VAC, 60 Hz, 3.5 A
Input Fuse 3.5 A / 250V
System AC Input Requirement 402.5 VA
Operating Voltage 12VDC or 24VDC, selectable
Output Current 4 A at 12VDC; 3 A at 24VDC
Burglar Alarm Voltage Range 11.5 to 13 VDC (12V); 23 to 26 VDC (24V)
Maximum Charge Current 0.7 A
Physical
Enclosure BC300, wall mount, indoor
Dimensions 12.5 W x 13 H x 3.25 D in (317.5 x 330.2 x 82.6 mm)
Knockouts 1/2 in and 3/4 in combination
Weight Approx. 6.95 lb (3.15 kg)
Environmental
Operating Temperature 32 to 120 F (0 to 49 C)
Storage Temperature -4 to 158 F (-20 to 70 C)
Relative Humidity 85 percent +/- 5 percent
Heat Output Approx. 25 BTU/hr at 12VDC; 37 BTU/hr at 24VDC
Listings and Approvals
Agency Approvals UL 294 (Access Control System Units); UL 603 (Power Supplies for Burglar Alarm Systems); UL 1481 (Power Supplies for Fire Protective Signaling Systems); UL 1069 (Hospital Signaling and Nurse Call Equipment); cUL to CSA C22.2 No. 205-M1983; ULC-S318-96; CSFM Approved (file 1335-0100); MEA Approved; FM Approved
Standards NFPA 72 compliant
