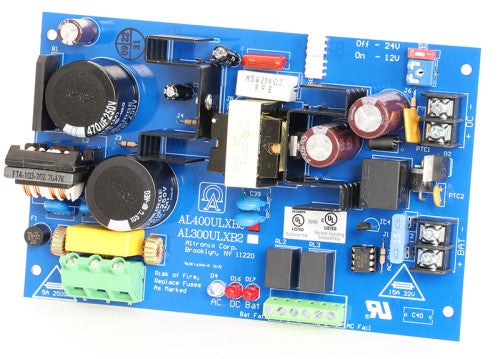

Altronix AL400ULXB2 12VDC 4A or 24VDC 3A Power Supply/Charger Board

Part number / SKU
AL400ULXB2

Works with: Sealed lead acid or gel standby batteries, Replaces AL400ULXB Confirmed by the manufacturer


$203.67

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Altronix AL400ULXB2 is a power supply/charger board that converts 115VAC, 60 Hz input into a Class 2 rated, power-limited output selectable at 12VDC 4 A or 24VDC 3 A. It replaces the AL400ULXB and delivers a filtered, electronically regulated output with short circuit and thermal overload protection.

A built-in charger supports sealed lead acid or gel batteries and switches to standby battery on AC failure with zero voltage drop. Form C contacts supervise AC fail (30 second factory or 6 hour delay), low battery and battery presence, and LEDs show AC input, DC output and battery status. The board measures 4.5 x 7.1 x 1.44 in, weighs 0.65 lb and is listed to UL 603, UL 294, UL 1481 and UL 1069 and cUL.

  • Best for: building a 12 or 24VDC power supply into an enclosure for access control, burglar alarm or fire protective signaling loads.
  • System fit: 12 or 24VDC access control, burglar alarm, fire protective signaling and nurse call loads; replaces AL400ULXB.
  • Important to know: batteries are sold separately; installation must follow the Altronix instructions, the NEC and local code.

Why teams choose it

Built for reliable networks

  • Selectable output

    12VDC at 4 A or 24VDC at 3 A, Class 2 power-limited.

  • Drop-in replacement

    Altronix lists it as the replacement for the AL400ULXB.

  • Battery backup

    built-in charger with zero-drop switchover on AC failure.

  • Four UL listings

    UL 603, UL 294, UL 1481 and UL 1069.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUAL400ULXB2
General
Brand Altronix
Model AL400ULXB2
Device Type Power supply/charger board
Replaces AL400ULXB
Output Class 2 rated, power-limited; filtered and electronically regulated
Protection Short circuit and thermal overload
Battery Charger Sealed lead acid or gel; automatic switchover on AC failure, zero voltage drop
Supervision AC fail, low battery and battery presence (Form C contacts)
AC Fail Report Delay 30 seconds (factory) or 6 hours, selectable
Indicators AC input, DC output and battery LEDs
Electrical
Input 115VAC, 60 Hz, 3 A
Input Fuse 3.5 A / 250V
System AC Input Requirement 402.5 VA
Operating Voltage 12VDC or 24VDC, selectable
Output Current 4 A at 12VDC; 3 A at 24VDC
Physical
Dimensions 4.5 W x 7.1 L x 1.44 H in (114 x 180 x 37 mm)
Weight Approx. 0.65 lb (0.29 kg)
Environmental
Operating Temperature 32 to 120 F (0 to 49 C)
Storage Temperature -4 to 158 F (-20 to 70 C)
Relative Humidity 85 percent +/- 5 percent
Heat Output Approx. 25 BTU/hr at 12VDC; 37 BTU/hr at 24VDC
Listings and Approvals
Agency Approvals UL 294 (Access Control System Units); UL 603 (Power Supplies for Burglar Alarm Systems); UL 1481 (Power Supplies for Fire Protective Signaling Systems); UL 1069 (Hospital Signaling and Nurse Call Equipment); cUL to CSA C22.2 No. 205-M1983
