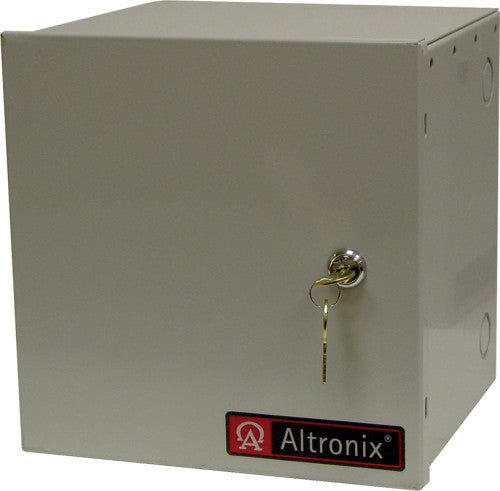

Altronix BC1240 Battery Enclosure for One 12VDC/40AH Battery, 9.5 x 9.5 x 7.5 in
- Part number / SKU
- BC1240
- NEMA 1 enclosure
Works with: 12VDC/40AH battery (one), MM4 mounting magnets, MM8 mounting magnets, MM12 mounting magnets, MM24 mounting magnets, WM5 magnetic cable tie mounts and 2 more models Confirmed by the manufacturer
In stock
- Warranty
- Manufacturer warranty
Need 5 or more? Request volume pricing
- (305) 357-6575
- 100K+ orders shipped
- 30-day returns
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
Why teams choose it
Built for secure sites
-
Sized for 40AH
holds one 12VDC/40AH battery.
-
Tamper protected
camlock plus two tamper switches.
-
Ready to wire
24 in red and black battery wires included.
-
Steel cabinet
18 gauge steel with combination knockouts.
Specifications
Technical specifications
| Product identifiers | |
|---|---|
| SKU | BC1240 |
| General | |
| Brand | Altronix |
| Model | BC1240 |
| Device Type | Battery enclosure |
| Battery Capacity | One 12VDC/40AH battery |
| Lock | Camlock |
| Tamper | Two tamper switches |
| Included | 24 in red and black battery wires |
| Door Fastening | Two self-tapping screws |
| Mount Type | Wall mount, indoor |
| Physical | |
| Dimensions | 9.5 H x 9.5 W x 7.5 D in |
| Material | 18 gauge steel |
| Color | Grey |
| Knockouts | 1/2 in and 3/4 in combination |
| Weight | 6.1 lb (2.77 kg) |
| Environmental | |
| IP Rating | NEMA 1 enclosure |
