TELEWAVE, INC

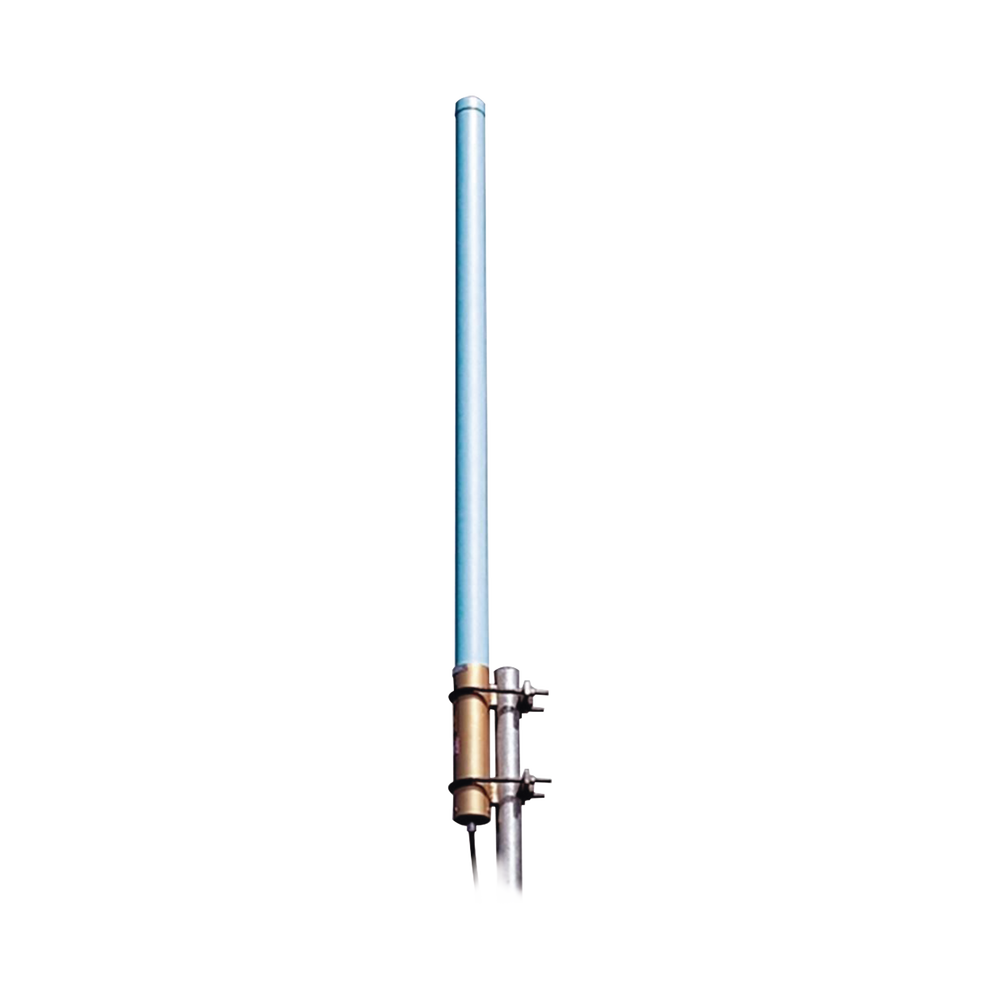

Telewave ANT-150F2 Collinear Fiberglass Base Antenna 148-174 MHz 6dB 500W
Product identifier
SKU
ANT-150F2
$1,700.50
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Collinear Fiber Glass Base Antenna, 148-174 MHz, 2.5 dB, 500 Watt
- Frequency Range: 148-174 MHz.
- Gain: 6 dB.
- Bandwidth: 7 MHz.
- Power rating (Typ.): 500 Watts.
- Impedance: 50 Ohm.
- VSWR: 1.5:1 or less.
- Pattern: Omnidirectional.
- Vertical beamwidth: 38º
- Connector: N Female (Optional 7-16 DIN Female).
- Dimensions (L. x base diam.): 60" x 2.75".
- Tower weight (antenna + clamps): 12 lb.
- Shipping weight: 16 lb.
- Wind rating / 0.5" ice: 200 / 150 MPH.
- Mounting: Includes a Dual Clamp for a 1.5" to 3" O.D. support pipe.
*Ask for delivery time.
Key Features
- Fiberglass Construction With Corrosion-Resistant Cool Blue Radome
- Wind Resistance up to 200 mph Without Ice Accumulation
- Bronze and Copper Elements With DC Ground Connection
- UV, Ice, Salt, and Acid Rain Resistant Environmental Protection
- Omnidirectional Pattern for Uniform 360-Degree Coverage
- Includes Double Clamp for 1.5 in to 3 in Mounting Tubes
Product support
Need help confirming the right configuration?
Share the model, application or current system. A specialist will help you confirm compatibility.
