TELEWAVE, INC
Telewave ANT450F-6 Omnidirectional 445-480 MHz 500W Fiberglass Antenna 6dBi
Product identifier
SKU
ANT450F-6
$2,000.70
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details

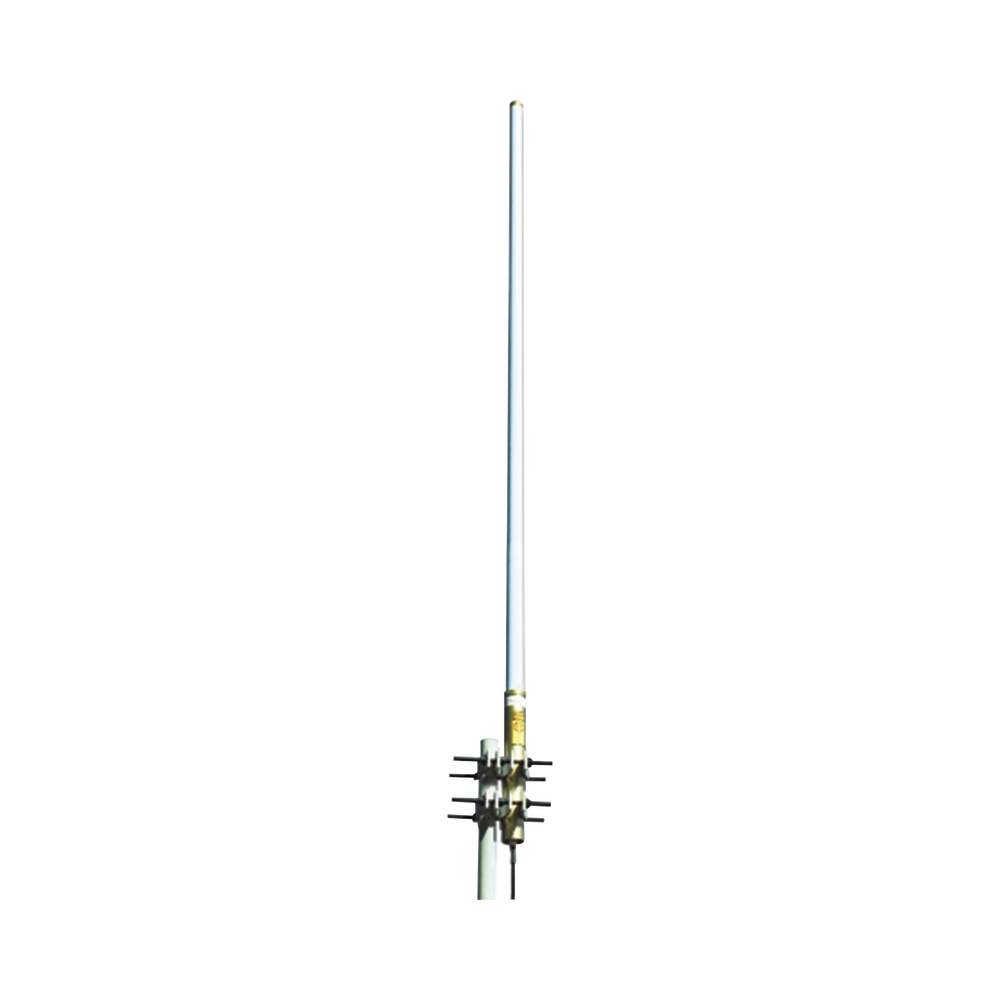

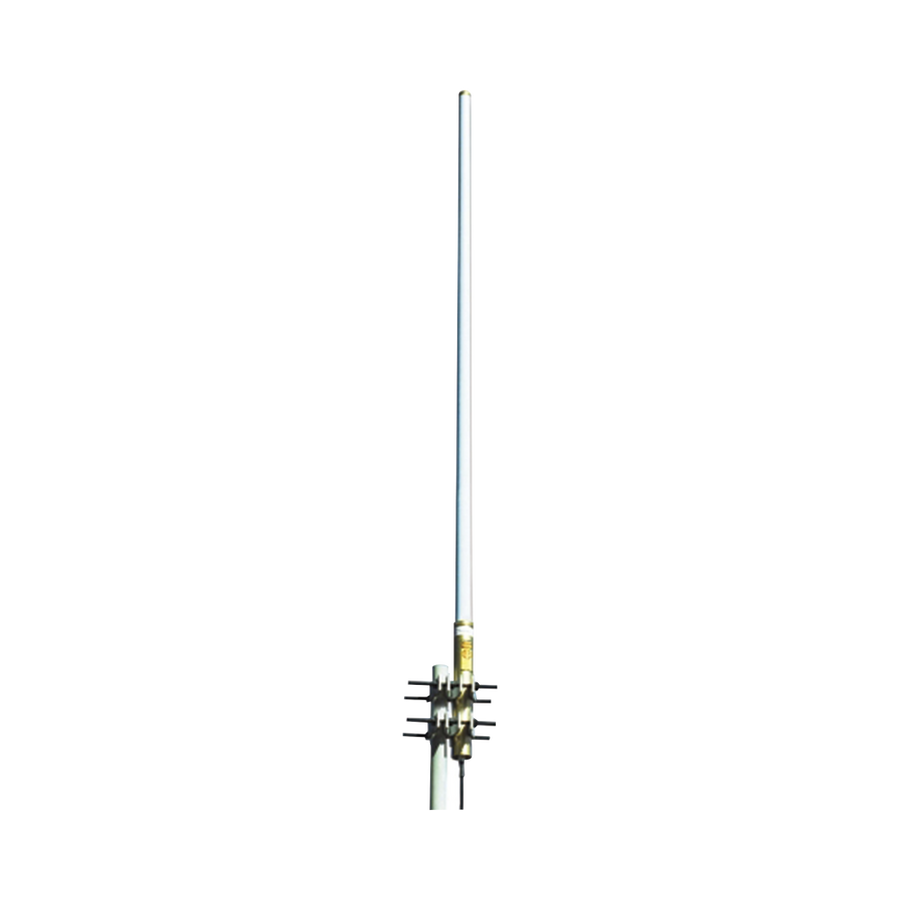

Omnidirectional Fiber Glass Base Antenna, 445-480 MHz, 500 Watt.
- Frequency Range: 445-480 MHz.
- Gain: 6 dB.
- Band Width: 35 MHz.
- Pattern: Omnidirectional.
- Vertical beamwidth: 18°
- Power Rating (Typ): 500 Watts.
- Connector: N Female.
- Lenght: 94 in.
- Base Diameter: 2.375 in
- Wind Rating: 150 mph.
- Mounting: Includes a Dual Clamp Set ANTC482.
*Ask for delivery time.
Key Features
- Fiberglass Construction With Bronze and Copper Elements
- Wind Resistance up to 150 mph Without Ice Loading
- Includes ANT-C482 Mounts for 1.5" to 3.5" OD Poles
- VSWR 1.5:1 or Better for Optimal Signal Quality
- Cool Blue UV-Resistant Housing for Extreme Environments
- Includes 24 ft RG-213 Jumper Cable With N Male Connector
