ALTA LABS

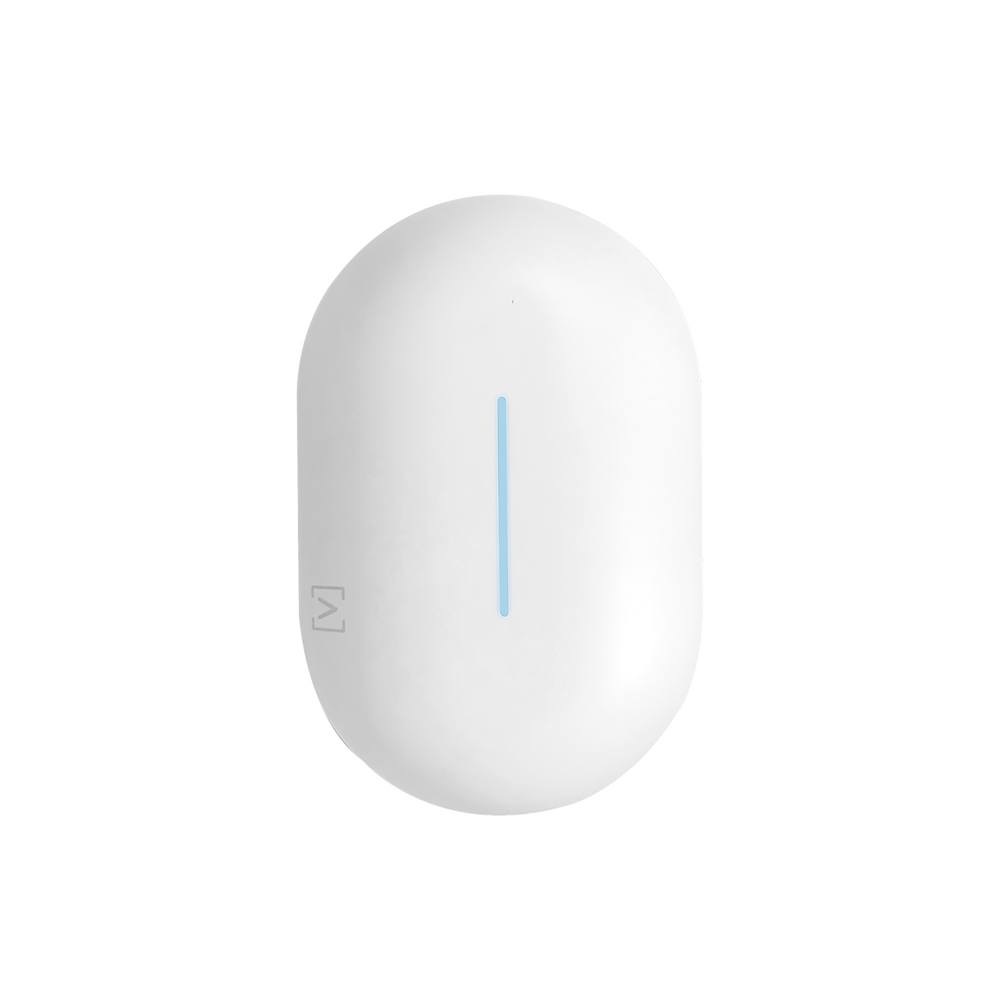

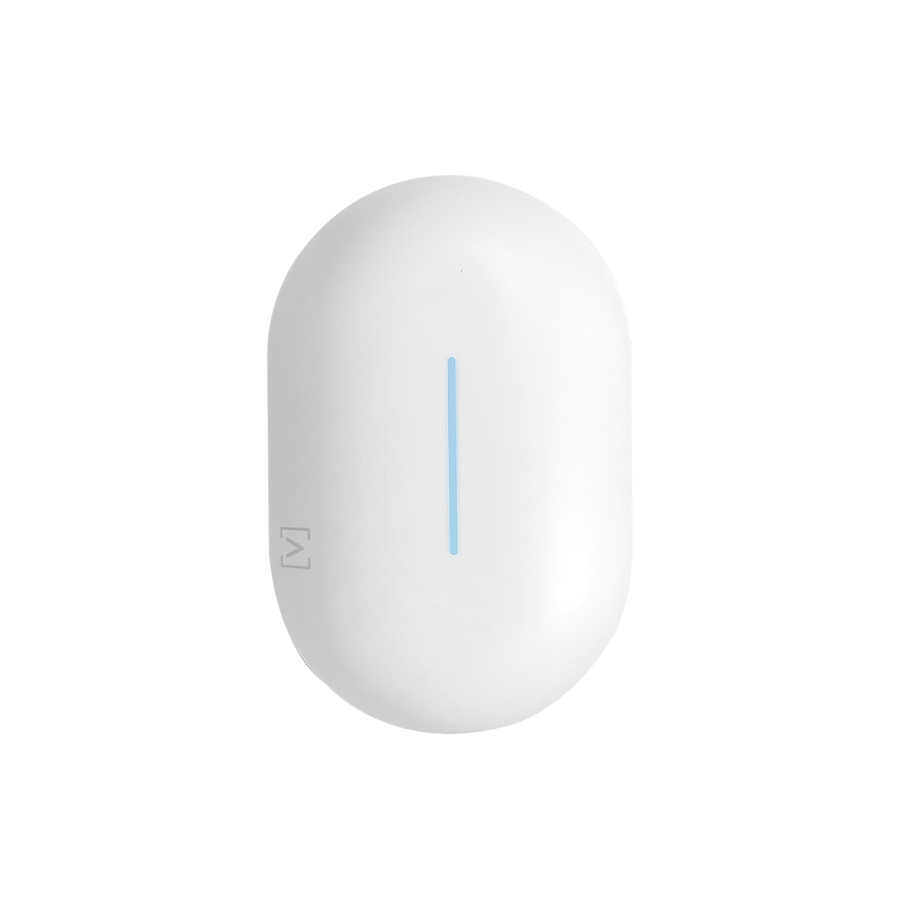

Alta Labs AP6-AL Wi-Fi 6 Dual Band Access Point PoE+ 2x2 MIMO
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
AP6 – Wi-Fi 6 Access Point for Modern Networks
Alta Labs creates revolutionary network technology driven by proprietary software and hardware designs. The AP6 access point features a compact form factor and an elegant aesthetic that integrates seamlessly into enterprise, commercial, and residential environments.
The AP6 is powered via Ethernet for easy deployment and a clean installation. It includes Alta Labs’ versatile patented QuickMount™ technology, enabling fast, secure, and professional mounting.
- Clean, modern design for visible installations.
- Professional mounting with QuickMount™.
- Powered by PoE+ for simple cabling and fewer adapters.
Key Features
- Maximum range and consistent performance.
- Free and scalable cloud-based management.
- Mobile application for setup and monitoring.
- High-performance Wi-Fi 6.
- Multiple password authentication (AltaPass).
- DPI engine for content and application filtering.
- Scanning and changes on the go.
- AP grouping by colors for easy identification.
- Flexible SSID broadcasting options.
Physical & Electrical
| Network interfaces | Ethernet, Wi-Fi, Bluetooth |
| Management interface | (1) GbE RJ45 |
| Power supply | PoE+ |
| Power method | 802.3at PoE or 48V 0.5A passive injector (NOT included). Recommended: WI-POE51-48V V2 or RG-POE-AT30(US) |
| Maximum consumption | 20 W |
| Power transmission | 2.4 GHz 23 dBm / 5 GHz 23 dBm |
| MIMO | 2.4 GHz 2×2 / 5 GHz 2×2 |
| Antenna gain | 2.4 GHz 4 dBi / 5 GHz 4 dBi |
Cloud-Based Management
Allows users to access and manage their network from anywhere with an internet connection.
- Scalable management across multiple sites.
- Real-time network and device status.
- Customizable dashboard.
- Global cloud infrastructure.
- Integrated DPI engine.
Multiple Password Authentication
Use different Wi-Fi passwords to separate network traffic and manage user access. Each password can be associated with a specific upload/download speed, VLAN, or used to bypass schedule and access-point restrictions, providing more granular control for guests, staff, and devices.
DPI Engine
Advanced filtering allows you to block content by application, selectable from an extensive predefined list. You can also enter domain names for precise URL blocking, helping protect the network from inappropriate content and unwanted traffic.
Package Content
Key Features
- Cloud Management With Remote Control and Real-Time Monitoring
- Compact Design for Seamless Integration in Any Environment
- QuickMount Technology for Fast and Simple Installation
- DPI Engine for Advanced Application-Based Content Filtering
- Multiple Password Authentication With VLAN and Speed Control
- 2.4 GHz and 5 GHz Bands With 23 dBm Transmit Power
