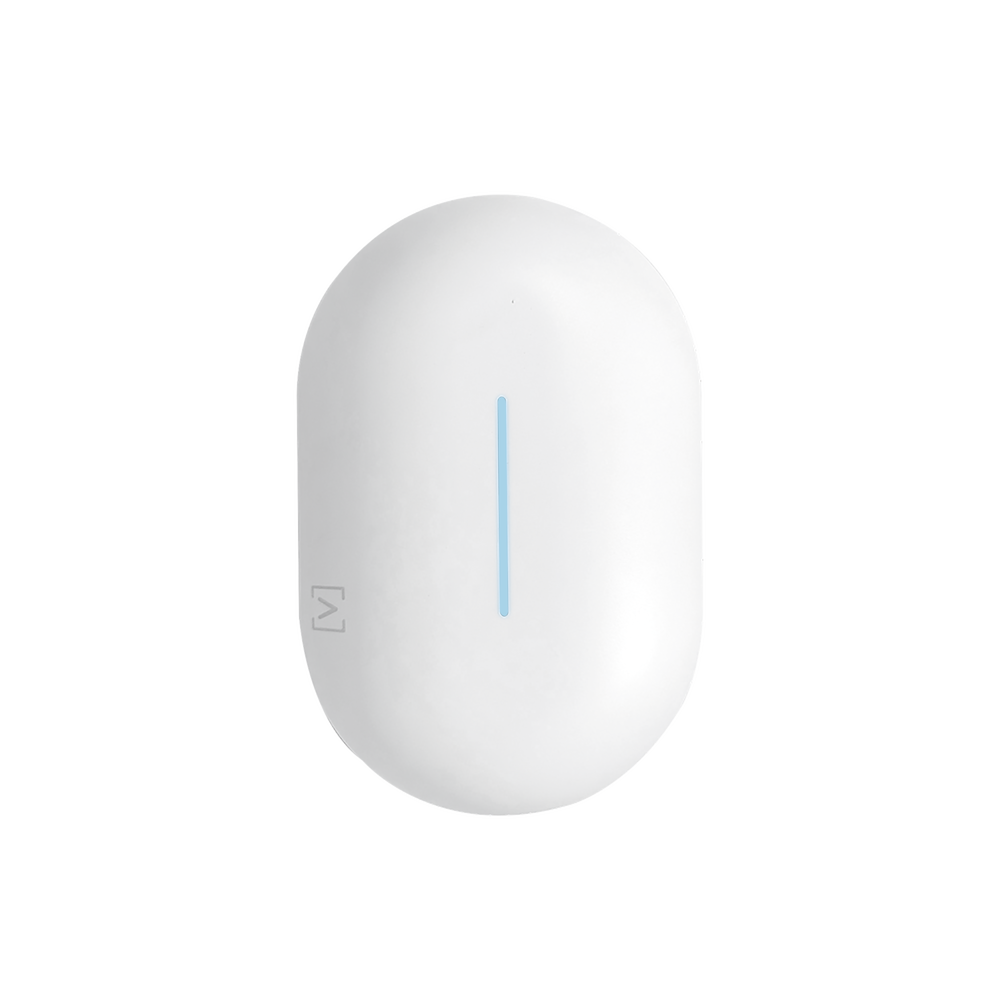

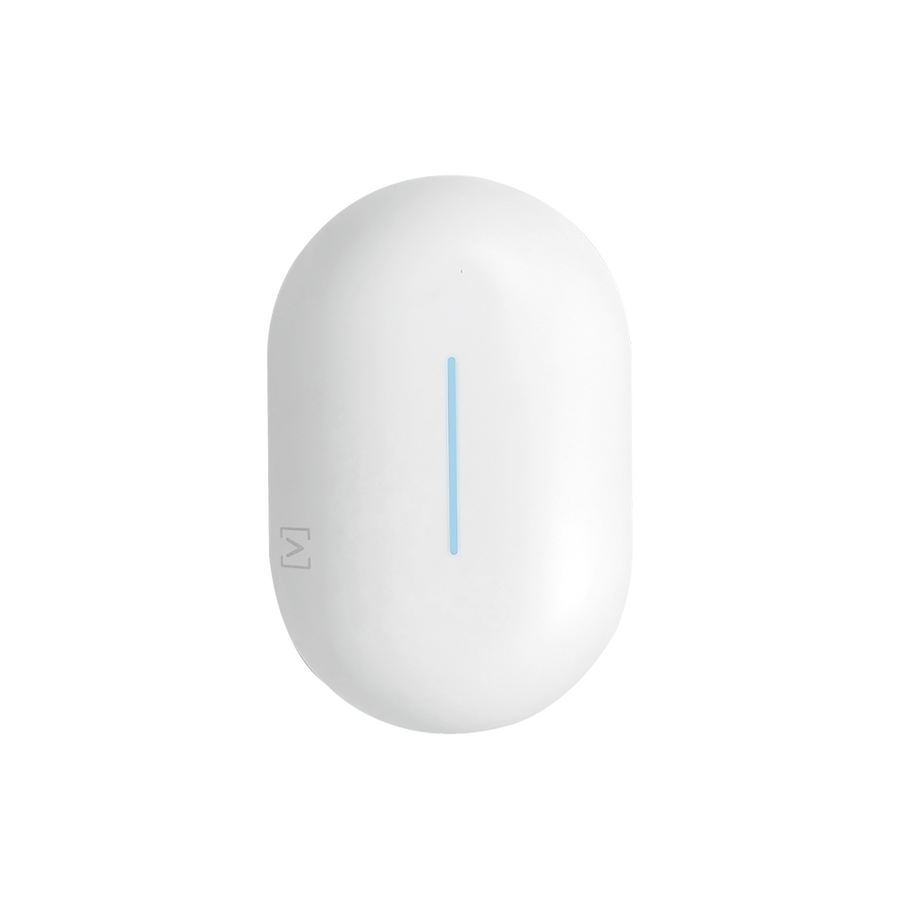

Alta Labs AP6-PRO 6-Stream Wi-Fi 6 Access Point 6.3 Gbps IP54
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
AP6-Pro – Ultra-Performance Wi-Fi 6 with Wi-Fi 7 Enhancements
The AP6-Pro from Alta Labs delivers exceptional Wi-Fi speed and efficiency with a cutting-edge 6-stream Qualcomm® platform supporting 4096 QAM, a major enhancement used in Wi-Fi 7.
Designed with a compact and elegant form factor, the AP6-Pro integrates seamlessly into enterprise, commercial, and residential environments. Its IP54 rating allows deployment in protected outdoor locations such as eaves and covered patios.
- 6.3 Gbps combined Wi-Fi capacity.
- 4×4 MU-MIMO on 5 GHz for high-density environments.
- 100% cloud-managed through Alta Labs’ free cloud platform.
Key Features
- 6-stream Wi-Fi 6 with 4096 QAM modulation.
- Superior long-range and high-density performance.
- Fast roaming and advanced mesh networking.
- Free and scalable cloud management.
- Mobile app for rapid setup and monitoring.
- AltaPass™ multi-password authentication.
- DPI filtering for apps and traffic types.
- Real-time scanning & on-the-fly changes.
- SSID and AP grouping with color coding.
Physical & Electrical
| Network Interfaces | Ethernet, Wi-Fi, Bluetooth |
| Management | (1) GbE RJ45 |
| Power Input | PoE+ |
| Power Method | 802.3at PoE or 48V Passive (not included) Recommended: WI-POE51-48V V2 or RG-POE-AT30(US) |
| Max Consumption | 20 W |
| TX Power | 2.4GHz 23 dBm / 5GHz 23 dBm |
| MIMO | 2×2 (2.4GHz) / 4×4 (5GHz) |
| Antenna Gain | 3.3 dBi / 4.8 dBi |
Cloud Management
Manage your entire network from anywhere with a modern, powerful cloud infrastructure.
- Multi-site management at scale.
- Real-time monitoring & alerts.
- Customizable admin dashboards.
- Global cloud infrastructure.
- Integrated DPI visibility & filtering.
AltaPass™ – Multiple Password Authentication
Assign multiple Wi-Fi passwords under a single SSID, each with its own rules:
- Different upload / download speeds
- VLAN mapping per password
- Schedule & access restrictions
Advanced DPI Engine
Block apps, websites, and traffic categories using the built-in Deep Packet Inspection engine. Add custom domains for granular filtering and stronger content control.
Package Contents
Key Features
- Wi-Fi 6 AX Technology With 6.3 Gbps Total Throughput
- Supports up to 350 Concurrent Clients for High-Density Environments
- 4x4 MU-MIMO Technology for Efficient Multi-User Performance
- Integrated DPI Filtering for Application and Domain Blocking
- QuickMount System for Easy Ceiling or Wall Installation
- Cloud Management Platform With Free Mobile App Access
