Zkteco ATLAS-100-KIT-US 1-Door Access Control Kit PoE 5000 Users

Description:

Atlas100-1 Door KIT is the best simple and affordable access control package. It controls one door, and requires no software. The access control panel is PoE powered and communicates via Wi-Fi.

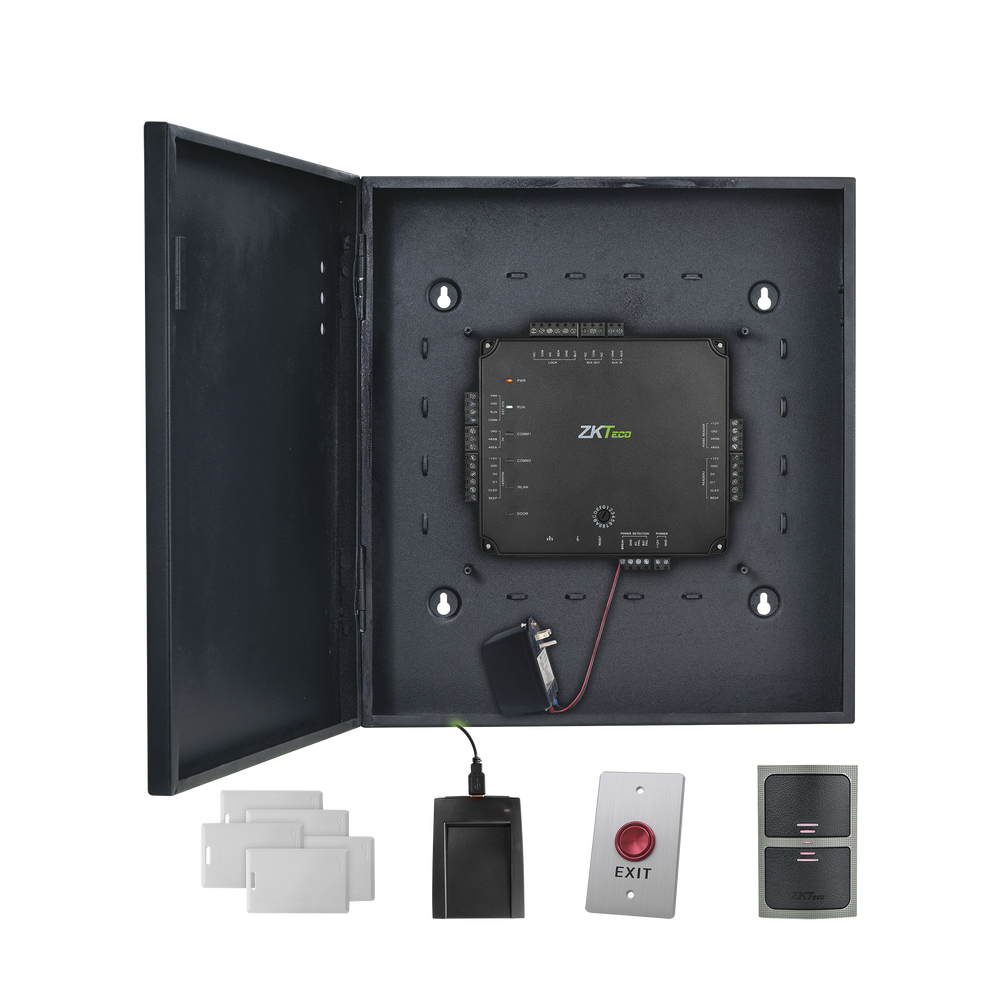

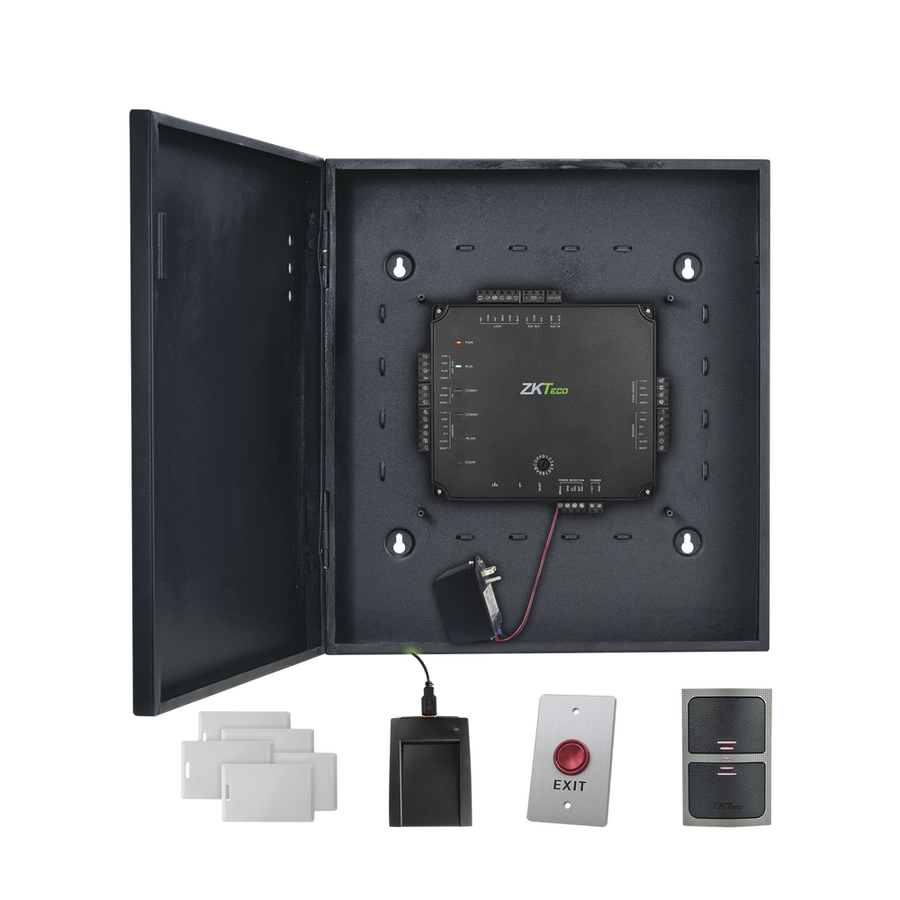

The kit includes:

• 1 access control panel
• 1 metal enclosure
• 1 card enrollment reader
• 1 card reader
• 1 exit button
• 50 prox cards.

Advanced Access Control Features No software required. Built-in Web Application provides advanced access control features including User Enrollment & Management, Door Control & Monitoring, Lockdown, Reporting, Maps, Anti-Passback, First-Card Opening, Multi-Card Opening, Card Design and Duress PINs.

Features.

• Advanced Access Control:
No software required. Built-in Web Application provides advanced access control features, including User Enrollment & Management, Door Control & Monitoring, Lockdown, Reporting, Maps, Anti-Passback, First-Card Opening, Multi-Card
Opening, Card Design, and Duress PINs.
• Door Control and More:
User-programmable auxiliary relays can be used to control lights, alarms, annunciators, intrusion detection panels, additional locking devices, or any other external electrical device which a switch can control.
• Capacity
: Atlas Series supports up to 84 doors when adding multiple secondary Atlas Series panels to the primary Atlas Series panel. Each Atlas panel can store up to 5,000 cards and 10,000 transactions
• Choice of Readers
: Atlas Series supports any 3rd-party readers communicating with Wiegand or OSDP communication protocols.
• Mobile App
: Numerous convenient features include: remotely unlocking doors, universal lockdown & recovery, access to events & alarms, adding/modifying users, and much more.
• Lowest Total Cost of Ownership:
Atlas Series panels come in several models to suit different project needs and reduce the cost of unused capacity.

Specifications:

• Capacity:
  • Users 5,000
  • Events 10,000
• Browsers Supported:
  • Chrome
  • Firefox
  • Edge
  • Safari
• Types of Readers Supported:
  • ZKTeco KR Series readers
  • 3rd party 125kHz & 13.56MHz readers
  • Wiegand
  • OSDP
  • RS-485 readers
• Communication:
  • TCP/IP
  • Wiegand/OSDP
• Number of Inputs:
  • 3 (1 Exit Button, 1 Door Sensor, 1 Aux)
• Number of Outputs:
  • 2 (1 Form C relay for lock and 1 Form C relay for Aux output)
• Weight:
  • 9 lbs (3.8kg)
• Recommended Power:
  • 12V DC, 3A (PoE)
• Dimensions
  • 14in. X 2.5in. X 12in.
  • 380mm(L) X 80mm(W) x 280mm(H)
