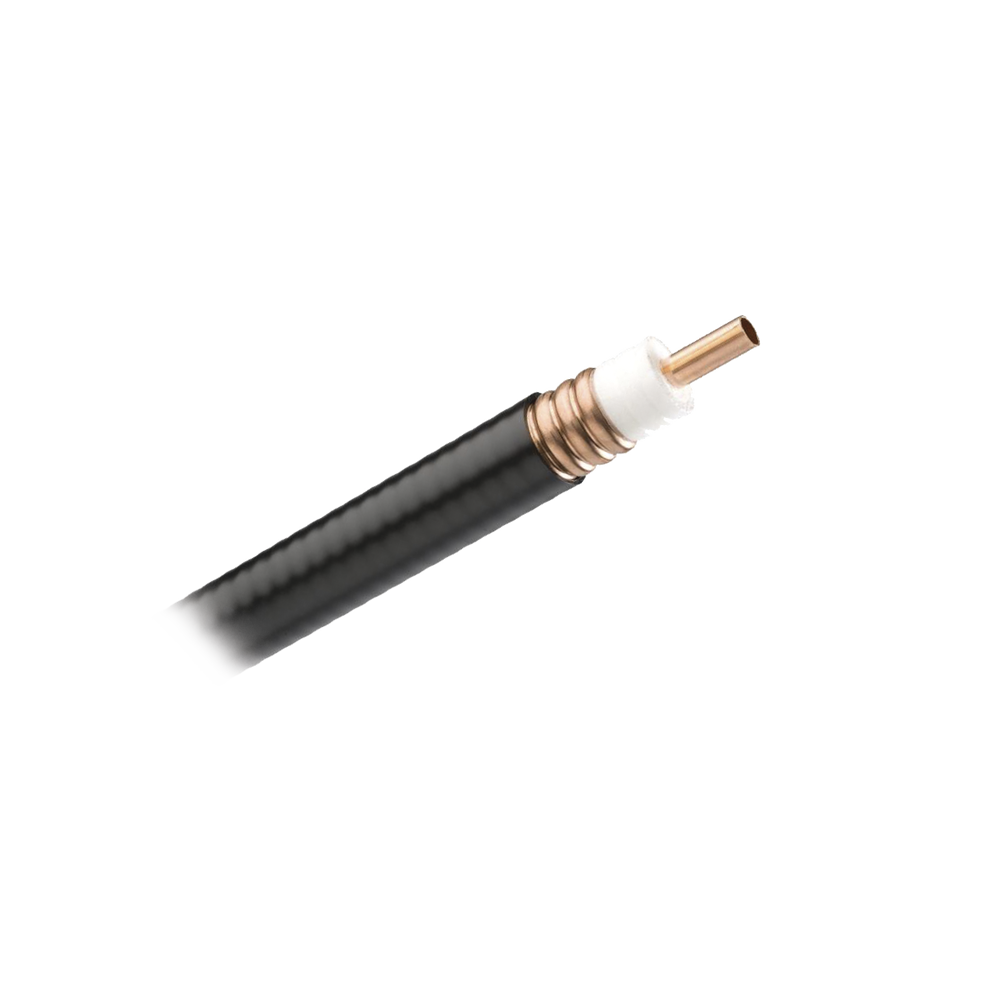

CommScope AVA550 50 Ohm Coaxial RF Cable 1-5000 MHz Low Loss
Product identifier
SKU
AVA550
$16.52
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Electrical Specifications
- Cable Impedance 50 ohm ±1 ohm
- Capacitance 22.0 pF/ft | 73.0 pF/m
- DC Resistance, Inner Conductor 2.16 Ohms/mi | 2.31 Ohms/mi
- DC Resistance, Outer Conductor 1.80 Ohms/mi | 1.80 Ohms/mi
- DC Test Voltage 6000 V
- Inductance 0.184 μH/m | 0.056 μH/ft
- Insulation Resistance 100000 M ohms
- Jacket Spark Test Voltage (rms) 8000 V
- Operating Frequency Band 1 – 5000 MHz
- Peak Power 91.0 kW
- Velocity 91%
*PRICE PER FT*
Key Features
- Solid Corrugated Copper Conductor for Superior RF Performance
- 100% Shielded Construction Eliminates Signal Interference
- Low Attenuation of 0.778 dB at 450 MHz per 98 ft
- Minimal Signal Loss of 1.06 dB at 800 MHz per 98 ft
- Low Density Foam Dielectric Insulation for Optimal Performance
- 91% Velocity Factor Ensures Efficient Signal Transmission
