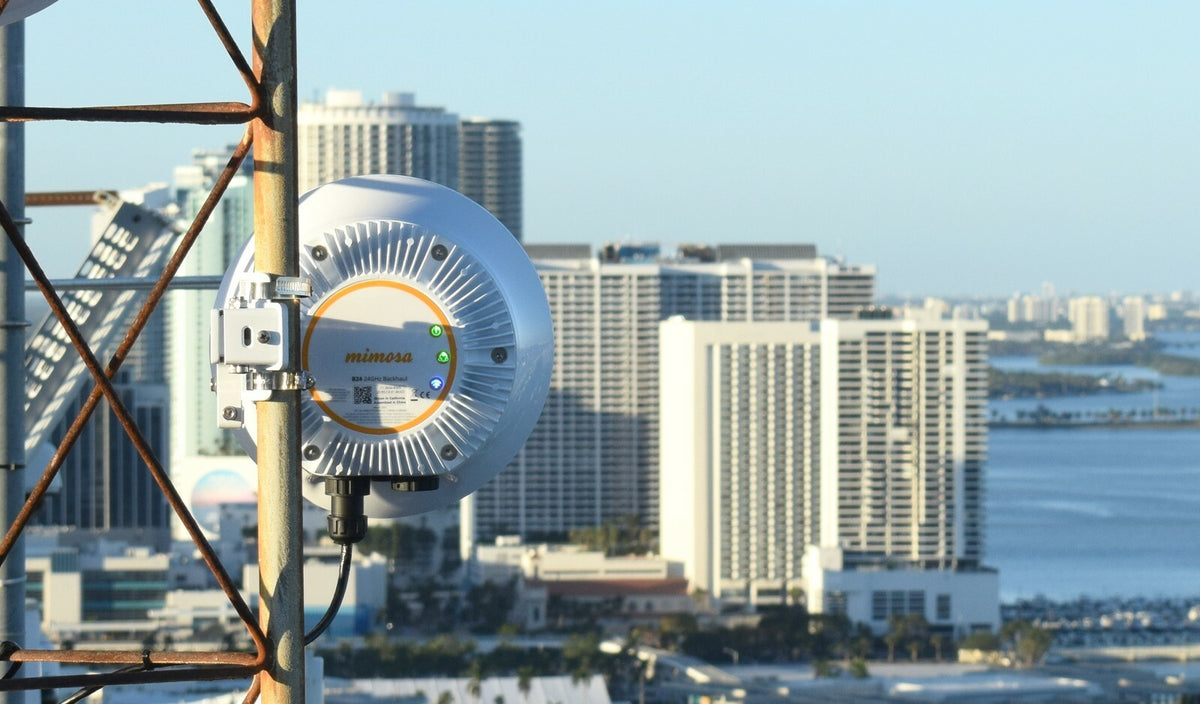

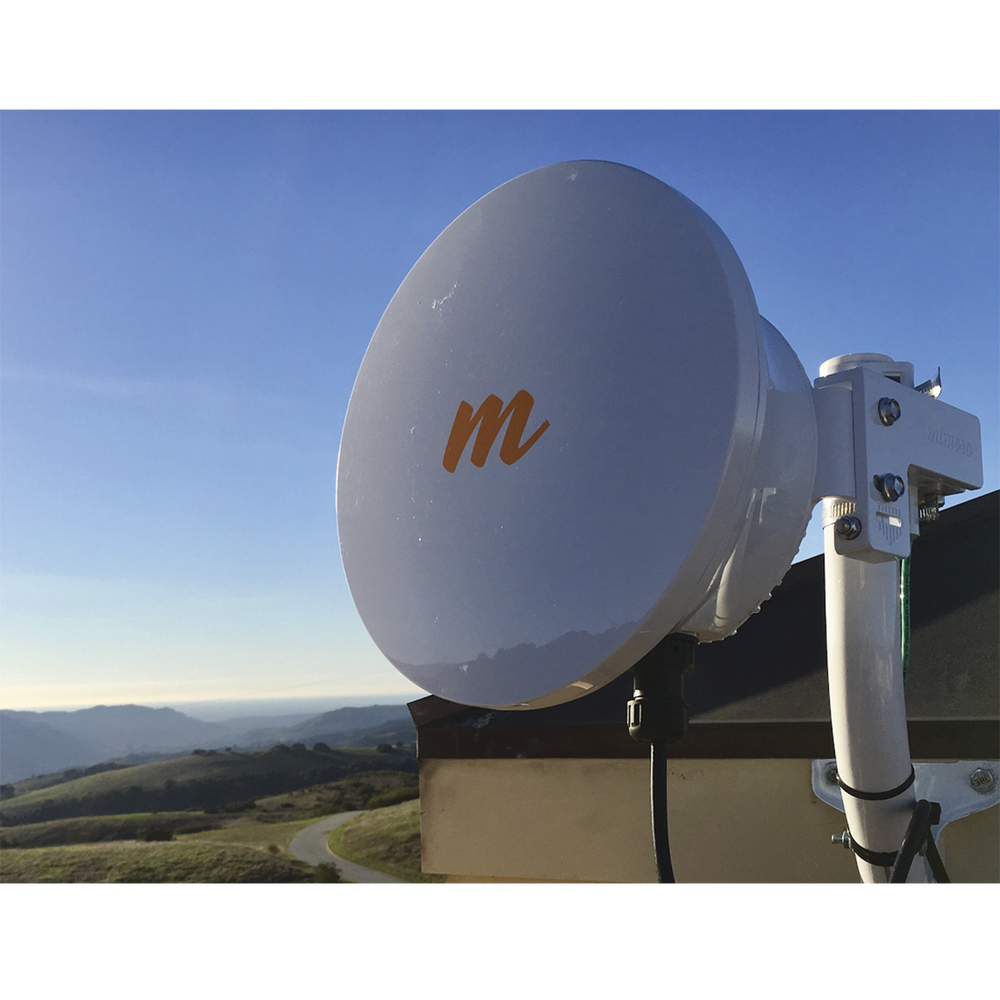

Mimosa B24 Backhaul Radio PTP MIMO 4X4 24 GHz 1.5 Gbps Integrated Antenna 33 dBi

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄

Mimosa B24 24 GHz Point-to-Point Backhaul Radio with Integrated 33 dBi Antenna

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖

24 GHz point-to-point backhaul radio engineered for high-capacity wireless connectivity with integrated 33 dBi antenna, Gigabit throughput capability, fiber SFP support, and adaptive Auto-TDMA technology.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘

Networking – Point-to-Point Systems

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒

• Operates in the 24.0 – 24.25 GHz frequency range
• Supports distances up to 3.2 km in rainy environments
• Up to 1.5 Gbps added throughput in downlink and uplink
• Integrated 33 dBi antenna with dual slant 45º polarization
• Auto-TDMA technology dynamically adapts uplink and downlink traffic allocation
• Supports Gigabit Ethernet and fiber optic SFP interfaces
• Integrated 2.4 GHz 802.11bgn radio for management, alignment, and restoration
• Supports Mimosa Cloud monitoring platform
• IP67-rated enclosure for outdoor deployment
• Includes integrated ESD overvoltage protection
• Supports passive PoE injector or 802.3at power input
• Wind resistance up to 200 km/h

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒

• Brand: Mimosa
• Model: B24
• Product Type: Point-to-Point Wireless Backhaul Radio
• Frequency Range: 24.0 – 24.25 GHz
• Maximum Distance: Up to 3.2 km
• Channel Widths: Single or double 20/40/80 GHz
• Maximum Throughput: Up to 1.5 Gbps DL/UL
• Antenna Gain: 33 dBi
• Polarization: Dual slant 45º
• Azimuth Adjustment: ±2.5°
• Elevation Adjustment: ±1.5°
• Power Consumption: 19.5 W
• Wind Resistance: Up to 200 km/h
• Power Input: 48-50 Vdc, 1.2 A
• Power Options: Passive POE56V injector included or 802.3at compatible
• Network Interfaces: Gigabit Ethernet and SFP fiber optic
• Environmental Rating: IP67
• Operating Temperature: -40°C to 55°C
• Packet Processing Capacity: Up to 1 million packets per second
• Management Radio: Integrated 2.4 GHz 802.11bgn

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒

• Point-to-point wireless backhaul deployments
• High-capacity broadband connectivity
• Enterprise and carrier network infrastructure
• Outdoor long-distance wireless networking applications

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
