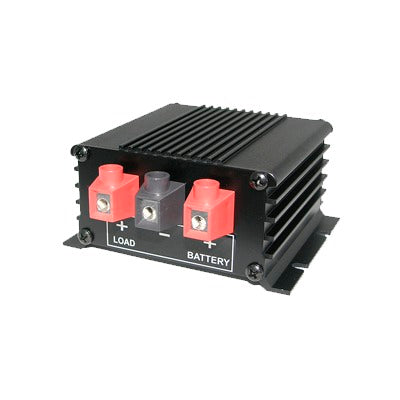

Samlex BBM1225 Battery Back-up Module 25 Amps with 12 Volt Power Supply
Product identifier
SKU
BBM1225
$101.71
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Design Features
- Converts External Power Supply (12 or 24VDC output) to provide battery charging and un-interrupted backup DC power
- Instantaneous transfer of DC load from External Power Supply to External Backup Battery and vice versa
- Suitable for 12V or 24V Lead Acid Battery Systems
- For use with any Samlex or other 12V or 24V DC Power Supply
Specifications
- Input: Up to 27.6 VDC
- Weight: 0.7 lbs (0.3 kg)
- Dimensions: 3.9 x 4.5 x 1.9" (98.8 x 114 x 47.5 mm)
Applications
- For use with any Samlex or other 12V or 24V DC Power Supply
Key Features
- 12V/24V DC Input With Maximum 25A Current Capacity
- 25A DC Output Limit for Reliable Backup Power
- Automatic Battery Charging With 0.1% Precision Accuracy
- Instant Transfer Between External Power and Battery
- Compact Design Measuring 3.9x4.5x1.9 Inches
- Operating Temperature Range 32°F to 104°F
