Bogen BC1 Beam Clamp for Mounting Horn Speakers to I-Beams

Part number / SKU
BC1

Works with: Bogen 15 W and 30 W horn speakers (cast base), Bogen 5 W and 7 W horn speakers (stamped base) Confirmed by the manufacturer


$21.99

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

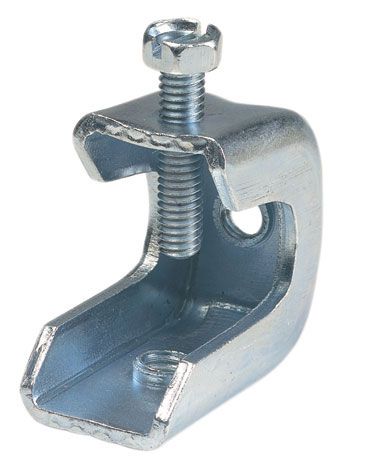

The Bogen BC1 is a beam clamp mounting system that gives an easy, secure way to mount horn speakers to I-beams. The horn base bolts to the clamp, the clamp fastens to the I-beam, and the horn then seats back on its base.

Two bolt lengths are supplied with a lock washer: the longer bolt is for Bogen 15 W and 30 W horns with cast bases, and the shorter bolt is for Bogen 5 W and 7 W horns with stamped bases. Later-model Bogen horns have a flange hole in the base for the clamp; earlier Bogen horns without the hole, and other horns, can be fitted after drilling a 3/8 in hole in the base.

  • Best for: hanging horn speakers from steel I-beams.
  • System fit: Bogen 5 W, 7 W, 15 W and 30 W horn speakers; not for the FMH15T.
  • Important to know: use the bolt length that matches the horn base type, or the clamp and base will not seat properly.

Why teams choose it

Built for reliable networks

  • Beam mounting

    attaches to the web of an I-beam and secures with the clamp bolt.

  • Fits common Bogen horns

    bolt sizes for cast-base 15 W/30 W and stamped-base 5 W/7 W horns.

  • Adaptable

    older or non-Bogen horns can be fitted after drilling a 3/8 in hole in the base.

  • Complete hardware

    bolts in two lengths, lock washer and clamp bolt.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUBC1
General
Brand Bogen
Model BC1
Device Type Horn speaker beam clamp
Mount Type I-beam clamp
For Use With Bogen 15 W and 30 W horns (cast base, longer bolt)
Also For Use With Bogen 5 W and 7 W horns (stamped base, shorter bolt)
Other Horns Earlier Bogen or non-Bogen horns after drilling a 3/8 in hole in the base
Not For Use With FMH15T
Physical
Hardware Bolts in two lengths, lock washer, beam clamp, clamp bolt
Installation Base bolts to clamp; clamp fastens to the I-beam; clamp bolt tightened to secure
