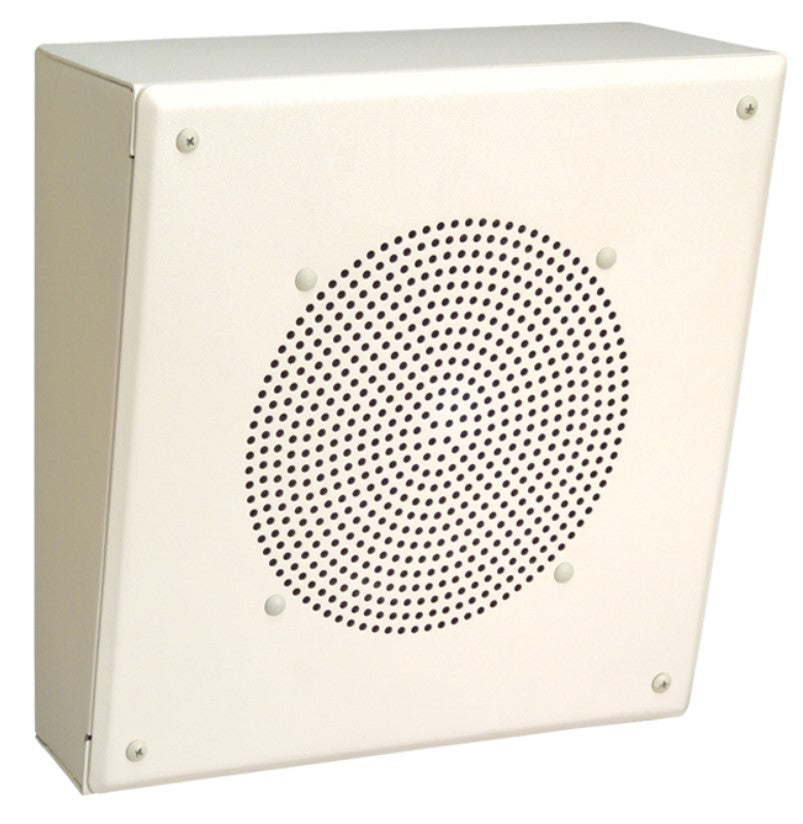

Bogen MB8TSL 8 in Angled Metal Box Speaker, 70V/25V, 4 W

Part number / SKU
MB8TSL

Works with: MB8TSLVR (version with volume control), MB8TSQ (flat-front version) Confirmed by the manufacturer


$56.99

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Bogen MB8TSL is an all-steel, surface-mounted speaker with an 8 in paper cone and a multi-tap 70V/25V transformer. Its front face tilts 12.5 degrees downward, and it is designed mainly for wall mounting.

Transformer taps are 4, 2, 1, 1/2, 1/4 and 1/8 W, with a 4 W maximum. Frequency response is 110 Hz to 15 kHz, minimum sensitivity is 96 dB SPL at 1 W, 1 m on axis, and minimum dispersion is 100 degrees. The painted off-white steel enclosure measures 11-5/8 x 11-5/8 in and weighs 9 lb, with Wiremold knockouts for surface conduit.

Toggle bolts, wood screws, washers and crimp connectors are included for sheetrock or wood mounting. The MB8TSLVR is the same speaker with a recessed volume control in the center of the grille; the MB8TSQ is the flat-front version for ceiling or wall.

  • Best for: wall-mounted paging and voice announcement on 70V or 25V systems.
  • System fit: 70V or 25V constant-voltage paging amplifiers.
  • Important to know: this model has no volume control; choose the MB8TSLVR if local volume adjustment is needed.

Why teams choose it

Built for reliable networks

  • Clear speech

    8 in cone with 110 Hz to 15 kHz response and 96 dB SPL minimum sensitivity.

  • Tilted coverage

    front face angled 12.5 degrees down toward listeners from a wall.

  • Selectable level

    six transformer taps from 1/8 W to 4 W on 70V or 25V lines.

  • Steel enclosure

    full steel, painted off-white, with Wiremold knockouts.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUMB8TSL
General
Brand Bogen
Model MB8TSL
Device Type 70V/25V metal box speaker, angled front
Speaker 8 in paper cone, 6 oz magnet
Frequency Response 110 Hz to 15 kHz
Sensitivity 96 dB SPL at 1 W, 1 m on axis (minimum)
Dispersion 100 degrees (minimum)
Volume Control None (MB8TSLVR adds a recessed volume control)
Electrical
Amplifier Type 70V or 25V constant voltage
Power Taps 4 W, 2 W, 1 W, 1/2 W, 1/4 W, 1/8 W
Maximum Power 4 W
Wiring Selected tap lead to (+), black common lead to (-), with supplied crimp connectors
Physical
Enclosure All-steel, painted
Color Off-white
Front Angle 12.5 degrees downward
Dimensions 11-5/8 in W x 11-5/8 in H; 5-3/8 in deep at top, 3-1/8 in deep at bottom
Weight 9 lb
Mount Type Surface mount, primarily wall
Conduit Wiremold knockouts
Included Back box, grille with speaker assembly, 2 crimp connectors, 2 toggle bolts, 2 wood screws, 2 washers, 4 grille screws
