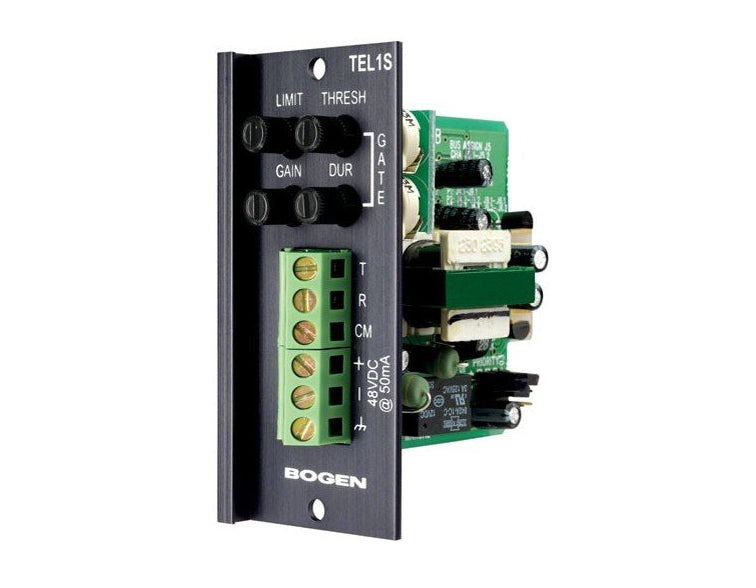

Bogen TEL1S Telephone Input Module, Loop Start, Ground Start and Dry Loop

Part number / SKU
TEL1S

Works with: PRS48 48 VDC power supply (talk battery) Confirmed by the manufacturer


$80.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Bogen TEL1S is a telephone advanced input module with a transformer-isolated, balanced input and configuration jumpers for wet or dry loop telephone systems. In dry loop mode it connects to telephone paging ports with audio-activated paging; in wet mode it interfaces loop start or ground start trunks using an external 48 VDC talk battery supply such as the PRS48.

Gain adjusts from 0 to 30 dB, with a built-in limiter, a noise gate with threshold (3 to 30 mV) and duration (0.5 to 5 s) controls, and mute send and receive. Four priority levels let the module mute lower-priority modules or be muted by higher ones, and the output can be assigned to either or both mixing buses. Wiring lands on a 6-position screw terminal barrier strip.

  • Best for: bringing telephone paging audio into a Bogen modular amplifier or mixer.
  • System fit: Bogen amplifiers and mixers that accept Bogen input modules; telephone paging ports, loop start or ground start trunks.
  • Important to know: loop start and ground start trunk use needs an external 48 VDC supply (PRS48).

Why teams choose it

Built for reliable networks

  • Two telephone modes

    dry loop for paging ports or wet loop for loop and ground start trunks.

  • Audio-activated paging

    VOX gating with adjustable threshold and duration.

  • Paging priority

    four priority levels with muting of lower-priority modules.

  • Clean audio

    20 Hz to 20 kHz response and under 0.1% distortion.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUTEL1S
General
Brand Bogen
Model TEL1S
Device Type Telephone advanced input module
Input Transformer-isolated, balanced
Connector 6-position screw terminal barrier strip
Modes Dry loop (paging ports); wet loop (loop start and ground start trunks)
Priority 4 levels
Bus Assignment Either or both of two mixing buses
Controls Gain, limit threshold, gate threshold, gate duration
Limiter Built-in, with threshold control
Mute Send and receive
Electrical
Talk Battery External 48 VDC supply (PRS48) for loop or ground start
Input Impedance 30 k ohms dry loop; 1 k ohms wet loop
Frequency Response 20 Hz to 20 kHz, +0/-3 dB
Distortion Less than 0.1%, 20 Hz to 20 kHz
Signal to Noise -90 dBV at 30 dB gain
EIN -120 dBV
Gain 0 to 30 dB
Gate Threshold 3 mV to 30 mV
Gate Duration 0.5 s to 5 s
Physical
Dimensions 1-3/8 in W x 3-1/8 in H x 3-1/2 in D
