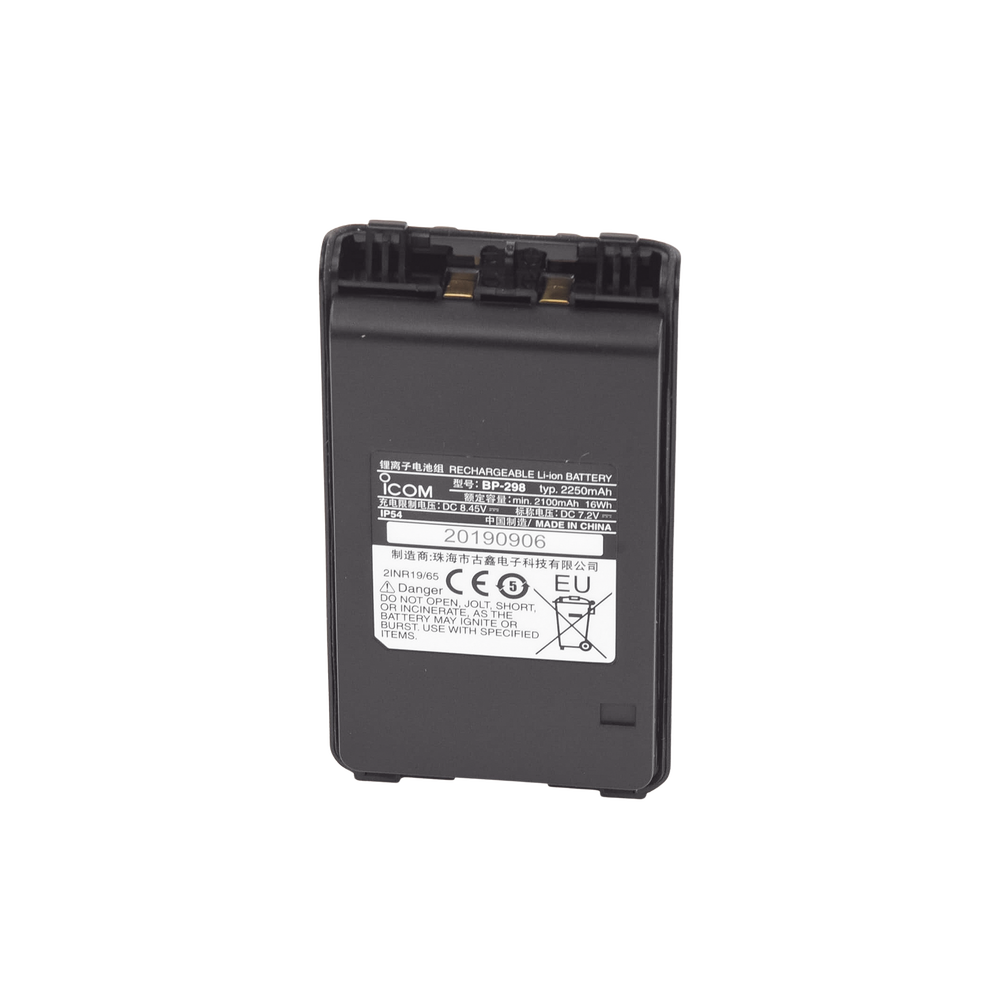

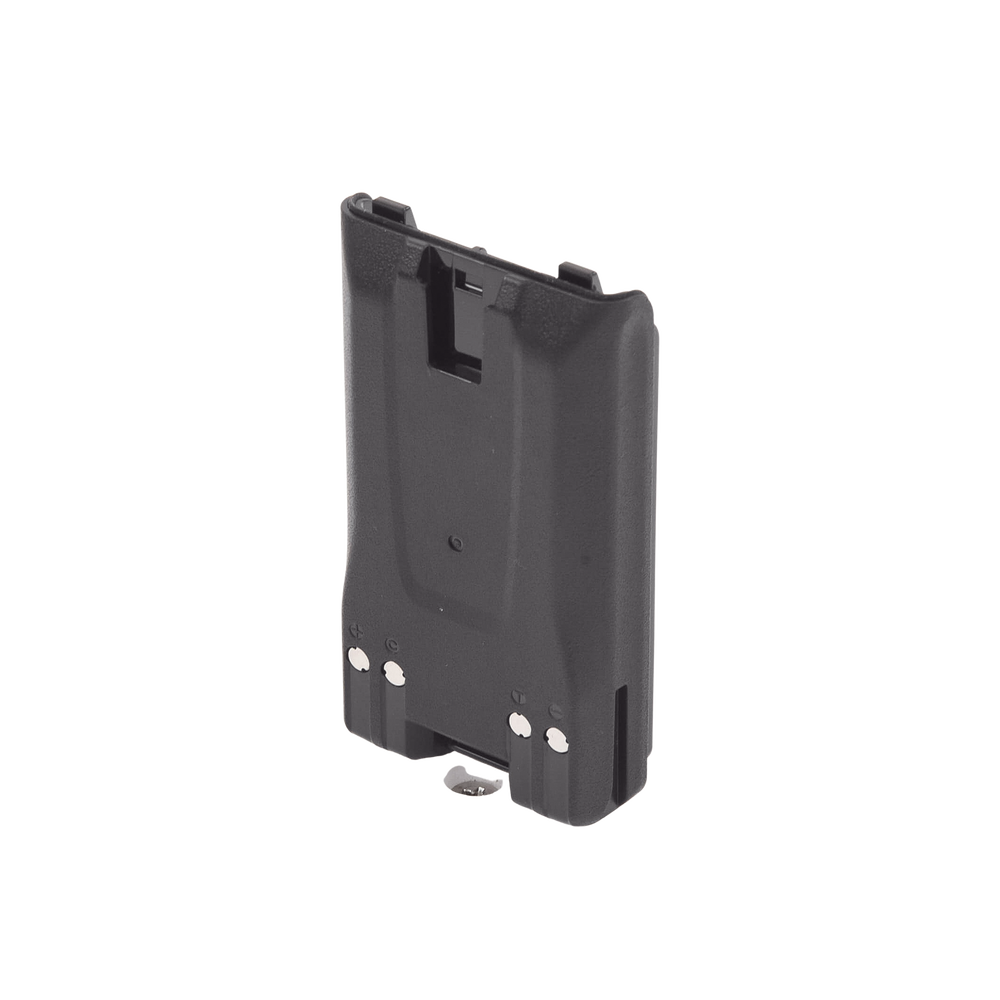

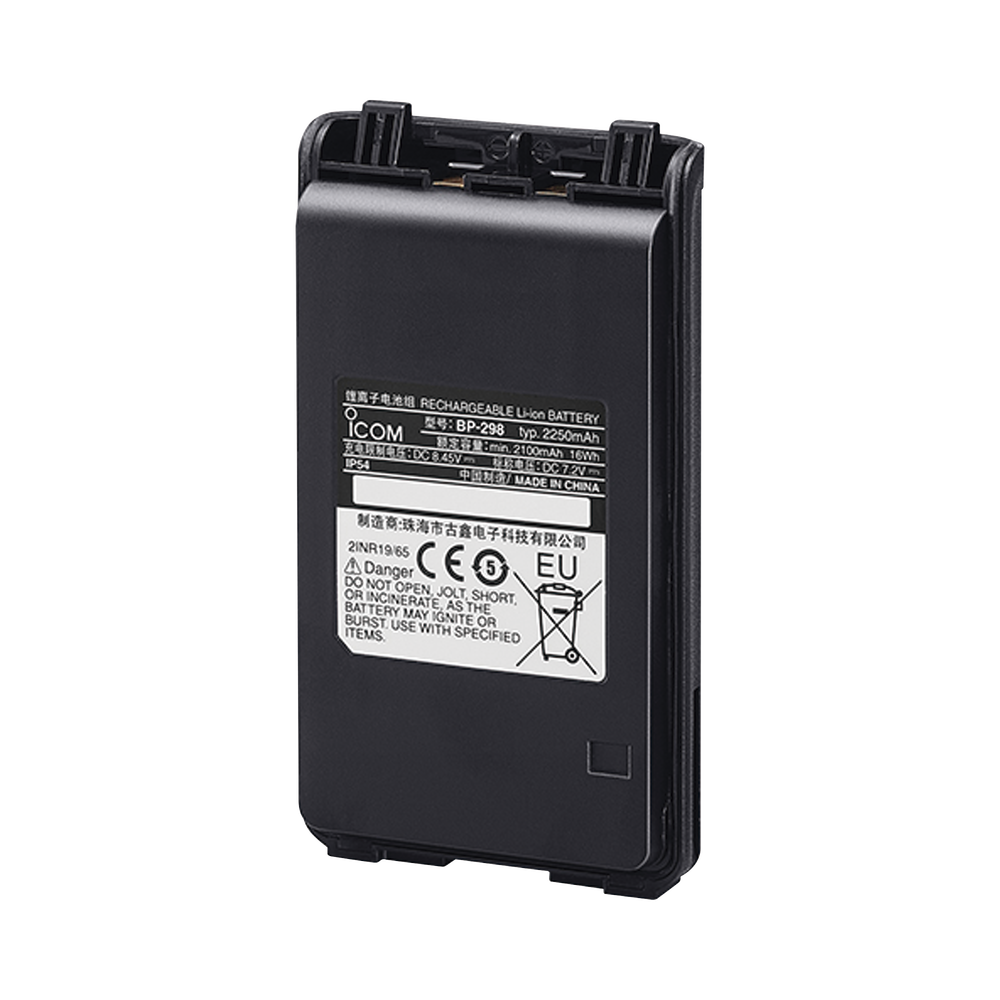

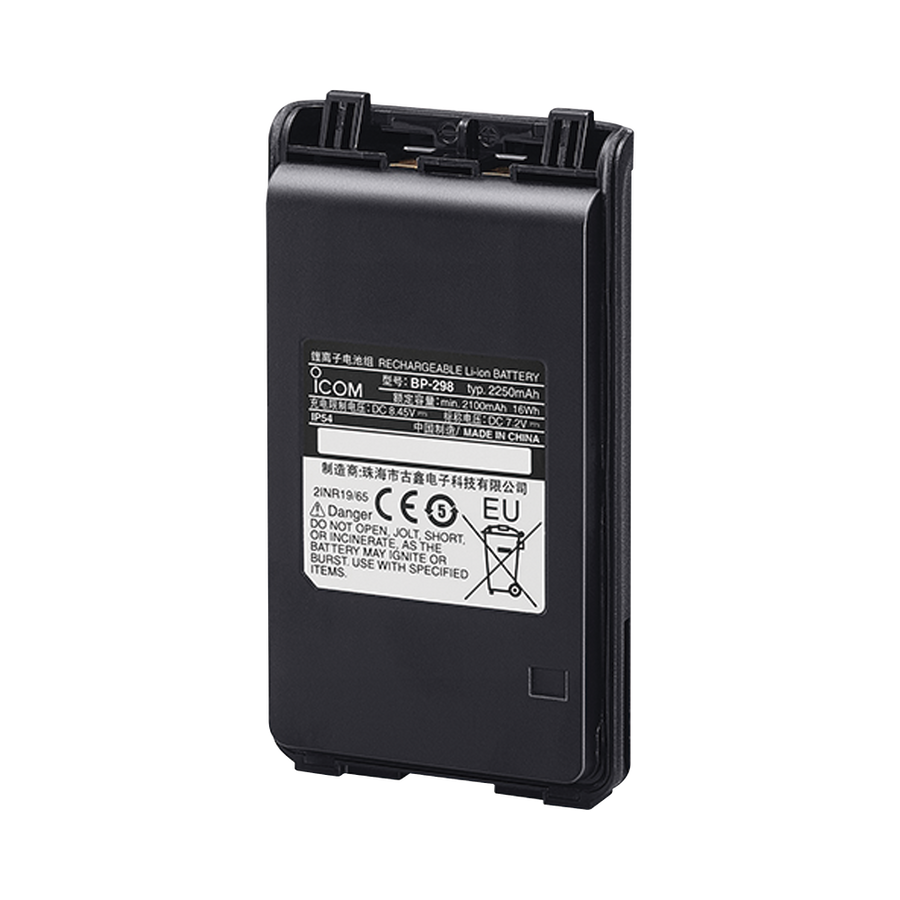

ICOM BP-298 2250mAh Li-ion Battery for ICOM IC-V86

The Icom BP-298 is the factory-designated Li-Ion battery pack for the IC-V86 VHF portable transceiver and the IC-F3003/IC-F4003 commercial radio series. Rated at 7.4 V with a minimum capacity of 2250 mAh and a typical capacity of 2300 mAh, it is the energy source that enables the IC-V86 to operate at its full 7 W EX Hi-power output mode and gives the IC-F3003 series up to 22 hours of operating time under a 5:5:90 transmit/receive/standby duty cycle with power save engaged. Designed as a direct OEM replacement, the BP-298 snaps into the radio chassis without tools, maintaining the host radio's rugged form factor. It is charged exclusively by Li-Ion-compatible chargers, with the BC-240 desktop rapid charger being the primary Icom-recommended solution. For fleet operations, the BC-214N multi-charger also accepts the BP-298 with the appropriate adapter cup, charging up to six packs simultaneously.

Key features & benefits

• High-Capacity Li-Ion Chemistry — Lithium-Ion construction delivers a 7.4 V nominal voltage with 2250 mAh minimum (2300 mAh typical) capacity, providing the sustained current needed for high-power VHF transmission without the memory-effect degradation associated with older NiMH packs.
• Up to 22 Hours of Operating Time — When paired with the IC-F3003 series running a 5:5:90 Tx/Rx/Standby duty cycle with power save active, the BP-298 delivers up to 22 hours of continuous operational use per charge — reducing mid-shift battery swaps for commercial users.
• Enables IC-V86 EX Hi-Power Mode — The BP-298 is the designated battery to unlock the IC-V86's maximum 7 W RF output (EX Hi-power mode), giving field operators the full transmit range the radio is engineered to achieve.
• BC-240 Rapid Charger Compatible — The BP-298 is charged by the Icom BC-240 desktop rapid charger, which includes a charging control function that actively manages charge cycles to prolong battery service life. The BC-242 AC adapter is supplied with the BC-240.
• Multi-Unit Fleet Charging Support — Compatible with the Icom BC-214N multi-charger (with appropriate adapter cups), enabling simultaneous rapid charging of up to six BP-298 packs — ideal for shift-change logistics in dispatch, security, and public-safety environments.
• OEM Icom Fit and Finish — Manufactured to Icom's production standards as a genuine OEM accessory, the BP-298 preserves the structural integrity and environmental sealing of compatible host radios when installed, avoiding the fitment gaps or latch issues common with third-party alternatives.
