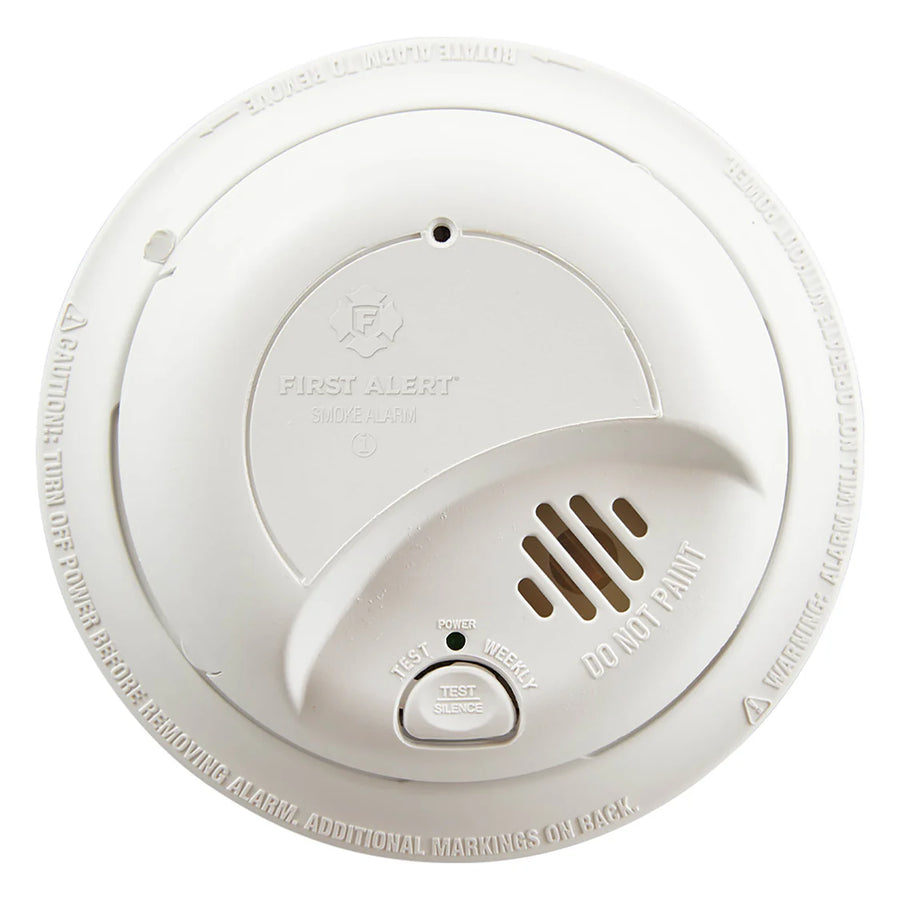

BRK 9120B 120V AC Hardwired Ionization Smoke Alarm with 9V Battery Backup

Part number / SKU
9120B
  • Hardwired smoke alarm
  • Dual ionization sensing chamber
  • Ceiling or wall
  • 120 V AC, 60 Hz, hardwired
  • UL 217

Works with: First Alert and BRK hardwired smoke alarms (interconnect), First Alert and BRK hardwired CO alarms (interconnect), First Alert and BRK hardwired heat alarms (interconnect), SMI100-AC (manufacturer named replacement) Confirmed by the manufacturer


$21.99

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The BRK 9120B is a 120 V AC, 60 Hz hardwired smoke alarm with a monitored 9 V battery backup. It uses a dual ionization sensing chamber, screened against insects, that BRK describes as generally more effective at detecting the small particles produced by flaming fires, and it sounds an 85 dB piezo horn at 10 ft.

The alarm connects to an unswitched 120 V AC circuit through a Quick-Connect wiring harness and interconnects with up to 18 First Alert or BRK units, no more than 12 of them smoke alarms, over the orange interconnect wire. A single test/silence button, a latching alarm indicator that identifies the initiating unit, and a side-loading battery drawer that can be changed with the alarm mounted are built in. It mounts on a ceiling or wall with a rotating bracket and keyhole slots, and BRK rates it for 40 to 100 F.

  • Best for: replacing or adding hardwired, interconnected ionization smoke alarms on 120 V AC branch circuits.
  • System fit: interconnects with First Alert and BRK hardwired smoke, CO and heat alarms, up to 18 units with a maximum of 12 smoke alarms.
  • Important to know: install on an unswitched circuit per NFPA 72, NFPA 70 and local code.

Why teams choose it

Built for fire alarm systems

  • Battery backup

    monitored 9 V battery keeps the alarm working during AC power loss.

  • Whole-home alerting

    interconnect up to 18 compatible BRK and First Alert alarms so all sound together.

  • Finds the source

    latching indicator shows which alarm started the alarm.

  • Fast install

    Quick-Connect harness and keyhole slots that fit over electrical box screws.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU9120B
General
Brand BRK (First Alert)
Model 9120B
Series 9120 Series
Device Type Hardwired smoke alarm
Device Type Detail With battery backup
Detection Type Dual ionization sensing chamber
Detection Type Detail Insect screened
Mount Type Ceiling or wall
Mount Type Detail Rotating mounting bracket, gasketless base
Alarm Output 85 dB at 10 ft, solid-state piezo horn
Interconnect Up to 18 units total, maximum 12 smoke alarms
Interconnect Compatibility First Alert or BRK smoke, CO and heat alarms
Controls Single test/silence button
Latching Alarm Indicator Yes, identifies the initiating unit
Indicators Green LED AC power; red LED DC power and alarm
Tamper Resistance Two locking pins (battery drawer and alarm to bracket)
Included Features Dust cover for construction, Quick-Connect wiring harness
Electrical
Operating Voltage 120 V AC, 60 Hz, hardwired
Battery Backup 9 V, monitored, side-loading drawer
Current 0.04 A standby/alarm
Wiring Black hot, white neutral, orange interconnect, Quick-Connect plug
Interconnect Wire 18 AWG or larger, rated 300 V minimum, under 1,000 ft total
Circuit Unswitched 120 V AC 60 Hz source
Environmental
Operating Temperature 40 to 100 F (4 to 38 C)
Listings and Approvals
Agency Approvals UL 217
Standards Complies with UL 217, CSFM, NFPA 72, HUD and FHA
