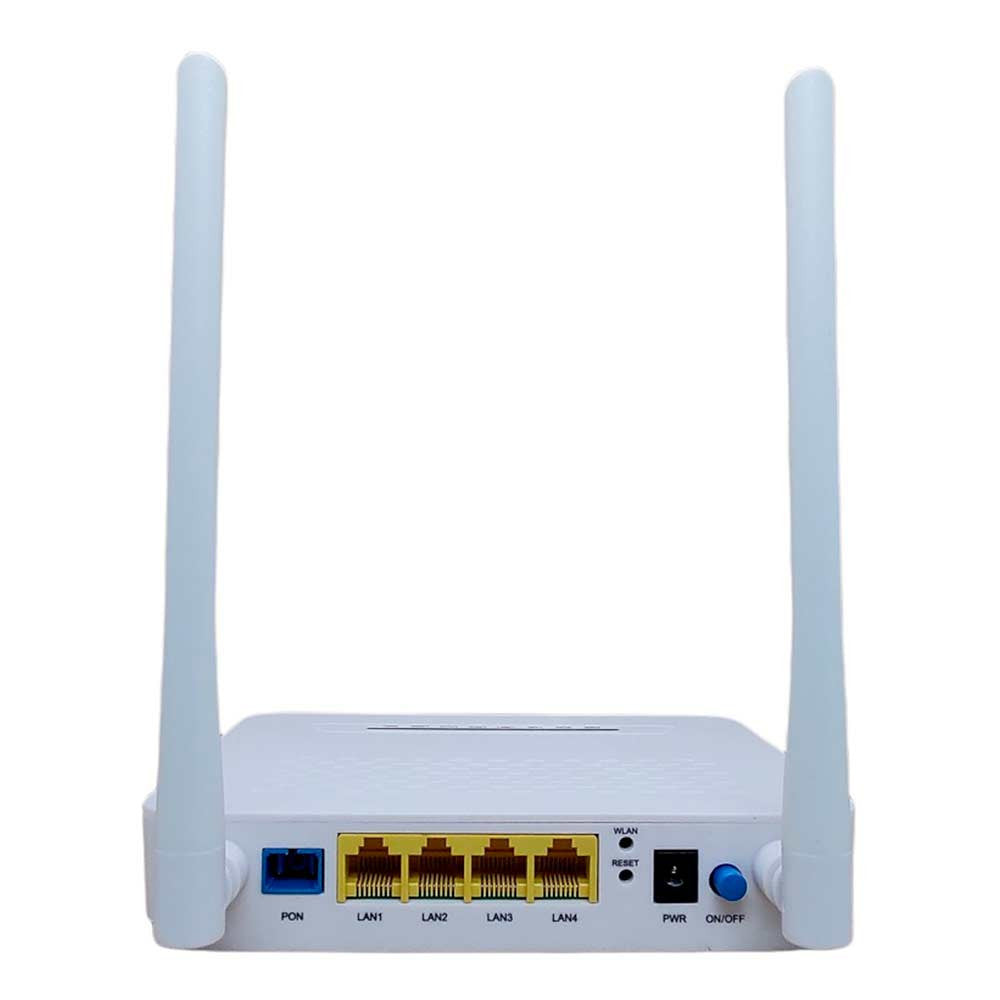

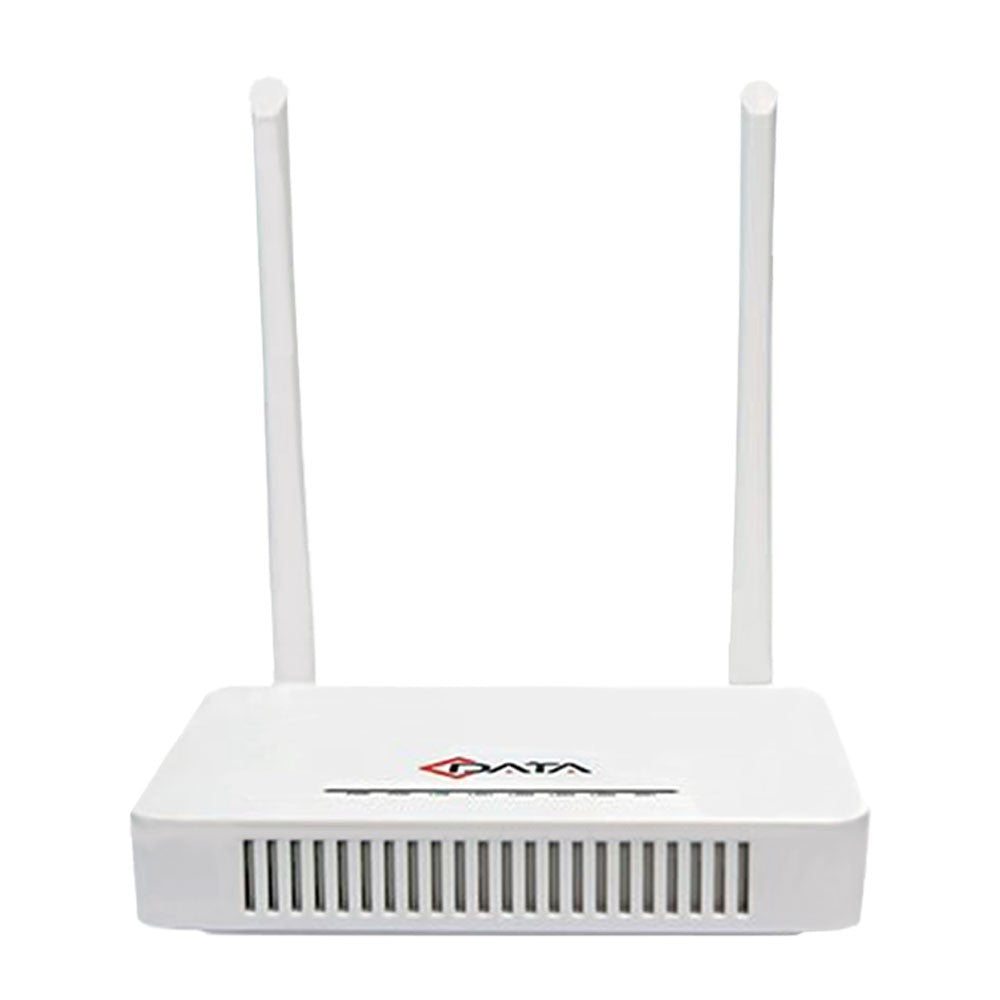

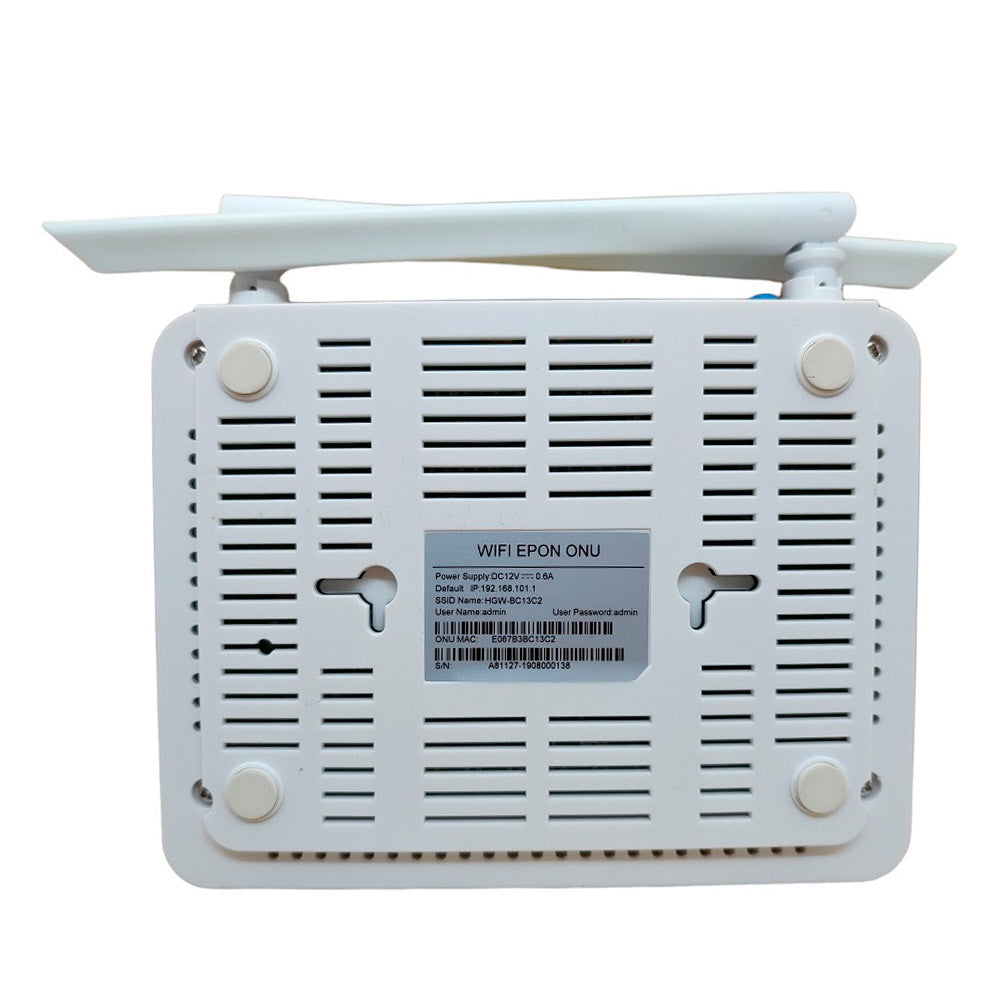

C-Data FD600-104GW EPON ONU 4-Port Gigabit Ethernet SC Connector

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
C-Data FD600-104GW EPON ONU 4-Port Gigabit Ethernet SC Connector

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
C-Data FD600-104GW is a EPON ONU device. The FD600-104GW designed with one EPON port, four standard 10/100/1000 Base-TX Ethernet ports . It is aluminum alloy die casting shaping, and have good heat dissipation . The FD600-104GW ONU Module is small size module that is designed to work in C-DATA outdoor platform . It also can be integrated with the third-party access network products as a functional module to provide the EPON service.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Fiber

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• One EPON port
• Four standard 10/100/1000 Base-TX Ethernet ports
• Aluminum alloy die casting shaping, good heat dissipation
• Support port-based rate limitation and bandwidth control
• Compliant with IEEE802.3ah Standard.
• Up to 20KM transmission Distance
• Support data encryption, group broadcasting, port Vlan separation ,etc
• Dynamic Bandwidth Allocation (DBA)
• ONU auto-discovery/Link detection/remote upgrade of software
• Port mode of VLAN configuration
• Power-off alarm function ,easy for link problem detection
• Broadcasting storm resistance function
• Port isolation between different ports
• Support port flow control
• Support ACL and SNMP to configure data packet filter flexibly
• Specialized design for system breakdown prevention to maintain stable system
• Support software online upgrading
• EMS network management based on SNMP, convenient for maintenance

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: C-Data
• Model: FD600-104GW
• Product Type: Fiber
• One EPON port
• Four standard 10/100/1000 Base-TX Ethernet ports
• Aluminum alloy die casting shaping, good heat dissipation
• Support port-based rate limitation and bandwidth control
• Compliant with IEEE802.3ah Standard.
• Up to 20KM transmission Distance
• Support data encryption, group broadcasting, port Vlan separation ,etc
• Dynamic Bandwidth Allocation (DBA)
• ONU auto-discovery/Link detection/remote upgrade of software
• Port mode of VLAN configuration
• Power-off alarm function ,easy for link problem detection
• Broadcasting storm resistance function
• Port isolation between different ports
• Support port flow control
• Support ACL and SNMP to configure data packet filter flexibly
• Specialized design for system breakdown prevention to maintain stable system
• Support software online upgrading
• EMS network management based on SNMP, convenient for maintenance
• 130mm x 110mm x 24mm
• 0.18kg
• Interface PON Interface 1x EPON port
• Data Rate: 1.25 Symmetrical
• 20KM distance
• Split Ration 1:64
• User Ethernet Interface 4x 10/100M
• 4x 10/100/1000M Auto-Negotiation
• Full/Half Duplex Mode
• RJ45 Connector
• Auto MDI/MDI-X

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
