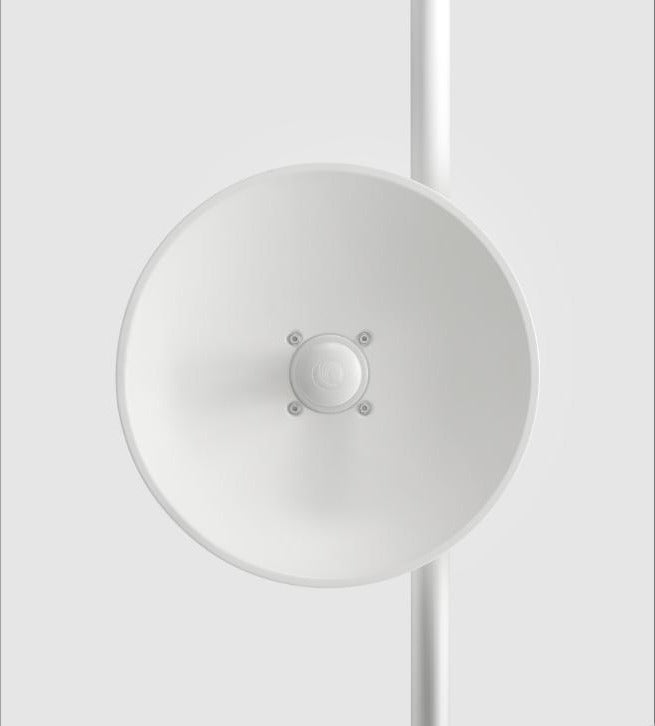

Cambium Networks C050045B021B 450b 5GHz Point-to-Multipoint Radio High-Gain

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Cambium Networks C050045B021B 450b 5GHz 24dBi High-Gain Subscriber Backhaul Radio

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Cambium Networks 450b 5GHz high-gain outdoor radio with integrated 24dBi antenna, 2x2 MIMO OFDM, Gigabit Ethernet, GPS synchronization, and support for Subscriber Module and PTP backhaul operation.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Parent Category: Networking
Subcategory: Point-to-Multipoint Systems

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Cambium Networks 450b Subscriber and Backhaul platform
• High-Gain configuration with integrated 24dBi antenna
• 4.9GHz to 5.9GHz ultra-wideband radio platform
• Capable of up to 300Mbps aggregate throughput in a 40MHz channel
• Supports Subscriber Module operation for point-to-multipoint networks
• Supports Point-to-Point backhaul operation
• 2x2 MIMO OFDM physical layer
• Gigabit 100/1000 Base-T Ethernet interface
• Configurable 5, 10, 15, 20, 30, and 40MHz channel widths
• Adaptive modulation through 256QAM
• GPS synchronization through the Access Point or via cnPulse through the 3.5mm port in PTP mode
• 3.5mm audio jack supports direct headphone connection for alignment
• Diffserve QoS
• IPv4 and IPv6 dual-stack network management
• Supports HTTP, HTTPS, Telnet, FTP, SNMPv2c, SNMPv3, and cnMaestro management
• 802.1Q and 802.1ad VLAN support
• FIPS-197 128-bit AES encryption
• 256-bit AES is available with the appropriate optional license for the attached Access Point
• Integrated surge suppression
• IP55 environmental rating
• Optional cable glands support enhancement to IP67
• Included mounting system provides ±20° mechanical tilt
• Optional radome supported under manufacturer part number N000900L021A

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: Cambium Networks
• Product Family: 450
• Model: 450b High-Gain
• Manufacturer Part Number: C050045B021B
• Frequency Range: 4900-5925MHz
• Channel Spacing: Configurable in 2.5MHz increments
• Channel Width: 5 / 10 / 15 / 20 / 30 / 40MHz
• Physical Layer: 2x2 MIMO OFDM
• Ethernet Interface: 100/1000 Base-T, full duplex, auto-negotiated, 802.3 compliant
• Protocols: IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP
• Network Management: IPv4/IPv6 dual stack, HTTP, HTTPS, Telnet, FTP, SNMPv2c/v3, cnMaestro
• MTU: 1700 bytes
• VLAN: 802.1ad DVLAN Q-in-Q, 802.1Q with 802.1p priority, dynamic port VID
• Encryption: FIPS-197 128-bit AES
• Optional Encryption Capability: 256-bit AES requires appropriate optional licensing for attached Access Point
• Packet Processing: 50,000 PPS
• ARQ: Supported
• Adaptive Modulation: QPSK, 16QAM, 64QAM, 256QAM
• Ultimate Sensitivity: -94dBm
• Maximum Deployment Range: Up to 64km (40 miles) in PMP mode; up to 200km (124 miles) in PTP mode
• Typical Latency: 3-5ms
• GPS Synchronization: Supported
• Quality of Service: Diffserve QoS
• Integrated Antenna Peak Gain: 24dBi
• 3dB Azimuth Beamwidth: 7°
• 3dB Elevation Beamwidth: 7°
• Polarization: Dual linear, H + V
• Front-to-Back Isolation: Greater than 25dB
• Cross Polarization: 15dB
• Maximum Transmit Power: +27dBm combined MIMO V+H
• Power Control: ATPC
• Surge Suppression: EN 61000-4-5, 10x700µs, 4kV; EN 61000-4-2, ESD 30kV contact / 30kV air
• Environmental Rating: IP55
• Optional Environmental Enhancement: IP67 with optional N000000L135A glands
• Wind Survival: 200kph (124mph)
• Operating Temperature: -40°C to +60°C (-40°F to +140°F)
• Humidity: 0-100%, non-condensing
• Power Consumption: 9W typical, 12W peak
• Input Voltage: 20-32VDC
• Dimensions: 45cm diameter × 28cm depth (17.8 × 11.2in)
• Weight: 3.1kg (7lb), including mounting bracket
• Supported Pole Diameter: 2.5-7.6cm (1-3in)
• Mechanical Tilt: ±20°
• MTBF: Greater than 40 years
• FCC ID: Z8H89FT0042
• ISED Canada Certification: 109W-0042
• ETSI: EN 301 893 v2.1.1; EN 302 502 v2.1.1

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Point-to-multipoint Subscriber Module deployments
• Point-to-point wireless backhaul links
• Fixed wireless broadband networks
• Long-range outdoor wireless connectivity
• GPS-synchronized Cambium 450 network deployments

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
