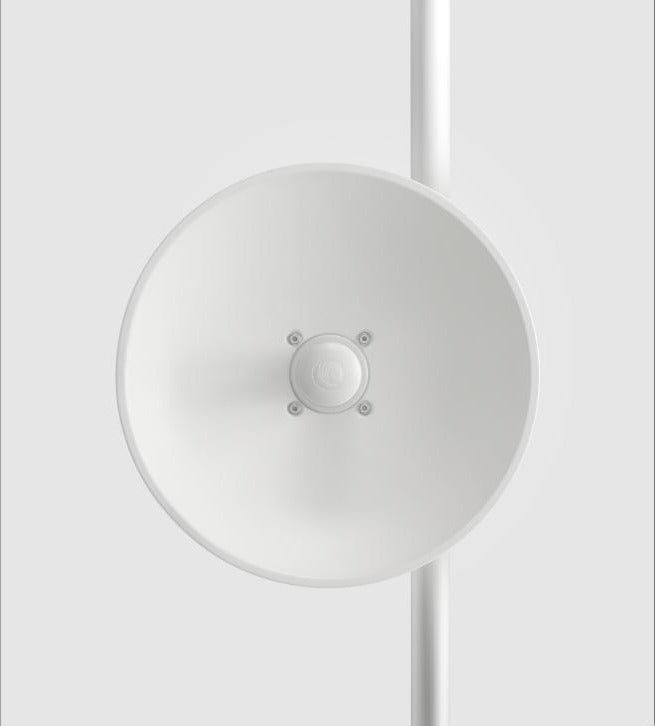

Cambium Networks C050045B031B 450b 5GHz Point-to-Multipoint Radio 17dBi ODU

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Cambium Networks C050045B031B 450b 5GHz 17dBi Subscriber Backhaul Radio

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Cambium Networks 5GHz 450b mid-gain outdoor radio with integrated 17dBi antenna, 2x2 MIMO OFDM, Gigabit Ethernet, GPS synchronization, and support for Subscriber Module and PTP backhaul operation.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Parent Category: Networking
Subcategory: Point-to-Multipoint Systems

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Cambium Networks 450b Subscriber and Backhaul platform
• Mid-gain configuration with integrated 17dBi antenna
• 4.9GHz to 5.9GHz ultra-wideband radio platform
• Capable of up to 300Mbps aggregate throughput in a 40MHz channel
• Supports Subscriber Module operation for point-to-multipoint networks
• Supports Point-to-Point backhaul operation on applicable regional models
• 2x2 MIMO OFDM physical layer
• Gigabit Ethernet interface
• Configurable 5, 10, 15, 20, 30, and 40MHz channel widths
• Adaptive modulation through 256QAM
• GPS synchronization through the Access Point or cnPulse via the 3.5mm port for PTP operation
• 3.5mm audio jack supports direct headphone connection for alignment
• Diffserve QoS
• IPv4 and IPv6 dual-stack network management
• Supports HTTP, HTTPS, Telnet, FTP, SNMPv2c, SNMPv3, and cnMaestro management
• 802.1Q and 802.1ad VLAN support
• FIPS-197 128-bit AES encryption
• 256-bit AES capability requires an optional license for the attached Access Point
• Integrated surge suppression
• IP55 environmental rating for the mid-gain configuration
• Included mounting system supports ±20° mechanical tilt

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: Cambium Networks
• Product Family: 450
• Model: 450b Mid-Gain
• Manufacturer Part Number: C050045B031B
• Frequency Range: 4900-5925MHz
• Channel Spacing: Configurable in 2.5MHz increments
• Channel Width: 5 / 10 / 15 / 20 / 30 / 40MHz
• Physical Layer: 2x2 MIMO OFDM
• Ethernet Interface: 100/1000 Base-T, full duplex, auto-negotiated, 802.3 compliant
• Protocols: IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP
• Network Management: IPv4/IPv6, HTTP, HTTPS, Telnet, FTP, SNMPv2c/v3, cnMaestro
• MTU: 1700 bytes
• VLAN: 802.1ad DVLAN Q-in-Q, 802.1Q with 802.1p priority, dynamic port VID
• Encryption: FIPS-197 128-bit AES
• Optional Encryption Capability: 256-bit AES requires appropriate license for attached Access Point
• Packet Processing: 50,000 PPS
• ARQ: Supported
• Adaptive Modulation: QPSK, 16QAM, 64QAM, 256QAM
• Ultimate Sensitivity: -94dBm
• Maximum Deployment Range: Up to 64km (40 miles) in PMP mode; up to 200km (124 miles) in PTP mode
• Typical Latency: 3-5ms
• GPS Synchronization: Supported
• Quality of Service: Diffserve QoS
• Integrated Antenna Gain: 17dBi
• 3dB Azimuth Beamwidth: 15°
• 3dB Elevation Beamwidth: 30°
• Polarization: Dual linear, H + V
• Front-to-Back Isolation: Greater than 20dB
• Cross Polarization: 15dB
• Maximum Transmit Power: +27dBm combined MIMO V+H
• Power Control: ATPC
• Surge Suppression: EN 61000-4-5, 10x700µs, 4kV; EN 61000-4-2, ESD 30kV contact / 30kV air
• Environmental Rating: IP55
• Wind Survival: 200kph (124mph)
• Operating Temperature: -40°C to +60°C (-40°F to +140°F)
• Humidity: 0-100%, non-condensing
• Power Consumption: 9W typical, 12W peak
• Input Voltage: 20-32VDC
• Dimensions: 12.5 × 24.8 × 12cm (4.9 × 9.8 × 4.7in)
• Weight: 0.6kg (1.4lb), including mounting bracket
• Supported Pole Diameter: 2.5-7.6cm (1-3in)
• Mechanical Tilt: ±20°
• MTBF: Greater than 40 years
• FCC ID for Mid-Gain Platform: Z8H89FT0032
• ISED Canada Certification: 109W-0032
• ETSI: EN 301 893 v2.1.1; EN 302 502 v2.1.1

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Point-to-multipoint Subscriber Module deployments
• Point-to-point wireless backhaul links on applicable regional models
• Fixed wireless broadband networks
• Long-range outdoor wireless connectivity
• GPS-synchronized Cambium 450 network deployments

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
