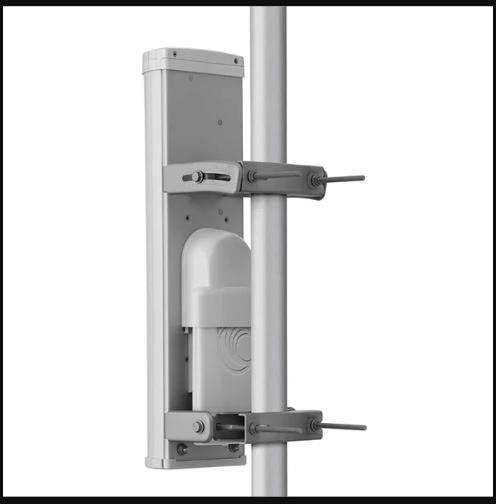

Cambium Networks C050900D021B ePMP 5GHz 90/120° Sector Antenna

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Cambium Networks C050900D021B ePMP 5GHz 18dBi 90/120° Sector Antenna

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Cambium Networks ePMP 5GHz sector antenna with 18dBi gain, 90° 3dB / 120° 6dB azimuth beamwidth, dual polarization, 35dB front-to-back ratio, integrated ePMP radio mounting, and IP65 construction.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Parent Category: Networking
Subcategory: Antennas (Networking)

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Designed for Cambium Networks ePMP point-to-multipoint deployments
• 18dBi antenna gain
• Wide 4.9GHz to 5.97GHz operating frequency range
• 90° 3dB azimuth beamwidth
• 120° 6dB azimuth beamwidth
• 6° 3dB elevation beamwidth
• Horizontal and vertical polarization
• 35dB front-to-back ratio
• Greater than 30dB port-to-port isolation
• Designed for ABAB channel reuse with two channels covering four sectors
• Consistent gain across the supported frequency range
• Null-fill characteristics designed to provide coverage near the tower base and sector edges
• Integrated mounting provision for compatible ePMP access point hardware
• GPS antenna integration
• IP65 environmental rating
• UV-protected ABS radome
• Mounting hardware supports 2" to 4" mast diameters
• Mount provides -10° to +5° tilt adjustment

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: Cambium Networks
• Manufacturer Part Number: C050900D021B
• Product Type: ePMP Sector Antenna
• Frequency Range: 4.9GHz to 5.97GHz
• Gain: 18dBi
• 3dB Beamwidth – Azimuth: 90°
• 6dB Beamwidth – Azimuth: 120°
• 3dB Beamwidth – Elevation: 6°
• Electrical Downtilt: -2°
• Polarization: Horizontal and Vertical
• Port-to-Port Isolation: Greater than 30dB
• Front-to-Back Ratio: 35dB
• Maximum Input Power: 5W
• Input Impedance: 50 Ohms
• Connectors: 2 × RP-SMA
• Mast Diameter Compatibility: 2" to 4" (5cm to 10cm)
• Mechanical Tilt Adjustment: -10° to +5°
• Antenna Dimensions: 23.4" H × 6.2" W × 4.3" D (594 × 157 × 110mm)
• Dimensions with ePMP 1000 Access Point: 23.4" H × 6.2" W × 5.9" D (594 × 157 × 150mm)
• Antenna Weight: 8.8lb (4.0kg)
• Weight with ePMP 1000 Access Point and Mounting Brackets: 14.6lb (6.6kg)
• Environmental Rating: IP65
• Radome Material: UV-Protected ABS
• Operating Temperature: -40°C to +60°C (-40°F to +140°F)

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• ePMP point-to-multipoint distribution access networks
• Wireless service provider 5GHz deployments
• High-density networks requiring frequency reuse
• Wide-band sector coverage
• 90° sector applications
• 120° sector applications

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
