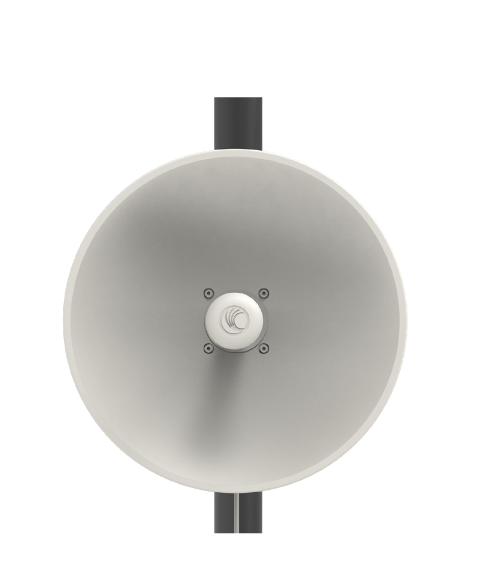

Cambium Networks C050910M171C ePMP Force 300-25L 5GHz 25dBi Point-to-Multipoint

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Cambium Networks C050910M171C ePMP Force 300-25L 5 GHz 25 dBi Subscriber Module

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Cambium Networks ePMP Force 300-25L 5 GHz subscriber module with 802.11ac Wave 2 technology, 2x2 MIMO/OFDM, integrated 25 dBi dish antenna, Gigabit Ethernet, and up to 400 Mbps capacity.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Point-to-Multipoint Systems

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• High-performance subscriber module for point-to-point and point-to-multipoint fixed wireless broadband applications
• Up to 400 Mbps capacity
• 802.11ac Wave 2 technology
• 2x2 MIMO/OFDM proprietary physical layer
• Integrated high-gain 25 dBi dish antenna
• Wide-band operation from 4910 to 6200 MHz, subject to country regulations
• Supports 20, 40, and 80 MHz channel widths
• 10/100/1000 BaseT Ethernet interface
• Compatible with Cambium PoE and standard PoE pinouts
• Interoperable with ePMP 3000, 3000L, MicroPOP, 2000, and 1000 Access Points
• Proven ePMP air interface with optimized ePTP interface for low-latency point-to-point applications
• Three-level QoS priority for voice, high, and low traffic
• Supports cnMaestro network management
• Supports LINKPlanner and cnHeat network planning
• 128-bit AES encryption in CCMP mode
• IP55 environmental rating
• Integrated 1 Joule surge suppression
• 3-year hardware warranty and support from Cambium Networks

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Manufacturer: Cambium Networks
• Part Number: C050910M171C
• Product Family: ePMP Force L Series
• Model: Force 300-25L
• Device Type: Subscriber Module
• Wireless Technology: 802.11ac Wave 2
• Frequency Range: 4910–6200 MHz
• Antenna Frequency Range: 4920–6400 MHz
• Channel Widths: 20 / 40 / 80 MHz
• Channel Spacing: Configurable in 5 MHz increments
• Physical Layer: 2x2 MIMO/OFDM
• MAC Layer: Cambium proprietary
• Ethernet Interface: 10/100/1000 BaseT
• Antenna Type: Integrated dish
• Peak Antenna Gain: 25 dBi
• 3 dB Beamwidth, Azimuth: 6° to 10°
• 3 dB Beamwidth, Elevation: 6° to 10°
• Front-to-Back Isolation: 25 dB
• Cross Polarization: 20 dB
• Modulation: MCS0 BPSK through MCS9 256-QAM 5/6
• Transmit Power Range: +3 to +24 dBm combined, subject to regional EIRP limits
• Nominal Receive Sensitivity at 20 MHz: MCS0 -89 dBm; MCS9 -62 dBm
• Nominal Receive Sensitivity at 40 MHz: MCS0 -86 dBm; MCS9 -60 dBm
• Nominal Receive Sensitivity at 80 MHz: MCS0 -84 dBm to MCS9 -57 dBm
• Protocols: IPv4, IPv6, UDP, TCP, IP, ICMP, SNMPv2c, HTTPS, STP, SSH
• VLAN: 802.1Q with 802.1p priority
• Encryption: 128-bit AES, CCMP mode
• Environmental Rating: IP55
• Integrated Surge Suppression: 1 Joule
• Operating Temperature: -30°C to 60°C / -22°F to 140°F
• Weight: 1.6 kg / 3.5 lb
• Dimensions: 280 x 470 x 470 mm / 11.0 x 18.5 x 18.5 in
• Wind Survival: 200 km/h / 124 mph
• Pole Diameter Range: 2.5–7.5 cm / 1.0–3.0 in
• Power Consumption: 9 W typical, 12 W maximum
• Input Voltage: 30 V passive PoE, 14–30 V DC input
• Network Management: IPv4/IPv6, HTTPS, SNMPv2c, SSH, cnMaestro

𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
Designed for point-to-point and point-to-multipoint fixed wireless broadband applications. The Force 300-25L is intended for service-provider deployments requiring high performance, scalability, and low latency.
