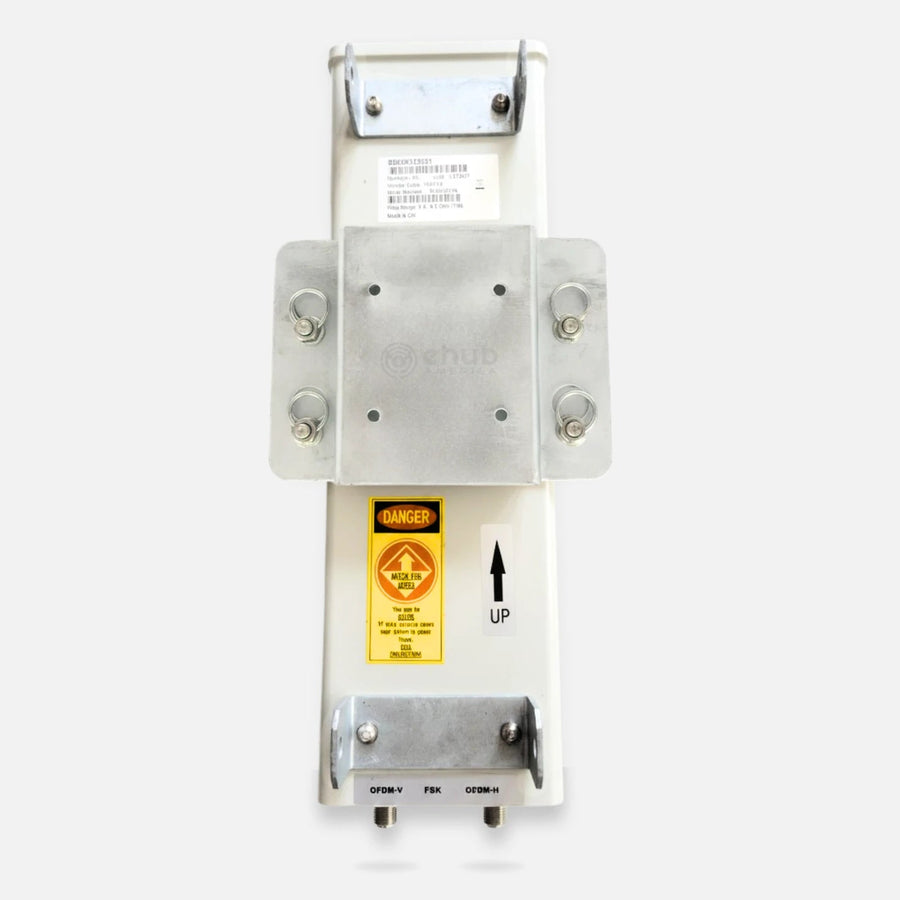

Cambium Networks 85009325001 PMP 450 17dBi 5GHz 60° Sector Antenna

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Cambium Networks 85009325001 is a 5.4–6.0 GHz access point sector antenna designed for the PMP 450 platform, with 60° FSK or 45° OFDM azimuth beamwidth and support for dual-linear OFDM operation.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄
Antennas (Networking)

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Designed specifically for the PMP 450 platform
• 5.4–6.0 GHz frequency range
• Access point sector antenna
• OFDM: 17 dBi ±1 dBi gain
• FSK: 10 dBi ±1 dBi gain
• OFDM 3 dB azimuth beamwidth: 45°
• FSK 3 dB azimuth beamwidth: 60°
• OFDM dual-linear horizontal/vertical polarization
• Quick-release pole mounting hardware
• Mechanical downtilt from 0° to 11°
• Wind survival rating of 216 km/h

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: Cambium Networks
• Part Number: 85009325001
• Antenna Type: Access Point Sector
• Frequency Range: 5.4–6.0 GHz
• OFDM Gain: 17 dBi ±1 dBi
• FSK Gain: 10 dBi ±1 dBi
• VSWR: 1.5:1 maximum
• Port-to-Port Isolation: >30 dB to all ports
• OFDM 3 dB Beamwidth, Azimuth: 45°
• FSK 3 dB Beamwidth, Azimuth: 60°
• OFDM 3 dB Beamwidth, Elevation: 8°
• FSK 3 dB Beamwidth, Elevation: 50°
• OFDM Elevation Null Fill: Down to -25°
• OFDM 1st Null: -18 dB minimum
• OFDM 2nd Null: -33 dB minimum
• OFDM 3rd Null: -36 dB minimum
• OFDM Azimuth Sidelobes: ETSI EN 302.326-3 SS2
• FSK Azimuth Sidelobes: ETSI EN 302.326-3 SS1
• OFDM Polarization: Dual Linear, Horizontal / Vertical
• FSK Polarization: Linear, Vertical
• OFDM Maximum Input Power: 30 W
• FSK Maximum Input Power: 10 W
• Input Impedance: 50 Ohms
• Front-to-Back Ratio: >35 dB
• OFDM Cross Polarization: >25 dB
• FSK Cross Polarization: >20 dB
• Dimensions: 468 × 146 × 64 mm
• Antenna Weight: 2.8 kg without bracket kit
• Antenna Connectors: 3 × Type N Female, Straight
• Wind Survival: 216 km/h
• Pole Mounting Hardware: Quick Release, 1.5" to 4.5" diameter pole
• Mechanical Downtilt: 0° to 11°

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
Designed for use with the Cambium Networks PMP 450 platform. The manufacturer documentation identifies this antenna as an access point sector antenna and states that the antenna family is designed to provide optimized PMP 450 performance, including spectral efficiency, null fill, and installation characteristics.
