CHAROFIL

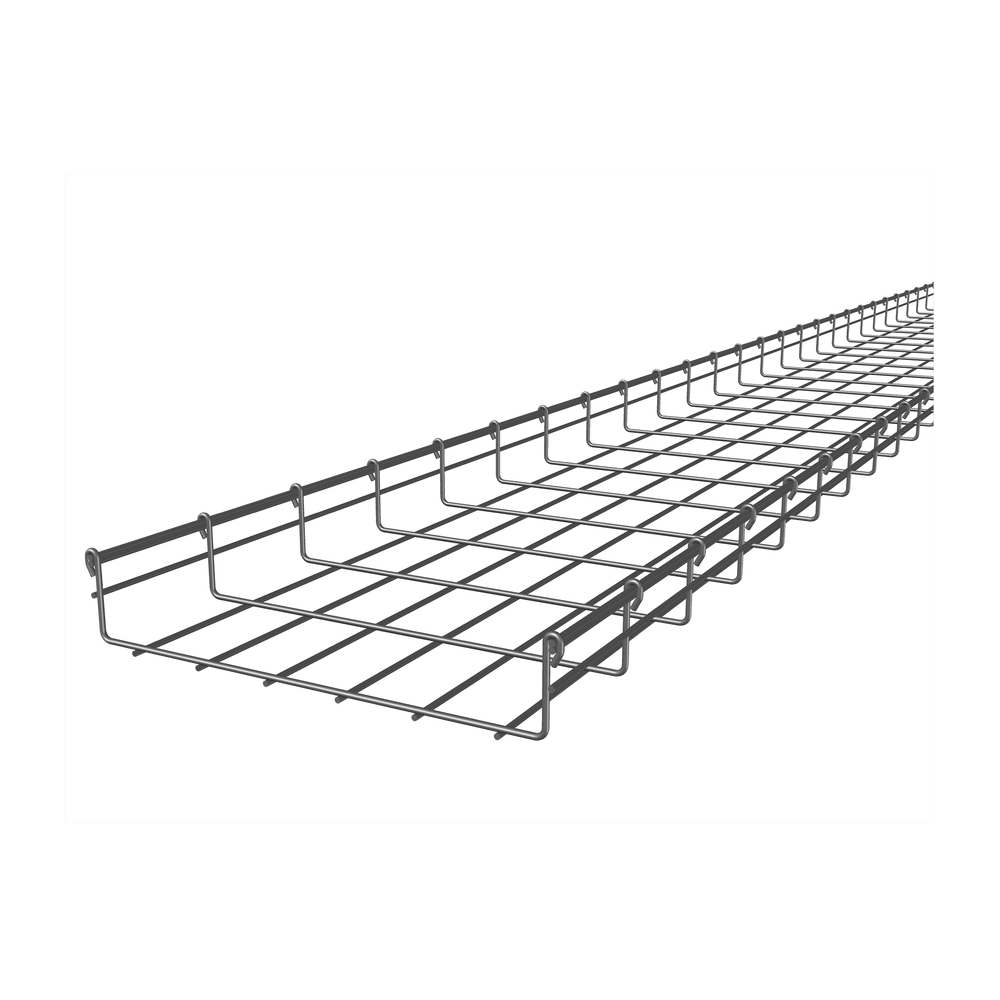

Charofil CH-54-300EZ 300mm Wire Mesh Cable Tray Electro Zinc 258 Cat6
Product identifier
SKU
CH-54-300EZ
$73.73
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
General Characteristics:
- Width: 11.81 in (300 mm).
- Camber: 2.13 in (54 mm).
- Length: 9.84 ft (3 m).
Electro Zinc (EZ) finish of 15 to 20 microns.
Electro Zinc is a process by which a layer of zinc is deposited on metal parts through continuous electric current. Recommended for indoor use.
Coating: "EZ" Galvanized Electro-Zinc.
*Recommended for indoors.
For the space between crossbars, it is recommended to use MG51118EZ to connect sections with a depth of 54.
Number of cable loads, with camber 54 mm.
Key Features
- 300 mm Width Provides Maximum Cable Capacity
- 54 mm Depth Ensures Structural Stability and Strength
- 10 ft Length Sections Optimize Long-Run Installations
- Electro Zinc Finish With 15-20 Micron Protection Layer
- Supports up to 258 Cat6 Cables per Single Section
- Modular Design for Easy Access and Maintenance
