PANDUIT

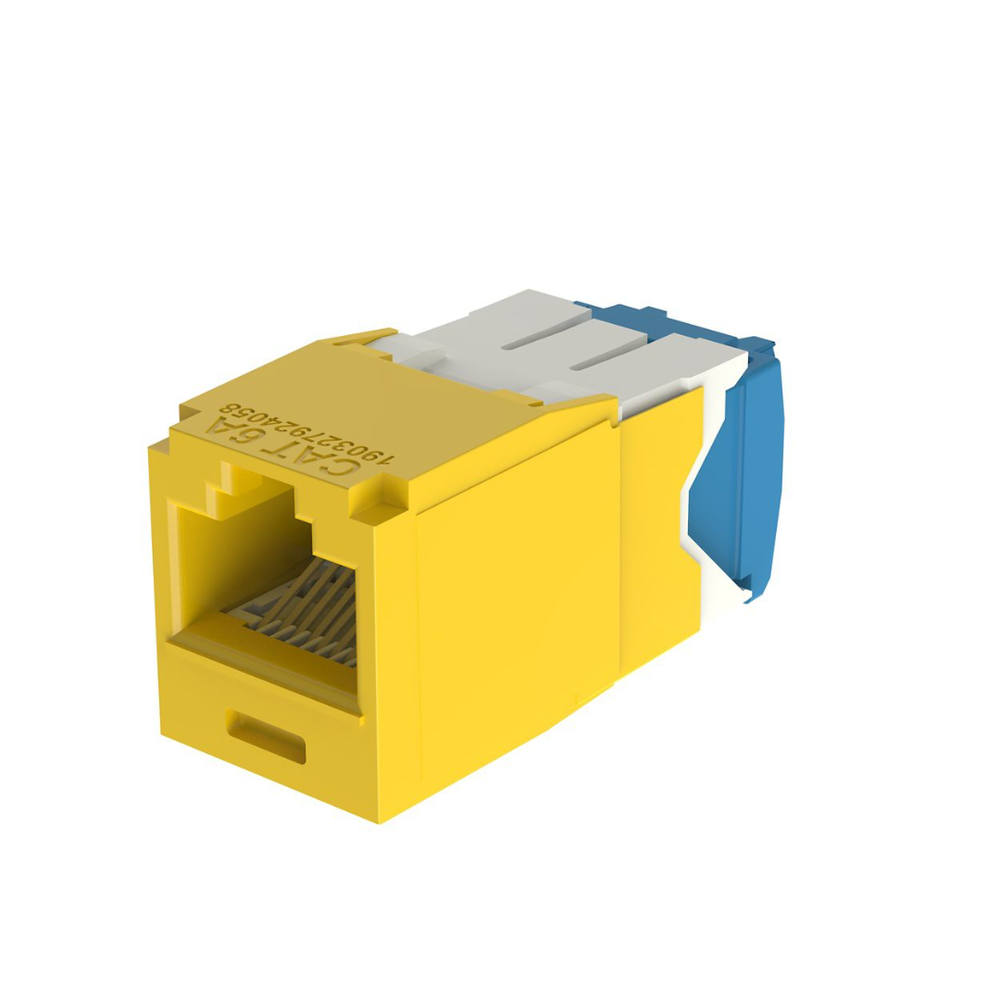

Panduit CJ6X88TGYL Category 6A RJ45 Jack Module 10Gig UTP Tool-Less
Product identifier
SKU
CJ6X88TGYL
$29.36
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Category 6A/Class EA, 8-position, UTP jack module shall terminate 4-pair, 22 – 26 AWG, 100 ohm unshielded twisted pair cable and shall not require use of a punchdown tool. The termination cap shall be color-coded blue to designate Category 6A performance and shall include a universal label coded for T568A and T568B wiring schemes. The Mini-Com® TX6A™ 10Gig UTP Jack Module must be installed as part of the TX6A™ 10Gig UTP Copper Cabling System to achieve IEEE 10GBASE-T certified performance.
Key Features
- Tool-Less Termination Without Impact Tool Required
- Compliant With ANSI/TIA-1096-A and IEEE 10GBASE-T Standards
- 50 Micro-Inch Gold Plated Contacts for Superior Performance
- Works With Both T568A and T568B Wiring Schemes
- Rated for 2500 Mating Cycles for Long-Term Reliability
- Supports HDBaseT Power Delivery up to 100 Watts
