𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄

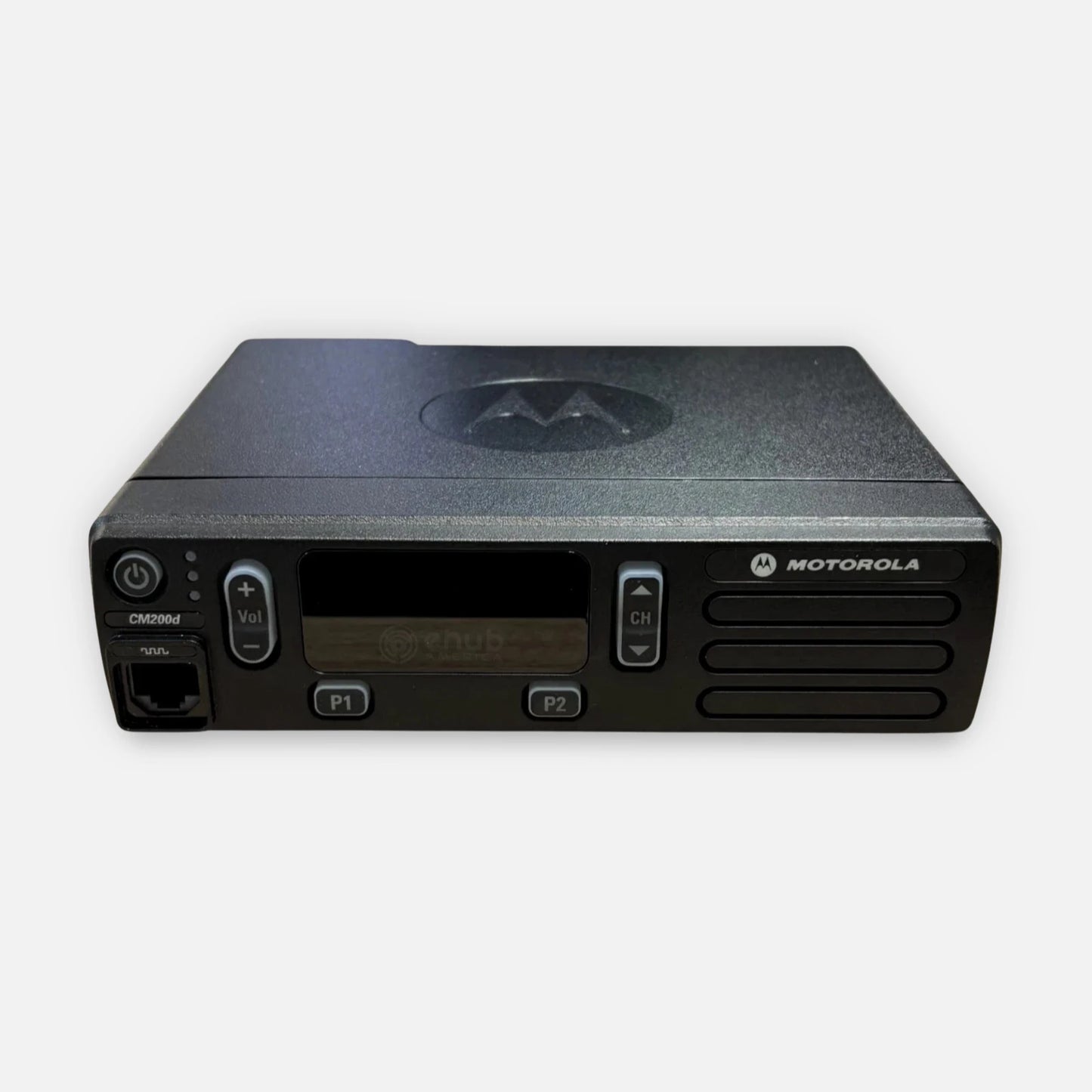

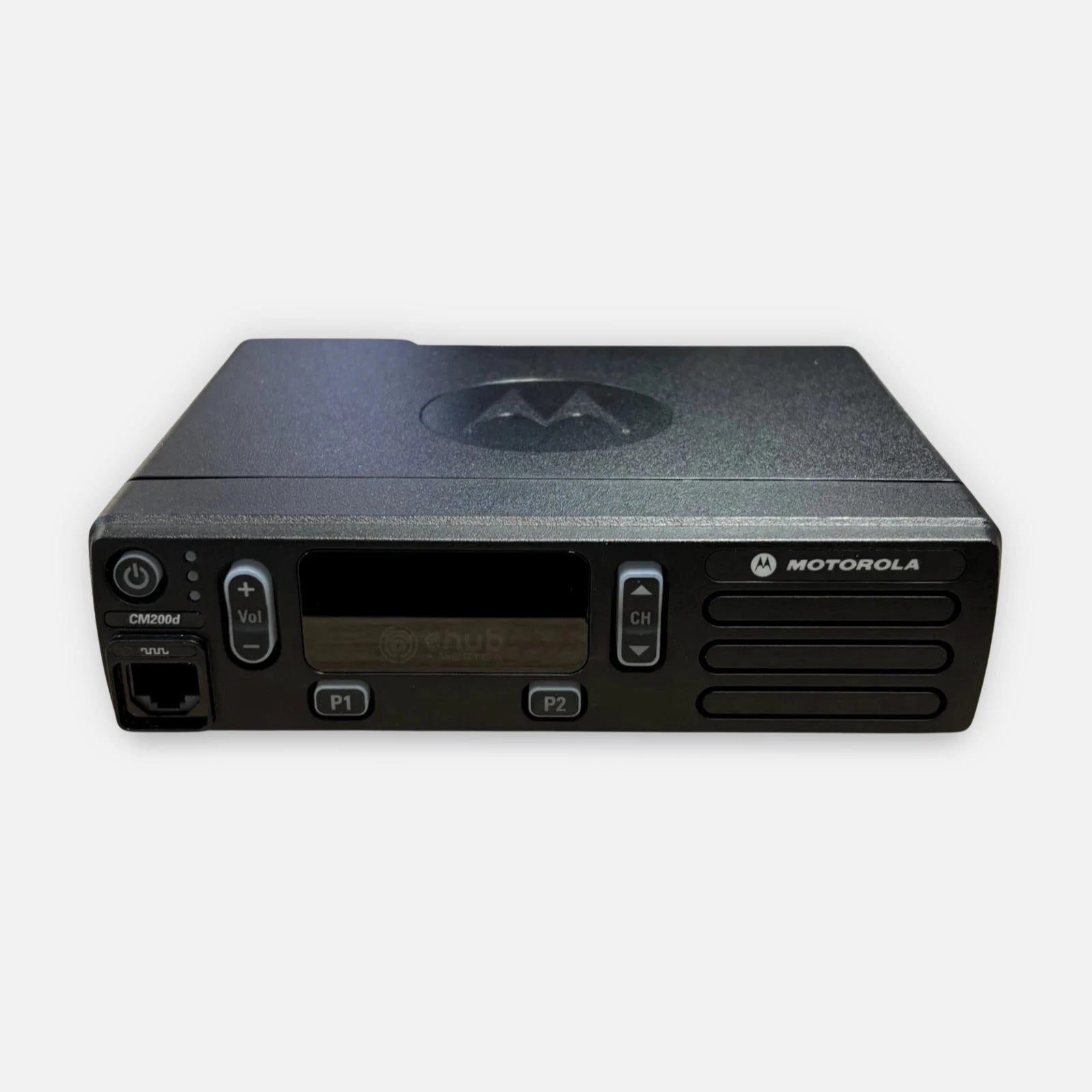

Motorola MOTOTRBO CM200d VHF 136–174 MHz 45W 16-Channel Mobile Radio
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Motorola MOTOTRBO CM200d VHF mobile radio supporting analog and DMR digital operation. Provides up to 45W transmit power, 16-channel capacity, and IP54-rated durability. Designed for reliable voice communications in commercial vehicle environments.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Two-Way Radios
VHF Mobile Radios
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• VHF frequency band: 136–174 MHz
• 16 channel capacity
• Analog and DMR digital capable
• Dual Capacity Direct Mode
• DMR standards compliant (ETSI TS 102 361-1, -2, -3)
• Transmit Interrupt (decode only)
• Basic Privacy
• Voice announcement
• Narrowband compliant
• Numeric display
• IP54 rated (with microphone sealing boot and rear accessory connector cover properly installed)
• Rugged to MIL-STD
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
GENERAL
• Frequency Range: 136–174 MHz
• Channel Capacity: 16
• Channel Spacing: 12.5 / 25 kHz
• Power Supply: 13.6 VDC (nominal vehicle supply)
• Frequency Stability: ±0.5 ppm
• Dimensions (H x W x L): 1.7 x 6.7 x 5.3 in (44 x 169 x 134 mm)
• Weight: 2.9 lb (1.3 kg)
TRANSMITTER
• RF Output Power: 1–25W (low) / 25–45W (high)
• FM Modulation:
– 12.5 kHz: 11K0F3E
– 25 kHz: 16K0F3E
• 4FSK Digital Modulation:
– 12.5 kHz Data: 7K60F1D
– 12.5 kHz Voice: 7K60F1E
– 12.5 kHz Voice & Data: 7K60F1W
• Adjacent Channel Power: 60 dB (12.5 kHz) / 70 dB (25 kHz)
• Conducted/Radiated Emissions: -36 dBm (<1 GHz), -30 dBm (>1 GHz)
• Audio Distortion: 3%
RECEIVER
• Analog Sensitivity (12 dB SINAD): 0.3 µV (typical)
• Digital Sensitivity (5% BER): 0.25 µV (typical), 0.19 µV (typical)
• Intermodulation (TIA603D): 75 dB
• Adjacent Channel Selectivity: 50 dB (12.5 kHz) / 70 dB (25 kHz)
• Spurious Rejection (TIA603D): 75 dB
AUDIO
• Rated Audio Output:
– 4W (internal)
– 7.5W (external 8 ohms)
– 13W (external 4 ohms)
• Hum and Noise: -40 dB (12.5 kHz) / -45 dB (25 kHz)
• Digital Vocoder: AMBE+2™
ENVIRONMENTAL
• Operating Temperature: -30°C to +60°C (-22°F to +140°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Dust and Water Intrusion: IP54
• ESD: IEC 61000-4-2 Level 3
• Thermal Shock / Humidity / Shock / Vibration: Per MIL-STD
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐒𝐇𝐈𝐏𝐏𝐈𝐍𝐆
• Handling time: up to 2 business days
• Orders often ship the same business day
• Orders are not shipped on weekends or holidays
• Carrier is seller-selected (UPS, USPS, FedEx, or equivalent)
• Shipping delays may occur during high-volume periods or carrier-related issues
Shipping Restrictions:
• Shipments to Alaska, Hawaii, Puerto Rico, or Guam may be cancelled due to cost
• Orders over $100 require a valid postal address
• Orders over $250 require insurance and signature confirmation
• International buyers are responsible for customs duties and import taxes
• Restricted destinations: Cuba, Iran, North Korea, Sudan, Syria, Russia
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐑𝐄𝐓𝐔𝐑𝐍𝐒
• Returns accepted within 30 days
• Item must be returned in the same condition as received
• Seller pays return shipping
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐃𝐀𝐓𝐀 𝐀𝐂𝐂𝐔𝐑𝐀𝐂𝐘 𝐃𝐈𝐒𝐂𝐋𝐀𝐈𝐌𝐄𝐑
Product details are based on available manufacturer information and may be subject to change without notice.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐁𝐔𝐋𝐊 / 𝐕𝐎𝐋𝐔𝐌𝐄 𝐁𝐔𝐘𝐄𝐑𝐒
For bulk orders or volume inquiries, please contact us to confirm availability and pricing.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
